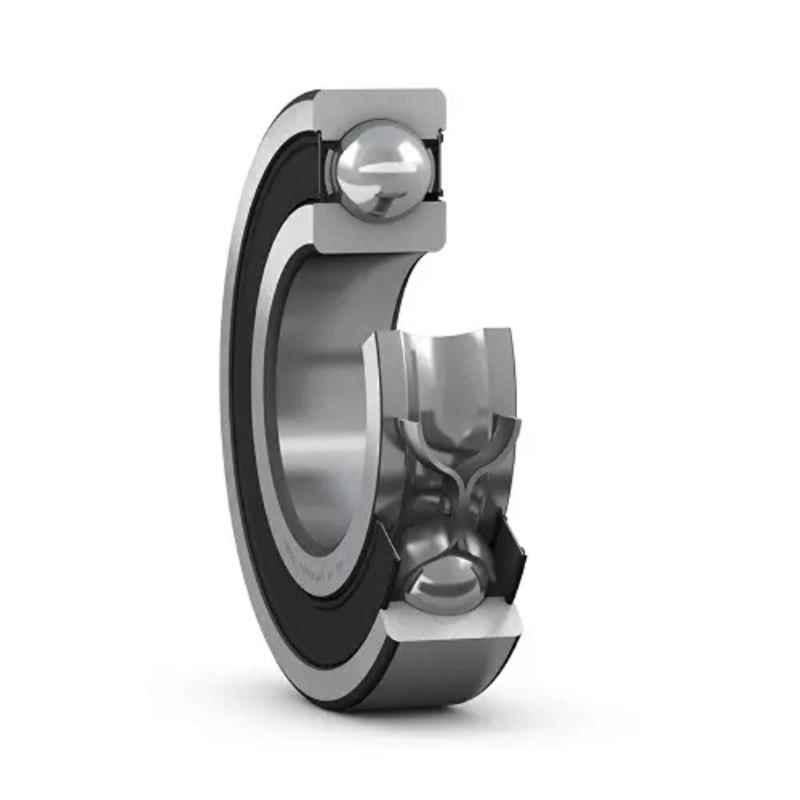

Imported 45x85x19mm Deep Groove Ball Bearing, 6209-2RS1

Name: Imported 45x85x19mm Deep Groove Ball Bearing, 6209-2RS1
Brand: Imported
SKU: MSNV5OOXWP7056
Price: 389 INR
Availability: OutOfStock

₹389 (Incl. of all taxes)

₹329 + ₹60 GST

MRP ₹880 55% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Imported
Bearing Number	6209-2RS1
Bore Diameter	45 mm
Outer Diameter	85 mm
Width	19 mm
Limiting Speed	5000 rpm
Additional Details	Fillet Radius: min. 1.1 mm Radius of Shaft/Housing Fillet: max. 1 mm Recess Diameter: 75.19 mm Housing Diameter: max. 78 mm Fatigue Load Limit: 0.915 kN Material: Steel Shaft Diameter: 52-57.5 mm Shoulder Diameter: 57.6 mm
Dynamic Load Rating	35.1 kN
Static Load Rating	21.6 kN
Type of Ball Bearing	Deep Groove
Weight	0.43 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the 'Imported 45x85x19mm Deep Groove Ball Bearing, 6209-2RS1' from our esteemed brand, Imported. This high-quality ball bearing falls under the category of Ball Bearings and is specifically designed with a deep groove for enhanced performance. With an impressive limiting speed of 5000 rpm, this bearing guarantees smooth and efficient operation. Weighing only 0.43 kg, it is a lightweight yet robust component suitable for various applications. The width of 19 mm ensures a perfect fit, while the static load rating of 21.6 kN exemplifies its durability and strength. Its bore diameter of 45 mm ensures accurate placement. Additionally, it features a fillet radius of minimum 1.1 mm, further enhancing its performance and reliability in demanding situations. Trust Imported and enjoy seamless operation with this exceptional deep groove ball bearing.

Browse through the extensive list of Ball Bearings at Moglix. Shop online for other Imported Ball Bearings. available at Moglix in the lowest price range.
