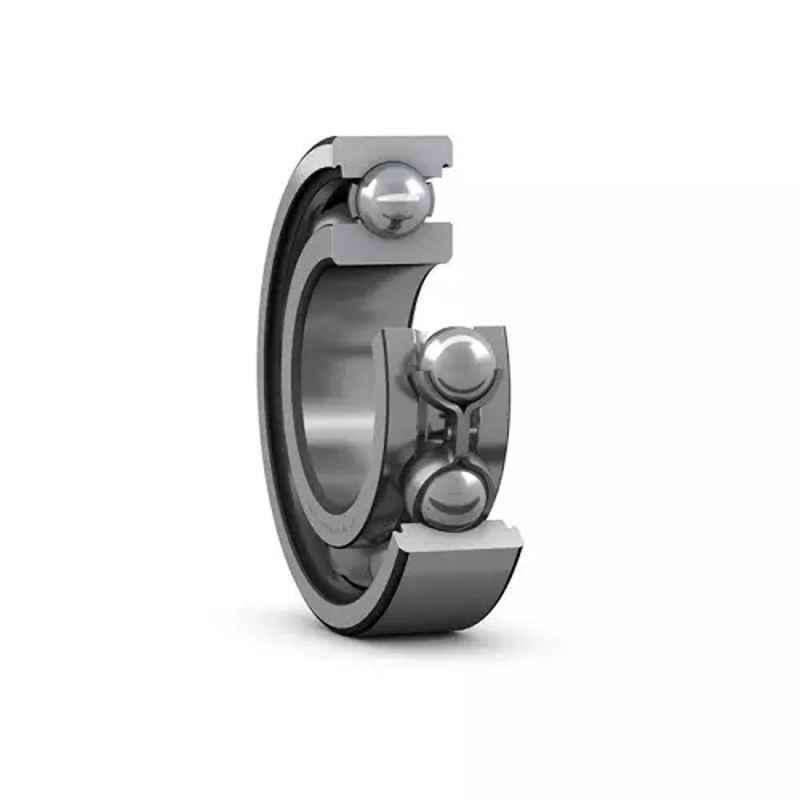

Imported 45x85x19mm Deep Groove Ball Bearing, 6209

Name: Imported 45x85x19mm Deep Groove Ball Bearing, 6209
Brand: Imported
SKU: MSNR50NOZP0251
Price: 339 INR
Availability: OutOfStock

₹339 (Incl. of all taxes)

₹287 + ₹52 GST

MRP ₹775 56% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Imported
Bearing Number	6209
Bore Diameter	45 mm
Outer Diameter	85 mm
Width	19 mm
Limiting Speed	11000 rpm
Additional Details	Fillet Radius: min. 1.1 mm Radius of Shaft/Housing Fillet: max. 1 mm Recess Diameter: 75.19 mm Housing Diameter: max. 78 mm Fatigue Load Limit: 0.915 kN Material: Steel Shaft Diameter: min. 52 mm Shoulder Diameter: 57.6 mm
Dynamic Load Rating	35.1 kN
Reference speed	17000 rpm
Static Load Rating	21.6 kN
Type of Ball Bearing	Deep Groove
Weight	0.42 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

The 'Imported 45x85x19mm Deep Groove Ball Bearing, 6209' is a high-quality ball bearing designed for various industrial applications. This ball bearing belongs to the 'Ball Bearings' category and is produced by the trusted brand 'Imported'. With its deep groove type, it ensures smooth and efficient operation. The bearing has a limiting speed of 11000 rpm, allowing it to handle high-speed applications. Weighing just 0.42 kg, it is lightweight yet sturdy. The width of 19 mm ensures stability and durability. The static load rating of 21.6 kN guarantees its ability to handle heavy loads. With a bore diameter of 45 mm, it fits perfectly in compatible machinery. Additional details include a fillet radius of a minimum of 1.1 mm. Upgrade your machinery with this reliable and efficient ball bearing.
