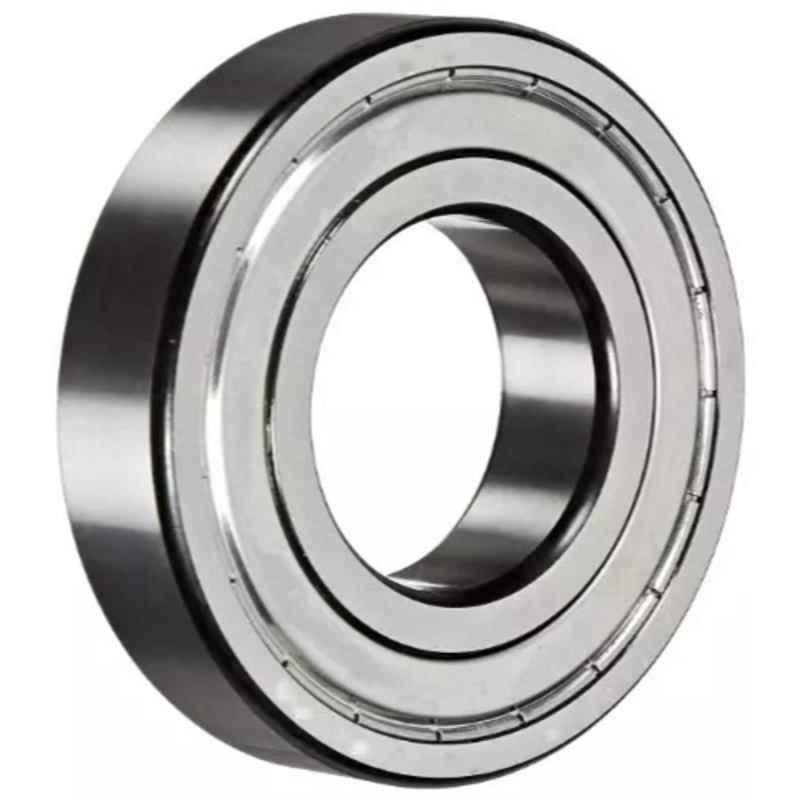

Imported 6003-Z Deep Groove Ball Bearing, 17x35x10mm (Pack of 5)

Name: Imported 6003-Z Deep Groove Ball Bearing, 17x35x10mm (Pack of 5)
Brand: Imported
SKU: MSNV5OOXWRG056
Price: 1058 INR
Availability: OutOfStock

₹529 (Incl. of all taxes)

₹448 ₹81 GST

MRP ₹1,197 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6003-Z
Bore Diameter	17 mm
Outer Diameter	35 mm
Width	10 mm
Basic Dynamic Load	6.37 kN
Basic Static Load	3.25 kN
Bearing Material	High Carbon Chromium Steel
Limiting Speed	28000 rpm
Additional Details	Fillet Radius: min. 0.3 mm Radius of Shaft/Housing Fillet: max. 0.3 mm Recess Diameter: 31.2 mm Housing Diameter: max. 33 mm Fatigue Load Limit: 0.137 kN Shaft Diameter: 19-22.9 mm Shoulder Diameter: 23 mm
Reference speed	45000 rpm
Type of Ball Bearing	Deep Groove
Weight	0.039 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the 'Imported 6003-Z Deep Groove Ball Bearing' – a must-have for all your mechanical needs. Designed with precision, this pack of 5 ball bearings is perfect for various applications. With a bore diameter of 17mm, it fits snugly in any assembly. The deep groove design ensures smooth operation, while the fillet radius of min. 0.3mm adds durability. Featuring a width of 10mm, these bearings are compact and lightweight, weighing only 0.039kg. Boasting a basic static load capacity of 3.25kN, they can handle heavy loads effortlessly. With a limiting speed of 28000rpm, these bearings provide efficient performance. Trust the brand 'Imported' for high-quality ball bearings that exceed expectations. Complete your mechanical projects successfully with the 'Imported 6003-Z Deep Groove Ball Bearing'.
