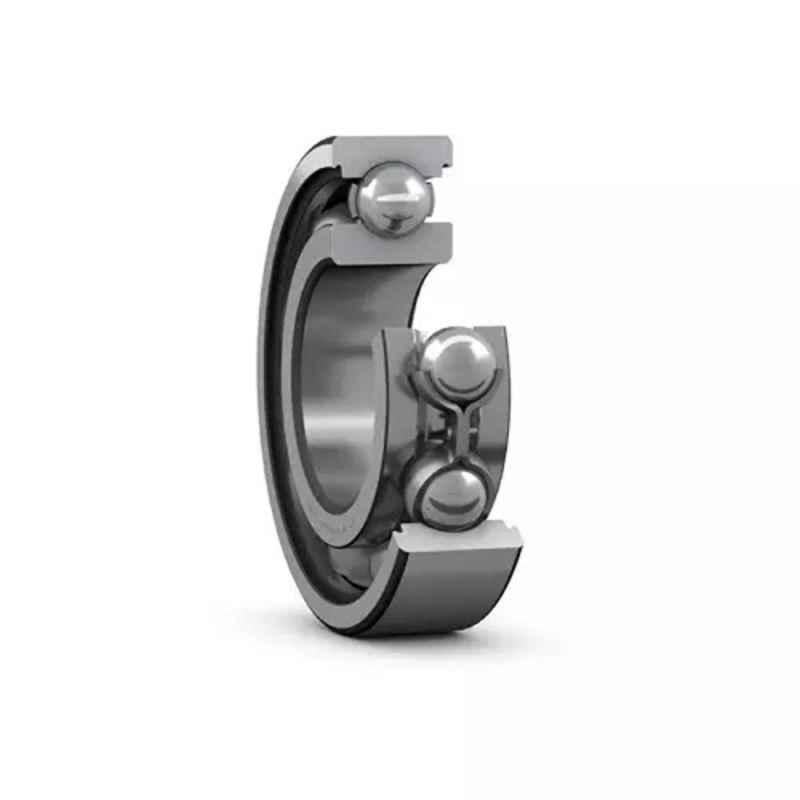

Imported 6303 17x47x14mm Deep Groove Automotive Ball Bearing

Name: Imported 6303 17x47x14mm Deep Groove Automotive Ball Bearing
Brand: Imported
SKU: MSNV5OOXMRR056
Price: 149 INR
Availability: OutOfStock

₹149 (Incl. of all taxes)

₹126 + ₹23 GST

MRP ₹306 51% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Imported
Additional Details	Material Code: P6409075 Fillet Radius: min. 1 mm Radius of Shaft/Housing Fillet: max. 1 mm Recess Diameter: 39.58 mm Housing Diameter: max. 41.4 mm Fatigue Load Limit: 0.275 kN Material: Steel Shaft Diameter: min. 22.6 mm Shoulder Diameter: 26.52 mm
Applications	Multiple Applications & Positions
Bearing Number	6303
Bore Diameter	17 mm
Cage type	Standard
Dynamic Load Rating	14.3 kN
Enclosure	No Seal
Limiting Speed	22000 rpm
Notes	Images are for Reference Purpose Only
Outer Diameter	47 mm
Reference speed	34000 rpm
Segment	Multiple Segments
Static Load Rating	6.55 kN
Type of Ball Bearing	Deep Groove
Vehicle Make	Multiple Manufacturer
Vehicle Model	Multiple Vehicle Model & Varients
Warranty	15 Months
Width	14 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	10, B.R.B.B. Road, Canning Street , Kolkata, West Bengal-700001, India
Importer Details	10, B.R.B.B. Road, Canning Street , Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Imported 6303 17x47x14mm Deep Groove Automotive Ball Bearing is a high-quality bearing that belongs to the Automotive Bearings category. Manufactured by the trusted brand Imported, this ball bearing is designed to withstand multiple applications and positions within the automotive industry. The deep groove type of ball bearing ensures smooth operation and reduced friction. With a static load rating of 6.55 kN, this bearing can bear heavy loads without compromising performance. Please note that the images provided are for reference purposes only. The limiting speed of 22000 rpm ensures high rotational speeds without compromising the bearing's durability. Additional details include the material code P6409075 and a width of 14 mm. This deep groove automotive ball bearing is a reliable choice for various automotive applications.

Browse through the extensive list of Automotive Bearings at Moglix. Shop online for other Imported Automotive Bearings. available at Moglix in the lowest price range.
