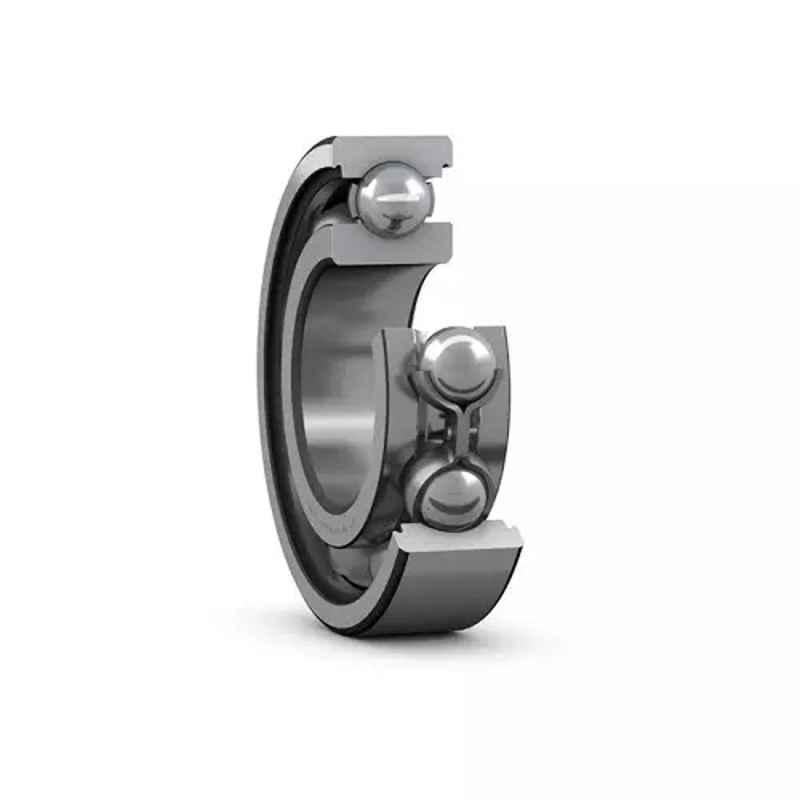

Imported 6313 Deep Groove Ball Bearing, 65x140x33mm

Name: Imported 6313 Deep Groove Ball Bearing, 65x140x33mm
Brand: Imported
SKU: MSNE5N8YOLXYKL
Price: 1419 INR
Availability: OutOfStock

₹1,419 (Incl. of all taxes)

₹1,202 + ₹217 GST

MRP ₹3,156 55% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Imported
Bearing Number	6313
Bore Diameter	65 mm
Outer Diameter	140 mm
Width	33 mm
Basic Dynamic Load	97.5 kN
Basic Static Load	60 kN
Limiting Speed	6700 rpm
Additional Details	Fillet Radius: min. 2.1 mm Radius of Shaft/Housing Fillet: Max. 2 mm Recess Diameter: 121.3 mm Housing Diameter: Max. 128 mm Fatigue Load Limit: 2.5 kN Shaft Diameter: min. 77 mm Shoulder Diameter: 88.35 mm
Reference speed	10000 rpm
Type of Ball Bearing	Deep Groove
Weight	2.11 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 6313 Deep Groove Ball Bearing, a top-quality product designed to meet your most demanding industrial needs. This ball bearing boasts a diameter of 65 mm, providing durability and longevity for a wide range of applications. With a basic static load of 60 kN, it offers exceptional strength and performance, ensuring reliable operation under heavy loads. Weighing only 2.11 kg, this compact bearing is easy to handle and install. Its 33 mm width accommodates various machinery requirements, while its limiting speed of 6700 rpm guarantees efficient and smooth operations. Additionally, the fillet radius of this ball bearing measures a minimum of 2.1 mm, enhancing its overall durability and effectiveness. Choose Imported as your trusted brand and equip your machinery with this exceptional deep groove ball bearing, perfect for a wide range of industrial applications.
