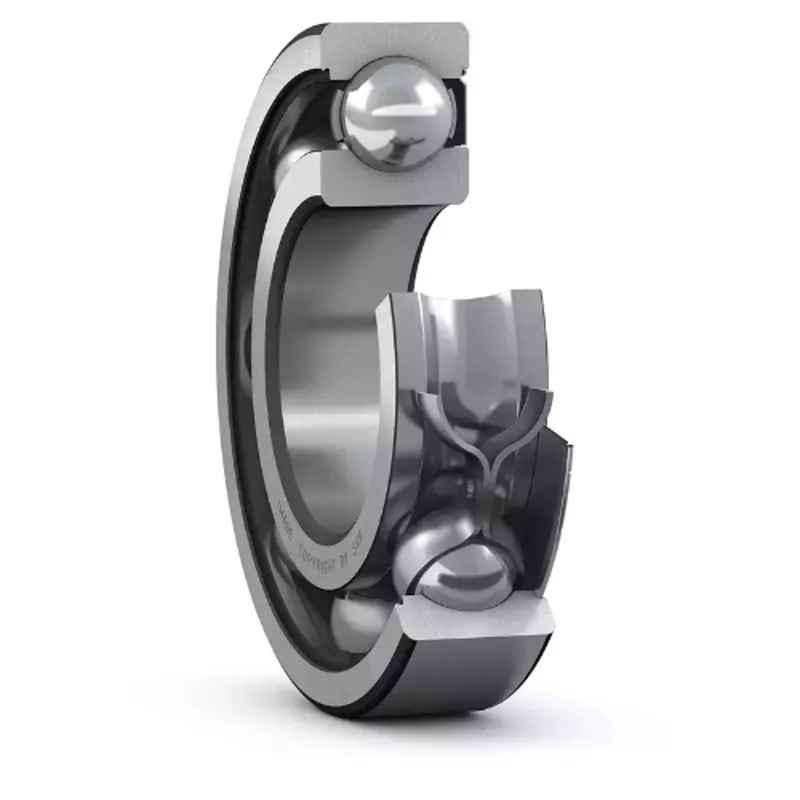

Imported 80x170x39mm Single Row Deep Groove Ball Bearing, 6316-2RS1

₹9,522 (Incl. of all taxes)

₹8,069 + ₹1,453 GST

MRP ₹20,049 52% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand
Bearing Number
6316-2RS1
Bore Diameter
80 mm
Outer Diameter
170 mm
Width
39 mm
Limiting Speed
2600 rpm
Additional Details
Fillet Radius: min. 2.1 mm
Radius of Shaft/Housing Fillet: max. 2 mm
Recess Diameter: 146.9 mm
Housing Diameter: max. 158 mm
Fatigue Load Limit: 3.25 kN
Material: Steel
Shaft Diameter: 92-107.9 mm
Shoulder Diameter: 108 mm
Dynamic Load Rating
130 kN
Number of Row
Single Row
Static Load Rating
86.5 kN
Type of Ball Bearing
Deep Groove
Weight
3.7 kg
Country of origin
China
Manufacturer Details
No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details
No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details
10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name
Ball Bearing
Dimensions LxWxH
10x10x10 cm
Weight
0.2 kg
Show All Specifications

Product Details

Introducing the 'Imported 80x170x39mm Single Row Deep Groove Ball Bearing, 6316-2RS1', a high-quality product designed for superior performance in various industrial applications. This ball bearing falls under the category name 'Ball Bearings' and is proudly brought to you by the brand 'Imported'. With its deep groove type, this bearing ensures optimal efficiency and smooth operation in demanding conditions.

The limiting speed of this ball bearing is an impressive 2600 rpm, allowing for high-speed rotation and increased productivity. Its single row design provides enhanced load-carrying capacity and unmatched stability. With a width of 39 mm, this bearing offers exceptional durability and reliability.

Weighing at 3.7 kg, this ball bearing is built to withstand heavy-duty tasks. The 80 mm bore diameter ensures a secure fit and precise alignment, reducing the risk of mechanical failures.

With a static load rating of 86.5 kN, this ball bearing delivers exceptional strength and durability, making it ideal for challenging environments. Whether it be in mechanical, automotive, or manufacturing industries, this ball bearing guarantees optimal performance and longevity.

Upgrade your equipment with the 'Imported 80x170x39mm Single Row Deep Groove Ball Bearing, 6316-2RS1' today and experience unmatched reliability, performance, and efficiency.

Browse through the extensive list of Ball Bearings at Moglix. Shop online for other Imported Ball Bearings. available at Moglix in the lowest price range.
