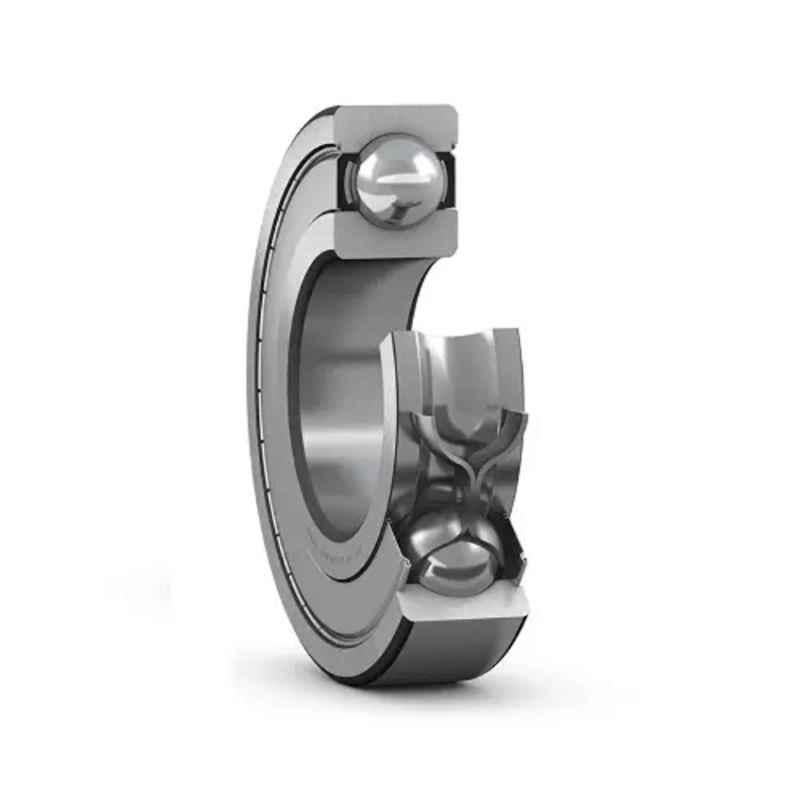

Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z (Pack of 10)

Name: Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z (Pack of 10)
Brand: Imported
SKU: MSNV5OOXWXYV56
Price: 1618 INR
Availability: OutOfStock

₹809 (Incl. of all taxes)

₹685 ₹124 GST

MRP ₹1,809 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	628-2Z
Bore Diameter	8 mm
Outer Diameter	24 mm
Width	8 mm
Bearing Material	Steel
Limiting Speed	32000 rpm
Additional Details	Fillet Radius: min. 0.3 mm Radius of Shaft/Housing Fillet: max. 0.3 mm Recess Diameter: 21.2 mm Housing Diameter: max. 21.6 mm Fatigue Load Limit: 0.071 kN Shaft Diameter: 10.4-14.4 mm Shoulder Diameter: 14.45 mm
Dynamic Load Rating	3.9 kN
Reference speed	63000 rpm
Static Load Rating	1.66 kN
Type of Ball Bearing	Deep Groove
Weight	0.018 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z (Pack of 10), a top-quality product designed for smooth performance in various applications. As part of the Ball Bearings category, this deeply grooved ball bearing ensures exceptional stability and reliable operation. With the renowned brand name Imported, you can trust in its durability and precision. The Deep Groove type guarantees optimal functionality, while the impressive limiting speed of 32000 rpm ensures swift and efficient performance. Weighing just 0.018 kg, this compact yet sturdy bearing takes up minimal space while delivering maximum results. The 8 mm width and steel bearing material further enhance its strength and longevity. Boasting a static load rating of 1.66 kN, this bearing can withstand heavy-duty requirements effortlessly. Its 8 mm bore diameter precisely accommodates various applications. Upgrade your machinery with this versatile, high-quality Imported ball bearing today.
