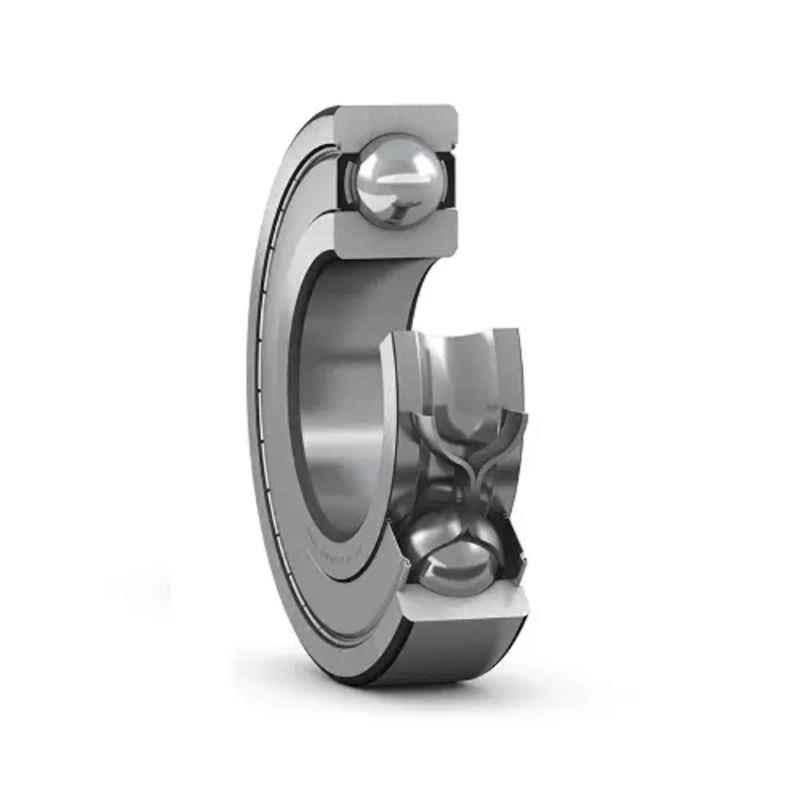

Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z

Name: Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z
Brand: Imported
SKU: MSN8580ZD1ZL92
Price: 79 INR
Availability: OutOfStock

₹79 (Incl. of all taxes)

₹66 + ₹13 GST

MRP ₹181 56% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	628-2Z
Bore Diameter	8 mm
Outer Diameter	24 mm
Width	8 mm
Limiting Speed	32000 rpm
Additional Details	Fillet Radius: min. 0.3 mm Radius of Shaft/Housing Fillet: max. 0.3 mm Recess Diameter: 21.2 mm Housing Diameter: max. 21.6 mm Fatigue Load Limit: 0.071 kN Material: Steel Shaft Diameter: 10.4-14.4 mm Shoulder Diameter: 14.45 mm
Dynamic Load Rating	3.9 kN
Reference speed	63000 rpm
Static Load Rating	1.66 kN
Type of Ball Bearing	Deep Groove
Weight	0.018 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z, a must-have for any machinery requiring reliable and efficient ball bearings. Falling under the Ball Bearings category, this exceptional product, brought to you by the trusted brand Imported, is perfect for a wide range of applications. Specifically designed as a Deep Groove ball bearing type, it boasts a remarkable limiting speed of 32000 rpm. With a compact weight of just 0.018 kg, this bearing ensures minimal stress on your machinery. The width of 8 mm guarantees a secure fit, while the impressive static load rating of 1.66 kN provides ultimate durability. Its precise bore diameter of 8 mm guarantees a perfect fit for your equipment. Additional details include a fillet radius of min. 0.3 mm, ensuring optimum performance at all times. Choose the Imported 8x24x8mm Deep Groove Ball Bearing, 628-2Z, for superior quality and exceptional performance in any application. The perfect choice for professionals who demand the best.
