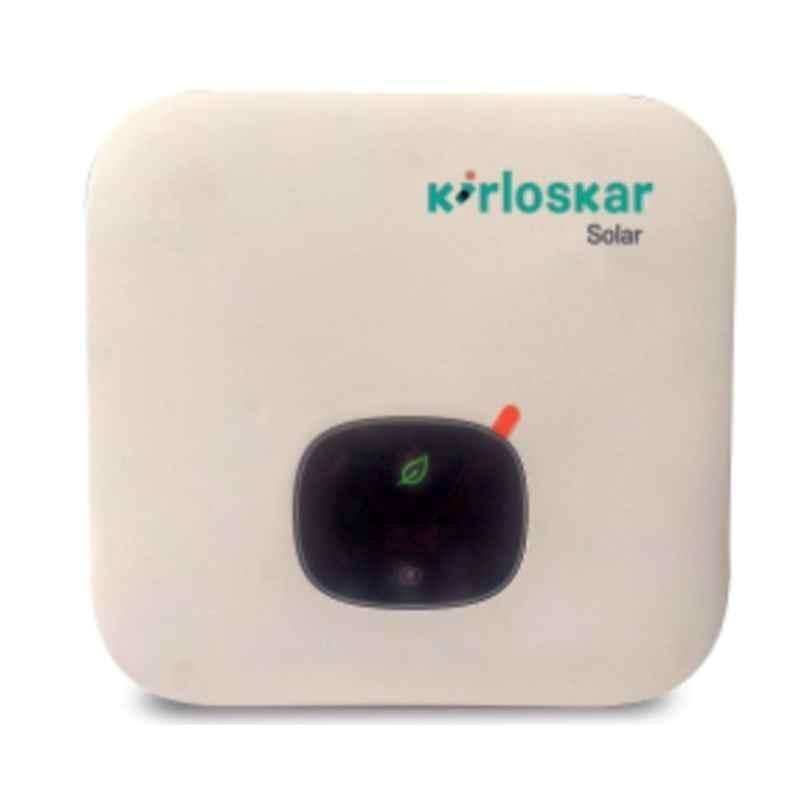

Kirloskar 5000VA On Grid String Solar Inverter, KSG-I-5KN22

Name: Kirloskar 5000VA On Grid String Solar Inverter, KSG-I-5KN22
Brand: Kirloskar
SKU: MSN85804GVZ492
Price: 40297 INR
Availability: OutOfStock

₹40,297 (Incl. of all taxes)

₹38,380 ₹1,917 GST

MRP ₹55,649 27% OFF

AVAILABLE ON REQUEST

Apparent Power Measurement (Kva)

5000 VA
3000 VA

About This Product

Key Features

Wide Input Voltage, Dc Input Voltage up to 1100V.
Transformer less, Low Noise Technique, Compact Design & Easy Installation.
USB/485 Communication Interface & Wide Input Voltage Range.
Latest Dual MPPT Technology, Internal Dc Switch, Touch Key, Oled Display & Bis Compliant.

Show All Key Features

Product Specifications

Brand	Kirloskar
AC Connection Type	Single Phase
AC Frequency	50-60 Hz
Altitude	4000 m
Apparent Power Measurement (Kva)	5000 VA
Efficiency	Maximum: 98.40 % European:97.50 % MPPT: 99.90 %
Input Power	7000 W
Item Code	KSG-I-5KN22
Max DC Voltage	550 V
Max. Input Current	13.5 Amp
Mppt Voltage Range	80-550 V DC
Nominal AC Voltage Range	180-280 V
Nominal Power	Output: 5000 W
Nominal Voltage	360 V DC
Notes	Images are for Reference Purpose Only
Operating Temperature	-25 to +60 deg C
Output Current	22.7 Amp
Protection Class	IP65
Relative Humidity	0-100 %
Short Circuit Current	16.9 Amp
THDI	<3 %
Voltage	100 V DC
Country of origin	India
Manufacturer Details	Kirloskar Solar Technologies Pvt. Ltd, A Kirloskar Group Company, Laxman Rao, Kirloskar Road, Khadki, Pune-411003
Packer Details	Kirloskar Solar Technologies Pvt. Ltd, A Kirloskar Group Company, Laxman Rao, Kirloskar Road, Khadki, Pune-411003
Common/Generic Name	Solar Inverter
Dimensions LxWxH	37.5x35x16 cm
Weight	10.8 kg

Show All Specifications

Product Details

The Kirloskar 5000VA On Grid String Solar Inverter, KSG-I-5KN22, is a top-of-the-line solar inverter designed for maximum performance and efficiency. With an output current of 22.7 Amp and an operating temperature range of -25 to +60 deg C, this inverter is perfect for a wide range of applications. The inverter features a nominal AC voltage range of 180-280 V, with an efficiency rating of up to 98.40%. It also boasts a wide input voltage range, DC input voltage up to 1100V, and dual MPPT technology for optimal energy conversion. With a compact design, easy installation, and advanced features like USB/485 communication interface, touch key, and OLED display, the Kirloskar 5000VA On Grid String Solar Inverter is a reliable and efficient choice for any solar power system.
