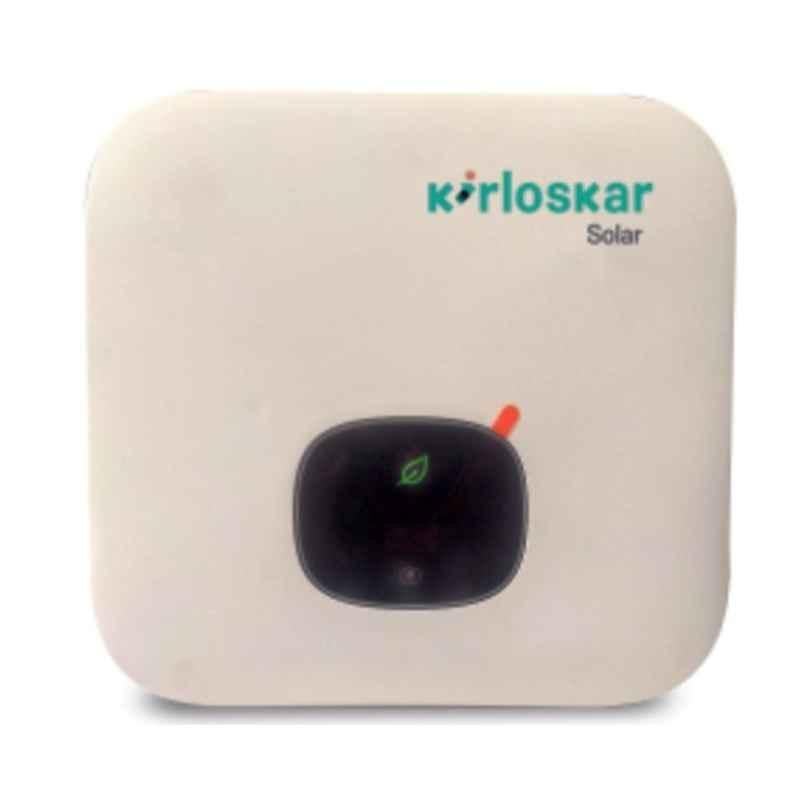

Kirloskar 66600VA On Grid String Solar Inverter, KSG-III-60KN22-MC

Name: Kirloskar 66600VA On Grid String Solar Inverter, KSG-III-60KN22-MC
Brand: Kirloskar
SKU: MSNZ526WQ72M9X
Price: 298484 INR
Availability: OutOfStock

₹298,484 (Incl. of all taxes)

₹284,265 + ₹14,219 GST

MRP ₹422,302 29% OFF

AVAILABLE ON REQUEST

Apparent Power Measurement (Kva)

66600 VA
11000 VA
16500 VA
22000 VA
44400 VA
5500 VA
55500 VA

About This Product

Key Features

Wide Input Voltage, Dc Input Voltage up to 1100V.
Transformer less, Low Noise Technique, Compact Design & Easy Installation.
USB/485 Communication Interface & Wide Input Voltage Range.
Latest Dual MPPT Technology, Internal Dc Switch, Touch Key, Oled Display & Bis Compliant.

Show All Key Features

Product Specifications

Brand	Kirloskar
AC Frequency	50-60 Hz
Altitude	4000 m
Apparent Power Measurement (Kva)	66600 VA
Efficiency	Maximum: 98.80 % European:98.50 % MPPT: 99.90 %
Input Power	90000 W
Item Code	KSG-III-60KN22-MC
Max DC Voltage	1100 V
Max. Input Current	50 Amp
Mppt Voltage Range	200-1000 V DC
Nominal AC Voltage Range	340-440 V
Nominal Power	Output: 60000 W
Nominal Voltage	600 V DC
Notes	Images are for Reference Purpose Only
Operating Temperature	-25 to +60 deg C
Output Current	96.6 Amp
Protection Class	IP65
Relative Humidity	0-100 %
Short Circuit Current	55 Amp
THDI	<3 %
Voltage	250 V DC
Country of origin	India
Manufacturer Details	Kirloskar Solar Technologies Pvt. Ltd, A Kirloskar Group Company, Laxman Rao, Kirloskar Road, Khadki, Pune-411003
Packer Details	Kirloskar Solar Technologies Pvt. Ltd, A Kirloskar Group Company, Laxman Rao, Kirloskar Road, Khadki, Pune-411003
Common/Generic Name	Solar Inverter
Dimensions LxWxH	68x50.8x28.1 cm
Weight	52 kg

Show All Specifications

Product Details

Harness the power of the sun with the Kirloskar 66600VA On Grid String Solar Inverter. This high-performance inverter boasts a maximum efficiency of 98.80% and features European and MPPT efficiencies of 98.50% and 99.90% respectively, ensuring optimal energy conversion. With a wide input voltage range, DC input voltage up to 1100V, and dual MPPT technology, this inverter is designed for maximum energy production. The compact design, low noise operation, and easy installation make it a breeze to set up and use. Plus, with features like a touch key, OLED display, and BIS compliance, you can monitor and manage your solar system with ease. Take your solar power system to the next level with the Kirloskar KSG-III-60KN22-MC Solar Inverter.
