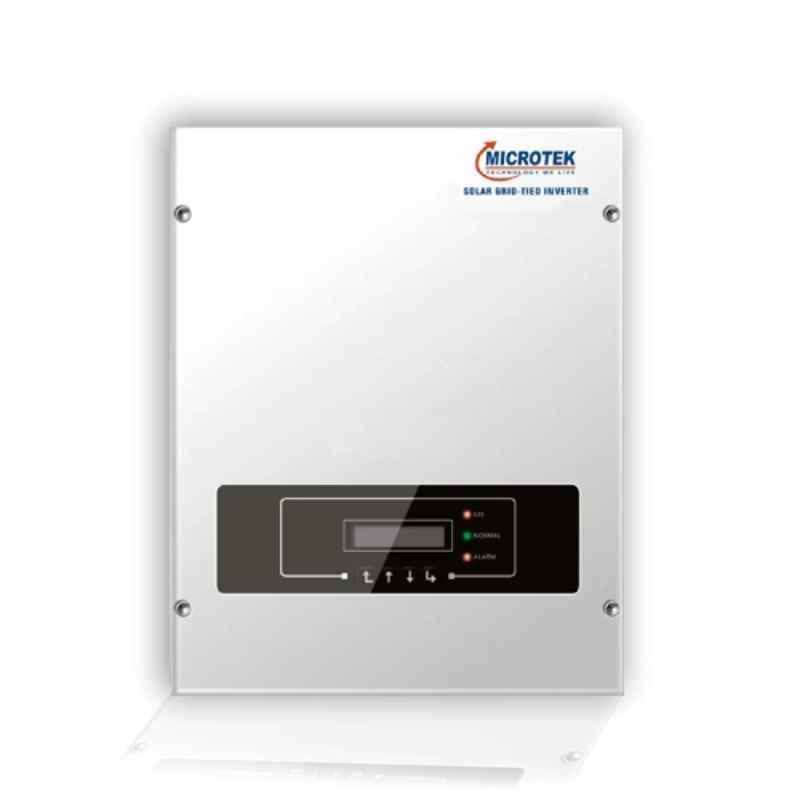

Microtek GTI 40KW-M32 40000VA Grid Tied Solar Inverter, 899-360-40KV

Name: Microtek GTI 40KW-M32 40000VA Grid Tied Solar Inverter, 899-360-40KV
Brand: Microtek
SKU: MSN153V8JY0JK3
Price: 183179 INR
Availability: OutOfStock

₹183,179 (Incl. of all taxes)

₹174,456 ₹8,723 GST

MRP ₹399,000 54% OFF

AVAILABLE ON REQUEST

Power Rating

40 kW
12 kW
15 kW
30 kW
4 kW
5.5 kW
50 kW
8.8 kW

About This Product

Key Features

Intelligent Grid Management.
Plug & Play Easy Installation & Maintenance.
Wide Input voltage Operating Range.
System Monitoring & Low Maintenance Cost.
LCD+LED Display, Interface Selection.
Wi-Fi/RS485 for more flexible configuration.
Real Time Precise MPPT Algorithm for Best Performance.
Reactive Power Capability & Self power Reducer when over Frequency.

Show All Key Features

Product Specifications

Brand	Microtek
Power Rating	40 kW
Additional Details	Active Power: 0-100% 1 for Each MPPT
Altitude	3000 m
Certification	IRC 62116, IEC 61727, IEC 61683, IEC 60068(1.2.14.30), IEC 62109-1/2, CE, CGC, AS4777, AS3100, VDE4107,C10-C11, G83/59 (More Certifications available as per requirement)
Customer Care Number	7283838383
Dimensions	56.4x76.7x29 cm
Display Type	LCD
Efficiency	Max: 98.70% European Weighted: 98.50% Self Consumption at Night: <1 W Feed in Start Power: 45 W MPPT: >99.9%
Frequency Range	Grid: 47-53 Hz & 57-63 Hz (According to Local Standard)
Input Power	Max: 44000 W
Input Range	MPPT: 250-960 V Full Load DC: 570-800 V
Input Voltage	Max: 1000 V Start-Up & Rated: 350 & 700 V
Item Code	899-360-40KV
Max input current per MPPT (A)	35 Amp
Model	GTI 40KW-M32
No Of MPPT	Independent: 2
Noise Level	<45 dB
Operating Humidity	0-100% Non-Condensing
Operating Temperature	-25 to +60 deg C
Output Current	Max: 48 Amp
Output Frequency (Hz)	Nominal: 50-60 Hz
Output Power	40000 VA
Output Voltage	Nominal Grid: 3/N/PE, 3/PE, 277-480 V AC & 422-528 V(Ph-Ph) Grid: 244-304 V (Ph-N) (According to Local Standard)
Phase	Three Phase
Power	40000 W
Power Factor	Output: <3%x1 (Adjustable+0.8)
Protection Class	IP65
Weight	50 kg
Country of origin	India
Manufacturer Details	Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444
Packer Details	Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444
Common/Generic Name	Solar Inverter
Dimensions LxWxH	56.4x76.7x29 cm
Weight	50 kg

Show All Specifications

Product Details

Enhance your solar energy system with the Microtek GTI 40KW-M32 40000VA Grid Tied Solar Inverter. With a power rating of 40 kW and intelligent grid management capabilities, this inverter ensures optimal performance. The Plug & Play design allows for easy installation and maintenance, while the wide input voltage operating range offers flexibility. Monitor your system with the LCD+LED display and Wi-Fi/RS485 interface selection. The real-time precise MPPT algorithm maximizes energy output, while the reactive power capability ensures efficient operation. Upgrade to the Microtek GTI for reliable, cost-effective solar energy utilization.
