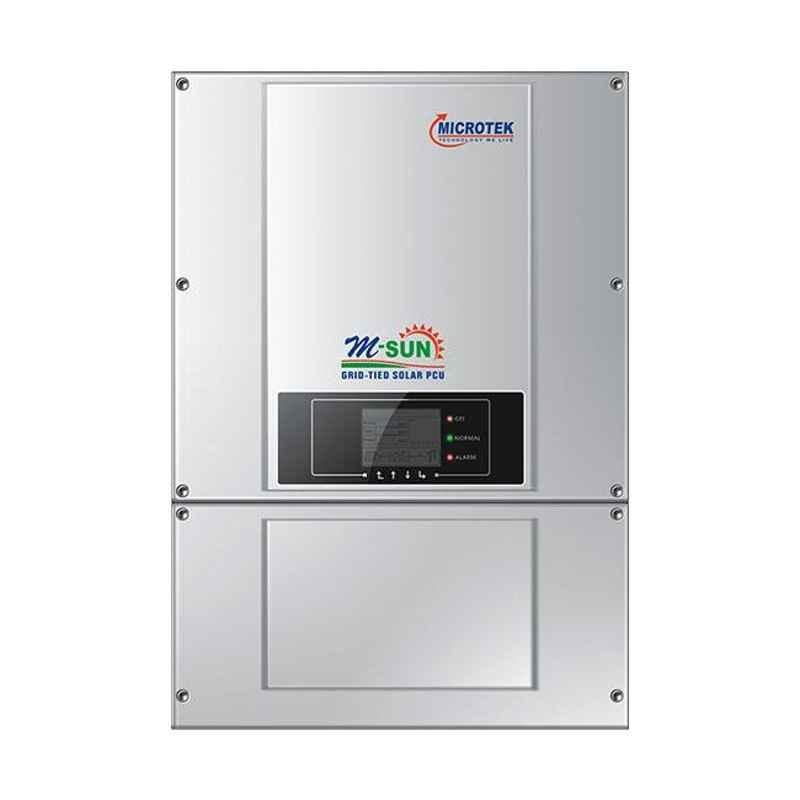

Microtek M-Sun 20kW Solar Grid-Tied System, GT20KW

Name: Microtek M-Sun 20kW Solar Grid-Tied System, GT20KW
Brand: Microtek
SKU: MSN457MP1DD19J
Price: 117359 INR
Availability: OutOfStock

₹117,359 (Incl. of all taxes)

₹111,770 ₹5,589 GST

MRP ₹249,000 52% OFF

AVAILABLE ON REQUEST

Power Rating

20 kW
1 kW
11 kW
2 kW
3 kW
5 kW

About This Product

Key Features

Max 98.2% Efficiency, Real Time Precise MPPT Algorithm for Best Performance.
Plug & Play Easy Installation & Maintenance, IP65 for Free Site Selection.
4 inch LCD Display, Interface Selection, RS485 for System Monitoring.
Intelligent Grid Management, Reactive Power Capability & Self Power Reducer when Over Frequency. Remote Active/Reactive Power Limit Control.
SD Card inside for Data Storage Upto 25 Years.
Topology: Transformer less.
THDi/Power Factor/Grid Connection: <3%/1(Adjustable±0.8)/Three Phase.
Power Limit Export: Zero Export or Adjustable Power Limit Export (Optional).

Show All Key Features

Product Specifications

Brand	Microtek
Power Rating	20 kW
Altitude	2000 m
Current	Input Current per MPPT: 24 Amp AC Output: 29 Amp Per Phase
Customer Care Number	7283838383
Dimensions	707x492x240 mm
Efficiency	98.2% MPPT: >99.9%
Frequency	Nominal: 50-60 Hz Grid: 47-53 Hz & 57-63 Hz (According to Local Standard)
Humidity Range	0 to Max 95% Non-Condensing
Input Voltage	1000 V
Model No	MICROTEK PCU GT20KW
Noise Level	<45dB
Number of MPPT	2 MPPT
Operating Temperature	-25 to 60 deg C
Power	Input: 20800 W Output: 20000 VA
Protection	IP65 DC Reverse Polarity Protection, DC Switch, Protection Class/Overvoltage Category: (I/III), Input/Output SPD(II): Optional, Anti-islanding, RCMU & Ground Fault Monitoring
Voltage	Start-up I/P: 350 V Rated I/P: 600 V MPPT Voltage Range: 250-960 V Full Load DC Voltage Range: 430-850V Nominal Grid: 3/N/PE, 220-415 V
Weight	48 kg
Country of origin	India
Manufacturer Details	Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444
Packer Details	Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444
Common/Generic Name	Solar Grid-Tied System
Dimensions LxWxH	707x492x240 mm
Weight	48 kg

Show All Specifications

Product Details

Microtek M-Sun 20kW Solar Grid-Tied System, GT20KW is a premium quality product from Microtek . Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All Microtek M-Sun 20kW Solar Grid-Tied System, GT20KW are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Microtek M-Sun 20kW Solar Grid-Tied System, GT20KW, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Microtek products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Microtek Solar Inverter .
