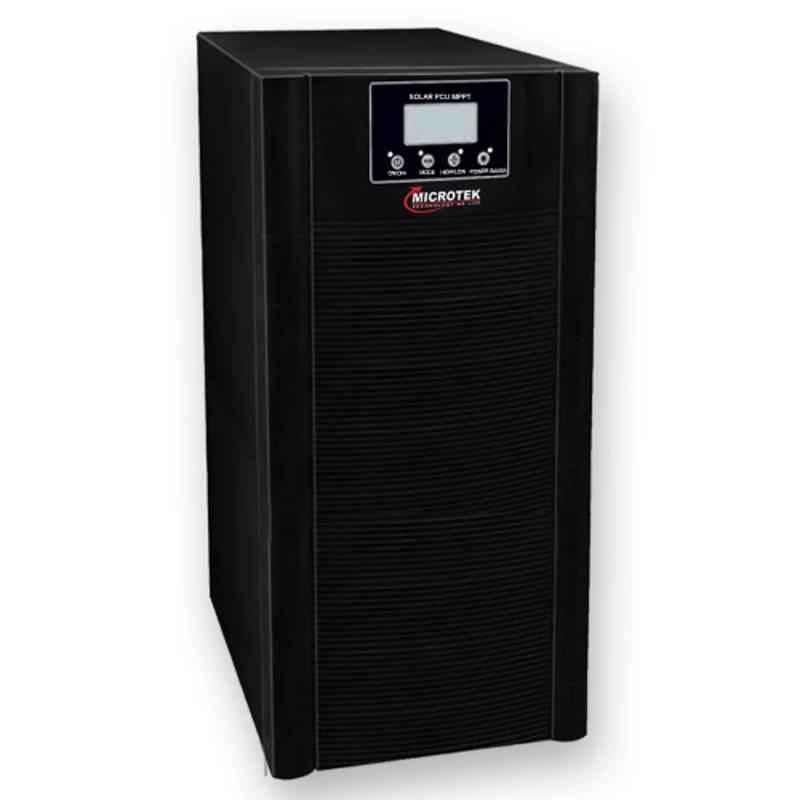

Microtek MPPT 10070 10kVA 120V Pure DSP Sine Wave Solar PCU, 899-511-1002
(4 Reviews)
₹113,248 (Incl. of all taxes)
₹95,973 ₹17,275 GST
MRP ₹194,990 41% OFF
About This Product
Key Features
User Friendly Smart Multicolour LCD Display.
Battery Types Support : Tubular, SMF & Flat Plate.
Remote Monitoring Thru WI-FI/LAN/GPRS (Optional Feature).
Smart LCD Displays Total Solar Energy Generation (in KWH).
Provision for Setting Critical Parameters of Solar Thru Smart Front Panel.
High Efficiency Microtek Solar TRUE MPPT PCU are Based on DSP Technology.
Smart Logic Built in Software to Maintain Battery Gravity & Enhance Battery Life.
Advance Real Time Clock Technology Ensure Optimum Saving of Electronic Bill.
State of the Art & Advanced MPPT Technology Ensure 30% More Energy Generation Form Solar PV.
Show All Key Features
Product Specifications
Brand | |
Technology | Most Advanced Real Time Clock: RTC ensures Optimum Saving of Solar Energy |
Charging Current | Max. Battery from PV: 40 Amp, (Default) Settable 5-50 Amp for Battery Max. Battery from Grid: 16 Amp Default (Settable 5-16 Amp) |
Customer Care Number | 7283838383 |
Dimensions | 48.4x27.7x77.5 cm |
Efficiency | Peak Charge Controller: 98% |
Input Current | Maximum PV: 34 + 1 Amp ( 17 Amp, Channel, Total Channel-2 ) |
Input Power | Maximum Solar: 9250 W |
Input Range | Grid Normal Mode: 100-280 V & Grid UPS Mode: 180-260 V |
Input Voltage | Maximum Solar: 350 VOC |
Item Code | 899-511-1002 |
Model | PCU MPPT 10070 / 120V |
Nominal Voltage | Battery: 120 V |
Operating Humidity | 5-95% Non Condensable |
Operating Temperature | 0-45 deg C |
Output Frequency (Hz) | 50+0.1% Hz |
Output Power | Continuous: 8000 W |
Output Voltage | Inverter at Nominal DC: 230 V +3% |
Output Waveform | Pure DSP Sine Wave |
Phase | Output: 1 Phase |
Protection | Battery Over-Voltage, Overcharge, PV Reverse Polarity, PV Reverse Current Flow, PV Surge, Overload, Inverter Over Temperature & Load Short Circuit Protections DC Input Volt. High Cut Protection/Recover |
Rated Capacity | 10 kVA |
THD | <3% (at Linear Load) |
UPS Transfer Time (ms) | Normal Mode: Mains to Back-up <40 ms Back-up to Mains <15ms & UPS Mode: Mains to Back-up <12 ms Back-up to Mains <10 ms |
Voltage Range | MPPT Operating: 180-280 V |
Weight | 78.67 kg |
controller | PV Topology: MPPT |
Country of origin | India |
Manufacturer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Packer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Common/Generic Name | Solar PCU |
Dimensions LxWxH | 48.4x27.7x77.5 cm |
Weight | 78.67 kg |
Show All Specifications
Product Details
The Microtek MPPT 10070 10kVA 120V Pure DSP Sine Wave Solar PCU is a top of the line solar inverter that is perfect for those who want the best of the best. This inverter features a pure DSP sine wave that is perfect for those who want a clean and efficient power source. Looking for an inverter that can handle your solar needs? Check out the Microtek inverter. With an operating temperature of 0-45 degrees C and a weight of 78.67 kg, this inverter is perfect for your solar needs. The dimensions are 48.4x27.7x77.5 cm and the phase output is 1 phase. The output voltage is Inverter at Nominal DC: 230 V +3%. The efficiency is Peak Charge Controller: 98%.
Browse through the extensive list of Solar Inverter at Moglix. Shop online for other Microtek Solar Inverter. available at Moglix in the lowest price range.
Read More
Microtek MPPT 10070 10kVA 120V Pure DSP Sine Wave Solar PCU, 899-511-1002
Verified Purchase
Subhajit Roy
September 6, 2022
I am very happy with my microtek solar inverter
This is an excellent product. i have been using it for the past few months and it has worked perfectly. there are no issues with it whatsoever. it is very easy to use and the customer service is excellent. i would highly recommend this product to anyone.
Verified Purchase
Anand Karwir
August 15, 2022
Microtek solar inverter is awesome
I am using microtek mppt 10070 10kva 120v pure dsp sine wave solar pcu for the past 6 months and it is working great. no issues faced so far. the product is very efficient and easy to use. i am highly satisfied with its performance.
VIEW 2 MORE HELPFUL REVIEW
Frequently Asked Questions
Displaying Questions 2 / 4
Q1:What are its Dimensions LxWxH ?
Ans:
Its Dimensions are 48.4x27.7x77.5 cm
Q2:What is its Nominal Voltage ?
Ans:
Its Nominal Voltage is 120 V
VIEW 2 MORE FAQs
