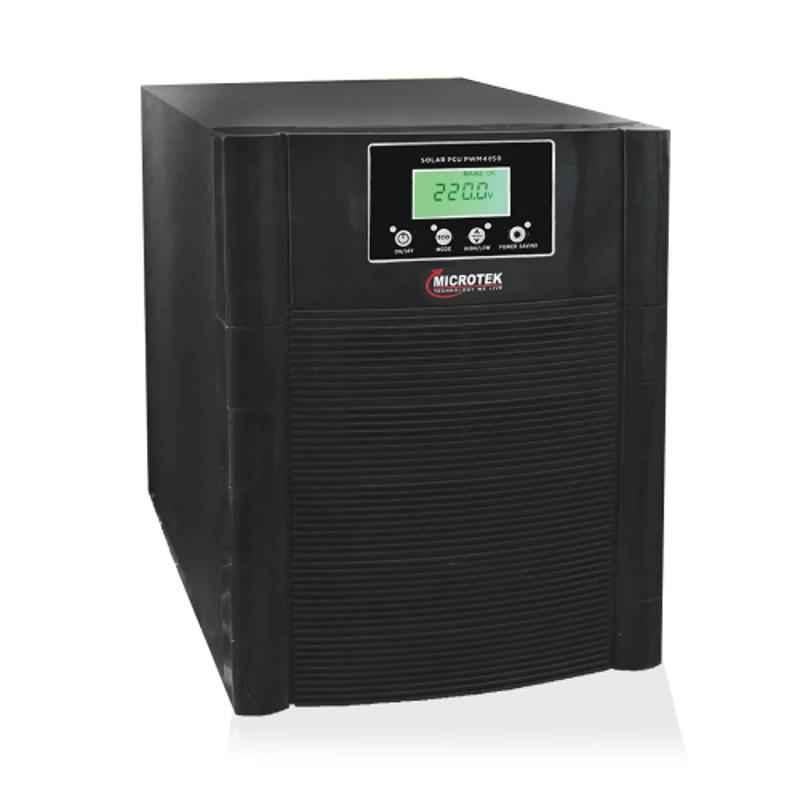

Microtek PWM 4050 3.2kVA 48V Pure Sinewave Solar PCU, 899-072-3500
(3 Reviews)
₹23,362 (Incl. of all taxes)
₹19,800 ₹3,562 GST
MRP ₹41,990 44% OFF
About This Product
Key Features
Charger Technology: Pulse with Modulation.
Pure Sinewave Solar PCU PWM are Based On DSP Technology.
Smart Real Time Clock solar Selection to Maximize Money Saving.
User Friendly Solar Selection Switch to Save Power.
Battery Charger Even at 90 V Low Voltage.
Smart LCD Displays Total Solar Energy Generation (in KWH).
Battery Types Support: Tubular, SMF, Flat Plate.
Remote Monitoring Through WIFI/LAN/GPRS (Optional Feature).
Show All Key Features
Product Specifications
Brand | |
Technology | Most Advanced Real Time Clock: RTC ensures Optimum Saving of Solar Energy |
Charging Current | Mains Battery: Constant Charging Approx. 10% of the Rated Battery Current in AH |
Customer Care Number | 7283838383 |
Dimensions | 40x38x46.5 cm |
Input Power | Maximum Solar: 3600 W |
Input Range | Grid Normal Mode: 90-290+5 V & Grid UPS Mode: 180-265+5 V |
Input Voltage | Maximum Solar: 98 VOC |
Item Code | 899-072-3500 |
Model | PCU PWM 4050 / 48V |
Nominal Voltage | Battery: 48 V |
Operating Temperature | 0-45 deg C |
Output Frequency (Hz) | 50+0.1% Hz |
Output Voltage | Inverter at Nominal DC: 230 V +3% |
Output Waveform | UPS Mode: Pure Sine Wave |
Phase | Output: 1 Phase |
Protection | UPS Overload, UPS Short Circuits, Reverse Panel & DC Input Volt & High Cut Protection/Recover Thermal Protection: Both in Grid Charging & Backup Mode |
Rated Capacity | 3.2 kVA |
THD | <3% (at Linear Load) |
UPS Transfer Time (ms) | Normal Mode: Mains to Back-up <40 ms Back-up to Mains <15ms & UPS Mode: Mains to Back-up <12 ms Back-up to Mains <10 ms |
Weight | 28.97 kg |
controller | PV Topology: PWM Solar Charger: 50 Amp |
Country of origin | India |
Manufacturer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Packer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Common/Generic Name | Solar PCU |
Dimensions LxWxH | 40x38x46.5 cm |
Weight | 28.97 kg |
Show All Specifications
Product Details
The Microtek PWM 4050 3.2kVA 48V Pure Sinewave Solar PCU is a high-quality solar inverter that is perfect for those who want to save money on their energy bills. This inverter uses Pulse Width Modulation (PWM) to create a pure sinewave, which is more efficient than the traditional square wave inverters. Microtek solar Inverter is a efficient and robust Inverter. It has a weight of 28.97 kg and dimensions of 40x38x46.5 cm. The Inverter has an operating temperature of 0-45 deg C and has a phase of Output: 1 Phase. The Inverter also has a output voltage of Inverter at Nominal DC: 230 V +3%. It comes with a 2 year warranty.
Browse through the extensive list of Solar Inverter at Moglix. Shop online for other Microtek Solar Inverter. available at Moglix in the lowest price range.
Read More
Microtek PWM 4050 3.2kVA 48V Pure Sinewave Solar PCU, 899-072-3500
Verified Purchase
Mohit Ram
June 28, 2022
The best solar inverter i have ever used
The product is very good. the installation is also very easy. the customer service is also very good.
Verified Purchase
Latif
May 15, 2022
I am very happy with my microtek solar inverter. it was worth the money and has worked great for me.
The product is good. its a solar inverter and it works as it should. the only issue i have is that the customer service from the company is not great. i had to wait a long time for someone to get back to me about a question i had.
VIEW 1 MORE HELPFUL REVIEW
Frequently Asked Questions
Displaying Questions 2 / 4
Q1:What is Nominal Voltage ?
Ans:
Its nominal voltage is 48 V
Q2:How much does it weigh?
Ans:
It weighs 28.97 kg
VIEW 2 MORE FAQs
