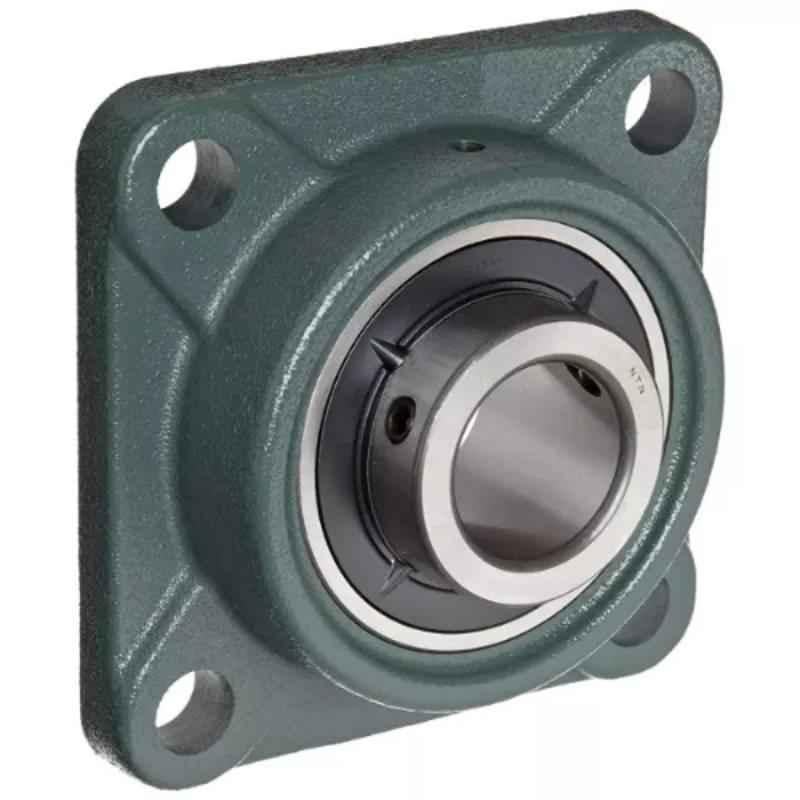

NBC UCF205-16 25.4x25.4x95mm Square Flanged Ball Bearing Unit (Pack of 10)

₹5,102 (Incl. of all taxes)

₹4,324 ₹778 GST

MRP ₹7,330 30% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NBC
Additional Details	Centre Distance Between Bolt Holes: 70 mm
Bearing Number	UCF205-16
Bore Diameter	25.4 mm
Dynamic Load Rating	14 kN
Height	35.7 mm
Limiting Speed	5850 rpm
Notes	Image for reference purposes only
Overall Width	Housing: 27 mm Bearing: 34 mm
Package Contents	Set Screw Locking, Cast Iron Housing & JIS
Shaft Diameter	25.4 mm
Static Load Rating	7.8 kN
Width	95 mm
Country of origin	India
Manufacturer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India- Email: neisales@nbcbearings.in, Phone: 1800 3000 6222
Packer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India- Email: neisales@nbcbearings.in, Phone: 1800 3000 6222
Common/Generic Name	Square Flanged Ball Bearing Unit
Dimensions LxWxH	2.54x2.54x9.5 cm
Weight	0.25 kg

Show All Specifications

Product Details

Introducing the NBC 25.4x25.4x95mm Square Flanged Ball Bearing Unit, UCF205-16 (Pack of 10), a top-notch product under our renowned brand, NBC. This flange bearing unit is designed to provide exceptional performance and reliability. With a static load rating of 7.8 kN and a dynamic load rating of 14 kN, it ensures stability and durability in various applications. The overall width of the housing is 27 mm, offering a strong and secure support system. Its centre distance between bolt holes measures 70 mm, while the width of the unit is 95 mm, making it suitable for a wide range of industrial applications. Additionally, the limiting speed of 5850 rpm ensures smooth and efficient operation. Please note that the image provided is for reference purposes only. Trust NBC for superior quality flange bearings that exceed your expectations.
