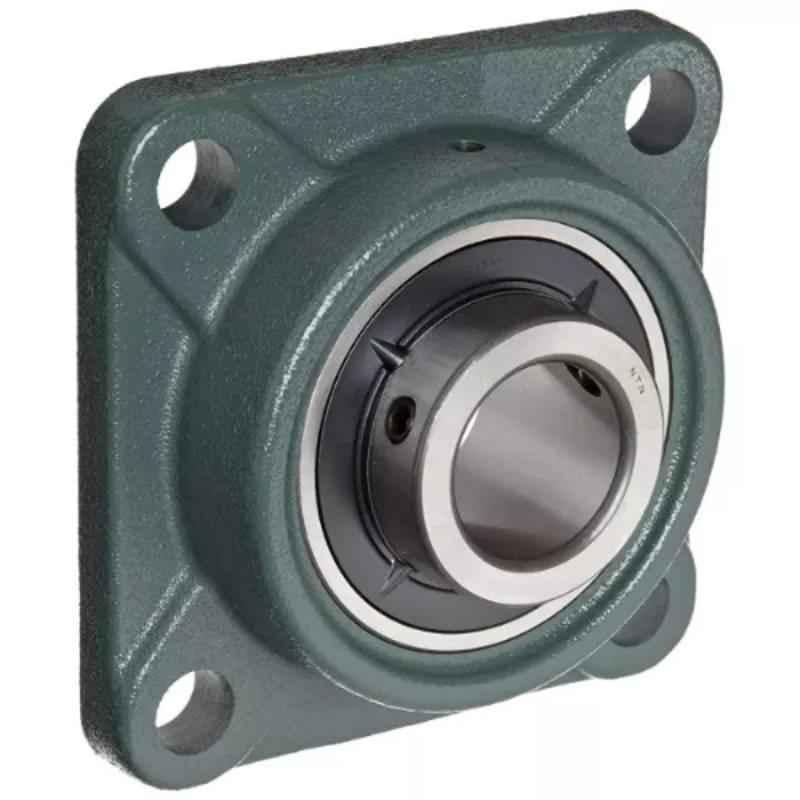

NBC UCF205-16 25.4x25.4x95mm Square Flanged Ball Bearing Unit (Pack of 5)

₹2,555 (Incl. of all taxes)

₹2,162 ₹393 GST

MRP ₹3,665 30% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NBC
Additional Details	Centre Distance Between Bolt Holes: 70 mm
Bearing Number	UCF205-16
Bore Diameter	25.4 mm
Dynamic Load Rating	14 kN
Height	35.7 mm
Limiting Speed	5850 rpm
Notes	Image for reference purposes only
Overall Width	Housing: 27 mm Bearing: 34 mm
Package Contents	Set Screw Locking, Cast Iron Housing & JIS
Shaft Diameter	25.4 mm
Static Load Rating	7.8 kN
Width	95 mm
Country of origin	India
Manufacturer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India- Email: neisales@nbcbearings.in, Phone: 1800 3000 6222
Packer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India- Email: neisales@nbcbearings.in, Phone: 1800 3000 6222
Common/Generic Name	Square Flanged Ball Bearing Unit
Dimensions LxWxH	2.54x2.54x9.5 cm
Weight	0.25 kg

Show All Specifications

Product Details

Introducing the NBC 25.4x25.4x95mm Square Flanged Ball Bearing Unit, UCF205-16 (Pack of 5). This flange bearing unit, belonging to our Flange Bearings category, is manufactured by the renowned brand NBC. With a static load rating of 7.8 kN and a dynamic load rating of 14 kN, this ball bearing unit is designed to handle heavy-duty applications with ease. Its overall width housing is 27 mm, ensuring optimal stability and support. The centre distance between bolt holes is 70 mm, providing a secure fit. With a width of 95 mm, this bearing unit is highly efficient and reliable. Operating at a limiting speed of 5850 rpm, it guarantees smooth and efficient performance. Please note that the image is for reference purposes only. In summary, the NBC 25.4x25.4x95mm Square Flanged Ball Bearing Unit offers superior quality and performance, making it an ideal choice for a wide range of industrial applications.

Browse through the extensive list of Flange Bearings at Moglix. Shop online for other NBC Flange Bearings. available at Moglix in the lowest price range.
