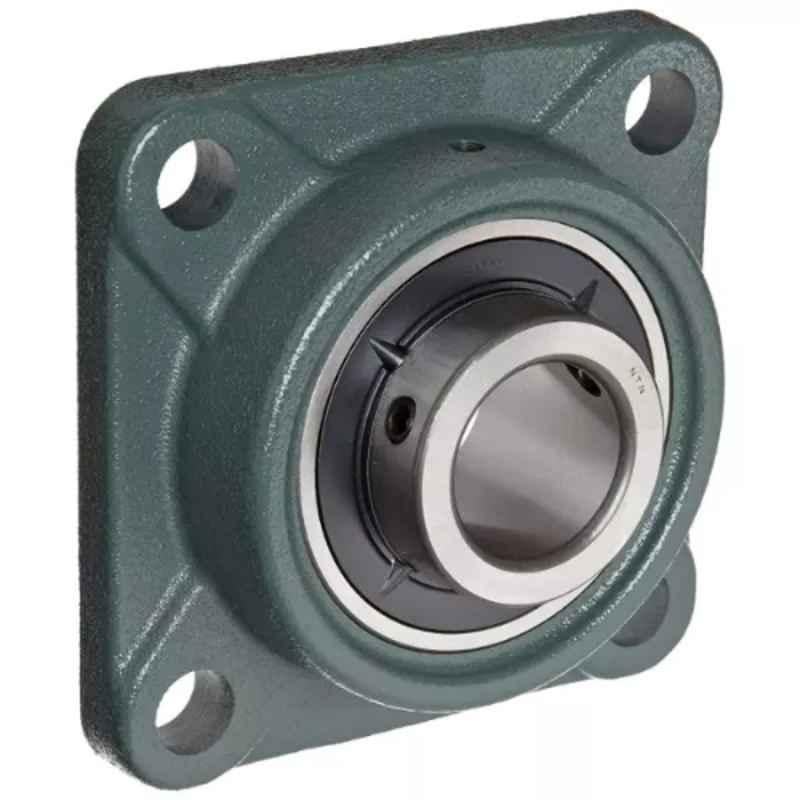

NBC UCF205-16 25.4x25.4x95mm Square Flanged Ball Bearing Unit

₹511 (Incl. of all taxes)

₹433 + ₹78 GST

MRP ₹747 31% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NBC
Additional Details	Centre Distance Between Bolt Holes: 70 mm
Bearing Number	UCF205-16
Bore Diameter	25.4 mm
Dynamic Load Rating	14 kN
Height	35.7 mm
Limiting Speed	5850 rpm
Notes	Image for reference purposes only
Overall Width	Housing: 27 mm Bearing: 34 mm
Package Contents	Set Screw Locking, Cast Iron Housing & JIS
Shaft Diameter	25.4 mm
Static Load Rating	7.8 kN
Width	95 mm
Country of origin	India
Manufacturer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Packer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Common/Generic Name	Flange Bearings
Dimensions LxWxH	25.4x25.4x95 mm
Weight	250 g

Show All Specifications

Product Details

Introducing the NBC 25.4x25.4x95mm Square Flanged Ball Bearing Unit, UCF205-16, designed for reliable and efficient performance. This high-quality flange bearing falls under the category of Flange Bearings, offering unmatched durability and precision. Proudly bearing the reputable NBC brand, this product boasts a robust Static Load Rating of 7.8 kN, ensuring exceptional strength under heavy loads. The overall width of the housing measures 27 mm, providing stability and support. Please note that the image provided is for reference purposes only. With a Limiting Speed of 5850 rpm, this bearing guarantees smooth and precise operation. Additional details include a Centre Distance Between Bolt Holes of 70 mm, a width of 95 mm, and a remarkable Dynamic Load Rating of 14 kN. Upgrade your machinery with the exceptional NBC 25.4x25.4x95mm Square Flanged Ball Bearing Unit.
