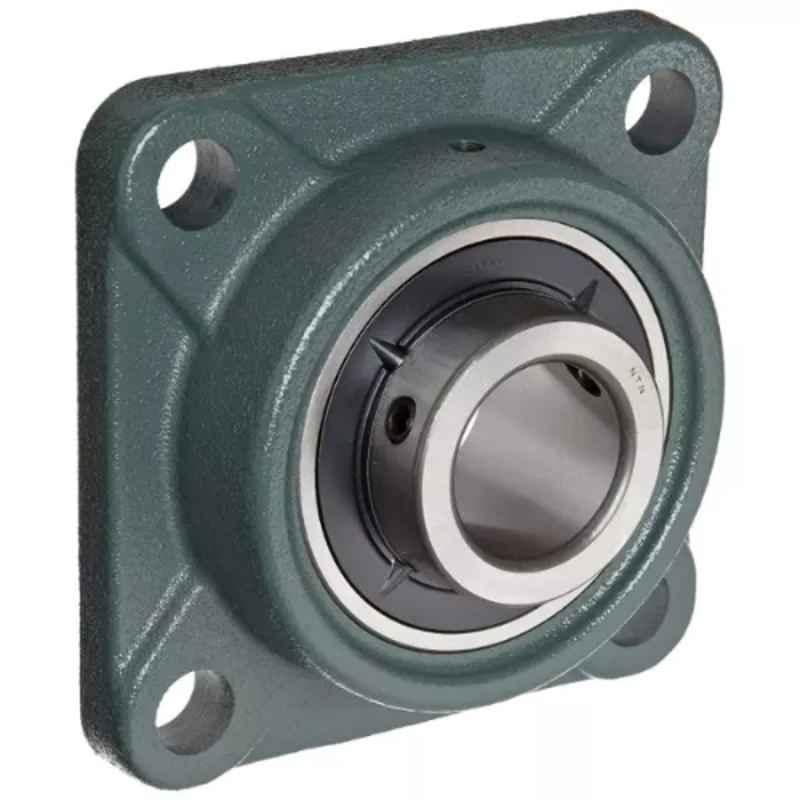

NBC UCF209-28 44.45x44.45x137mm Square Flanged Ball Bearing Unit

₹1,272 (Incl. of all taxes)

₹1,077 + ₹195 GST

MRP ₹1,863 31% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	NBC
Additional Details	Centre Distance Between Bolt Holes: 105 mm
Bearing Number	UCF209-28
Bore Diameter	44.45 mm
Dynamic Load Rating	32.5 kN
Height	52.2 mm
Limiting Speed	3400 rpm
Notes	Image for reference purposes only
Overall Width	Housing: 38 mm Bearing: 49.2 mm
Package Contents	Set Screw Locking, Cast Iron Housing & JIS
Shaft Diameter	44.45 mm
Static Load Rating	20.4 kN
Width	137 mm
Country of origin	India
Manufacturer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Packer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Common/Generic Name	Flange Bearings
Dimensions LxWxH	44.45x44.45x137 mm
Weight	250 g

Show All Specifications

Product Details

Introducing the NBC 44.45x44.45x137mm Square Flanged Ball Bearing Unit, UCF209-28, designed for exceptional performance in various industrial applications. This high-quality flange bearing unit belongs to our extensive Flange Bearings category, providing reliable solutions for a wide range of engineering needs. Manufactured by NBC, a trusted brand known for its durable and efficient products, this ball bearing unit offers a static load rating of 20.4 kN, ensuring stability under heavy loads. With an overall width housing of 38 mm and a width of 137 mm, it guarantees excellent support and precise operations. The NBC 44.45x44.45x137mm Square Flanged Ball Bearing Unit, UCF209-28, features a limiting speed of 3400 rpm for smooth and efficient rotation. The centre distance between bolt holes measures 105 mm, ensuring convenient installation. The dynamic load rating reaches 32.5 kN, further emphasizing its reliability and performance. A reference image is provided for visualization purposes only.
