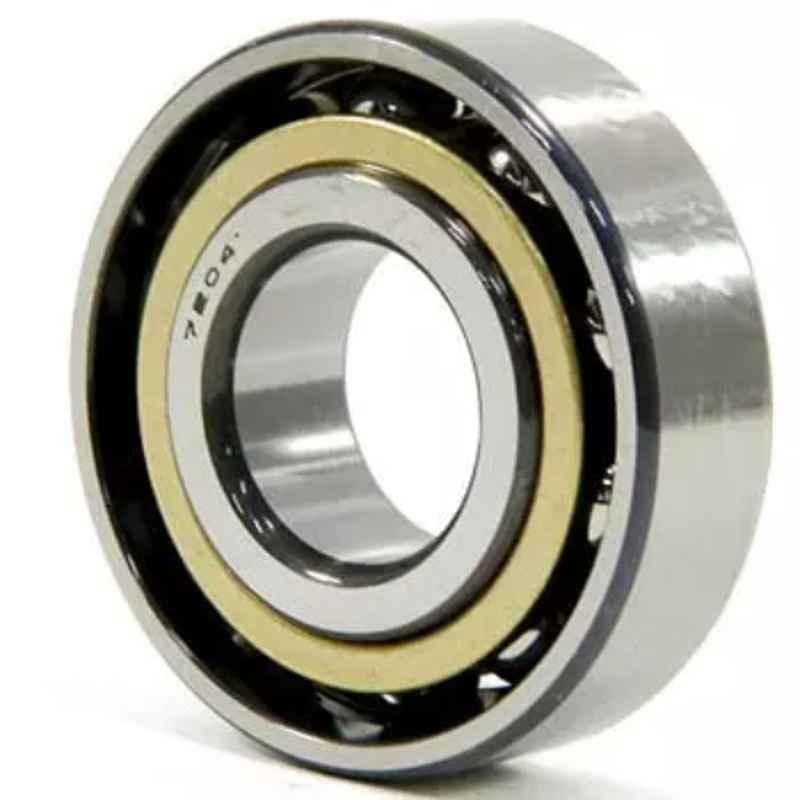

NSK 14x47x20mm Single Row Angular Contact Ball Bearing, 7204A

₹2,045 (Incl. of all taxes)

₹1,728 ₹317 GST

MRP ₹4,551 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NSK
Basic Dynamic Load	14.5kN
Basic Static Load	8.3 kN
Bearing Material	High Carbon Chromium Steel
Bearing Number	7204A
Bore Diameter	20 mm
Contact Angle	30 deg
Enclosure	Open
Limiting Speed with Grease	17000 rpm
Limiting Speed with Oil	22000 rpm
Outer Diameter	47 mm
Width	14 mm
Additional Details	Outer Ring Type: Flat Load Direction: Radial Race Ring Shape: Angular Contact Ball Bearing Mass: 106 g Working Point: 16.7 mm Chamfering Size: Min 1 mm
Notes	Actual Product Model Might Vary from that Shown in the Picture
Number of Row	Single
Standards	JIS Grade, Class 0
Type of Ball Bearing	Angular Contact
Country of origin	Japan
Manufacturer Details	NSK Ltd, Address: 1-6-3 Osaki Shinagawa-Ku, 141-8560 Japan
Packer Details	NSK Ltd, Address: 1-6-3 Osaki Shinagawa-Ku, 141-8560 Japan
Importer Details	NSK Bearings India Private Ltd, Head Office: TVH Beliciaa Towers 2nd Floor Block I No.71/1 MRC Nagar Main Road, MRC Nagar, Chennai, Tamil Nadu 600028, India
Common/Generic Name	Angular Contact Ball Bearing
Dimensions LxWxH	58.4x40.6x45.7 cm
Weight	300 g

Show All Specifications

Product Details

The NSK 14x47x20mm Single Row Angular Contact Ball Bearing, 7204A, is a high-quality ball bearing designed for industrial applications. It is part of the Ball Bearings category and is manufactured by the well-known brand NSK. As an angular contact ball bearing, it is specifically designed to handle both radial and axial loads with ease. With a basic static load capacity of 8.3 kN, it is capable of withstanding heavy loads without sacrificing performance. Made from high carbon chromium steel, it ensures durability and longevity. Please note that the actual product model may vary from the one shown in the picture. The bore diameter of this ball bearing is 20 mm, while the width is 14 mm.
