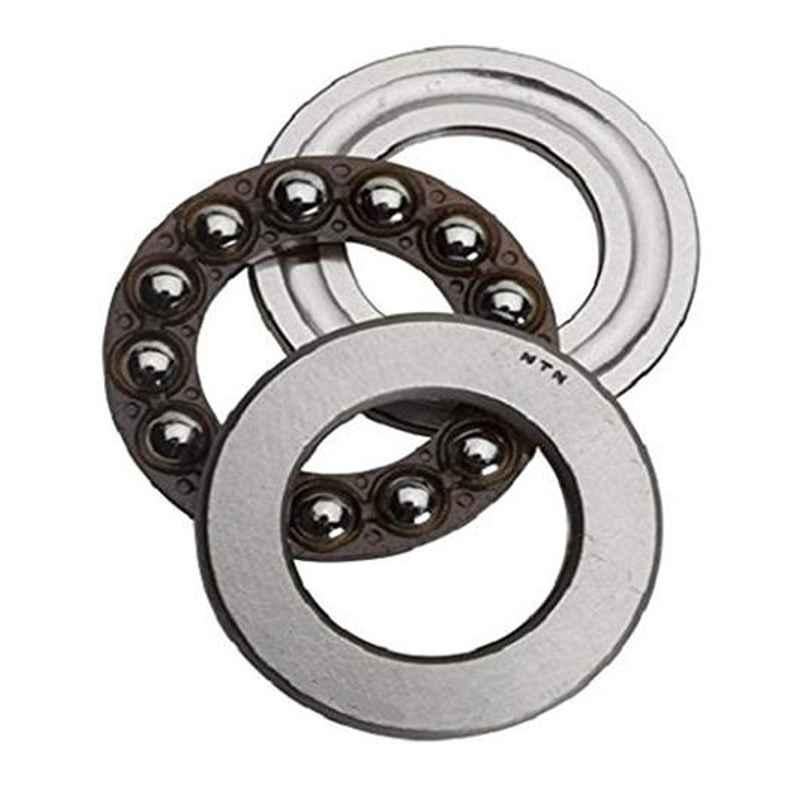

NTN 51409 Thrust Ball Bearing, 45x100x39 mm

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Bearing Number	51409
Bore Diameter	45 mm
Outer Diameter	100 mm
Width	39 mm
Basic Dynamic Load	130 kN
Basic Static Load	242 kN
Limiting Speed with Grease	1600 rpm
Limiting Speed with Oil	2200 rpm
Operating Temperature	-40 deg C to 120 deg C
Cage type	Pressed
Type of Ball Bearing	Thrust
Weight	1.43 kg
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Dimensions LxWxH	9x9x4 cm
Weight	0.385 kg

Show All Specifications

Product Details

Introducing the NTN 51409 Thrust Ball Bearing, a high-quality product designed for maximum performance and durability. With dimensions of 45x100x39 mm, this ball bearing is ideal for a wide range of applications within the ball bearings category. Proudly offered by the renowned brand NTN, this thrust ball bearing ensures reliable operation under heavy loads, thanks to its impressive basic static load capacity of 242 kN. Weighing just 1.43 kg, it is lightweight and easy to handle. The 39 mm width guarantees stability and precision in any demanding environment, even extreme temperatures ranging from -40°C to 120°C. Its pressed cage type and 45 mm bore diameter further enhance its performance capabilities. Choose the NTN 51409 Thrust Ball Bearing for exceptional quality and outstanding performance.
