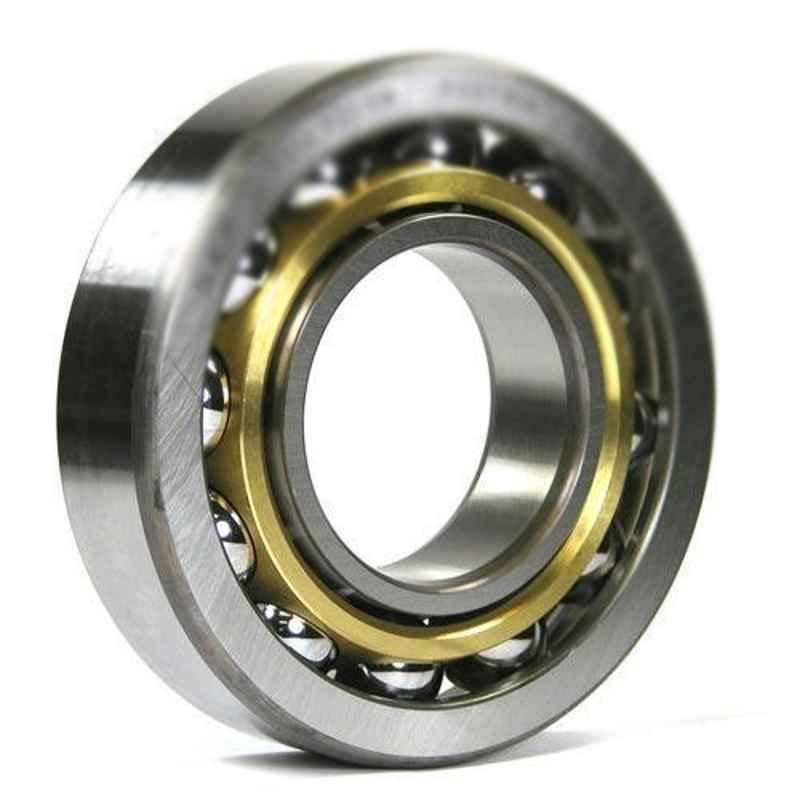

NTN 7024 Angular Contact Ball Bearing, 120x180x28 mm

₹8,544 (Incl. of all taxes)

₹7,237 ₹1,307 GST

MRP ₹10,581 19% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Bearing Number	7024
Bore Diameter	120 mm
Outer Diameter	180 mm
Width	28 mm
Basic Dynamic Load	93.5 kN
Basic Static Load	98.5 kN
Limiting Speed with Grease	3600 rpm
Limiting Speed with Oil	4800 rpm
Notes	Images are for Reference Purposes Only
Type of Ball Bearing	Angular Contact
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	12x18x2.8 cm
Weight	300 g

Show All Specifications

Product Details

Introducing the NTN 7024 Angular Contact Ball Bearing, measuring 120x180x28 mm. This top-of-the-line ball bearing, under the esteemed brand name NTN, falls into the Ball Bearings category. With a type of Angular Contact, this bearing offers superior performance and reliability. It can withstand a basic static load of 98.5 kN and has a basic dynamic load rating of 93.5 kN, ensuring optimal functionality in various applications. The 28 mm width adds to its durability and stability. With a limiting speed of 3600 rpm when greased, this bearing guarantees smooth and efficient operation. The bore diameter of 120 mm further enhances its versatility. Please note that the images provided are for reference purposes only.
