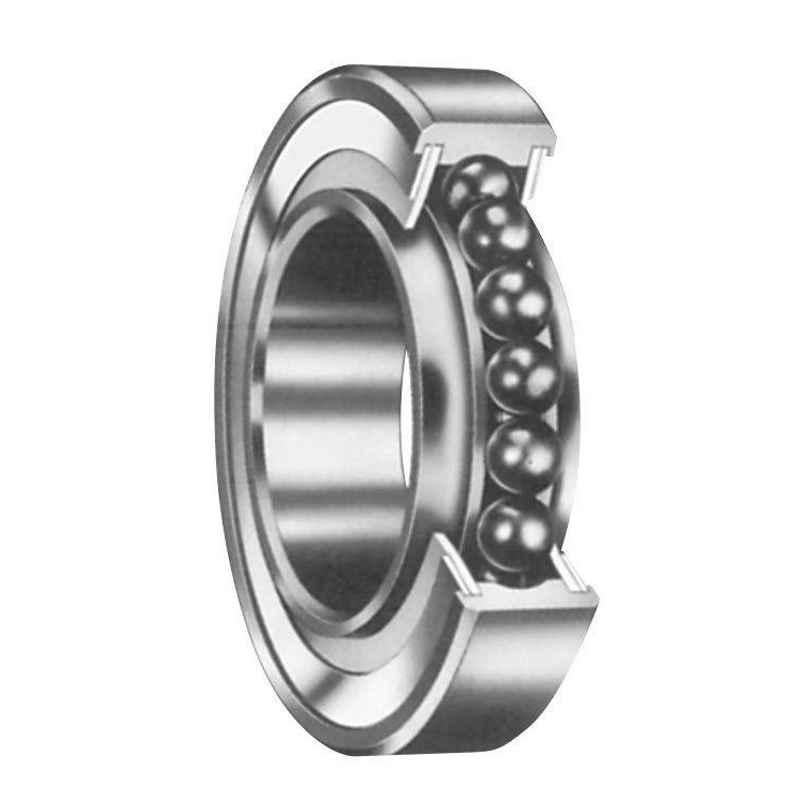

NTN 6203ZZ Single Row Double Shielded Radial Ball Bearing, 17x40x12mm

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Bearing Number	6203ZZ
Bore Diameter	17 mm
Outer Diameter	40 mm
Width	12 mm
Basic Dynamic Load	9.6 kN
Basic Static Load	4.6 kN
Bearing Material	High Carbon Chrome Steel
Enclosure	Both Sides Shielded
Limiting Speed with Grease	18000 rpm
Operating Temperature	-40 deg C to 120 deg C
Radial Internal Clearance	Normal
Additional Details	Ball Material: Steel Configuration: One Precision Rating: ISO Class 0
Bore Type	Round
Cage Material	Steel
Cage type	Pressed
Notes	Images are only for reference purpose
Type of Ball Bearing	Deep Groove
Weight	0.064 Kg
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Dimensions LxWxH	1.7x4x1.2 cm
Weight	300 g

Show All Specifications

Product Details

The NTN 6203ZZ Single Row Double Shielded Radial Ball Bearing is a high-quality ball bearing designed for various industrial applications. With a width of 12mm and a bore diameter of 17mm, this deep groove ball bearing can handle a basic static load of 4.6 kN. Operating within a temperature range of -40 deg C to 120 deg C, this NTN ball bearing is durable and reliable. Weighing only 0.064 Kg, this ball bearing has an outer diameter of 40mm, making it compact and versatile for use in machinery and equipment. Trust NTN for superior performance and longevity in your applications.
