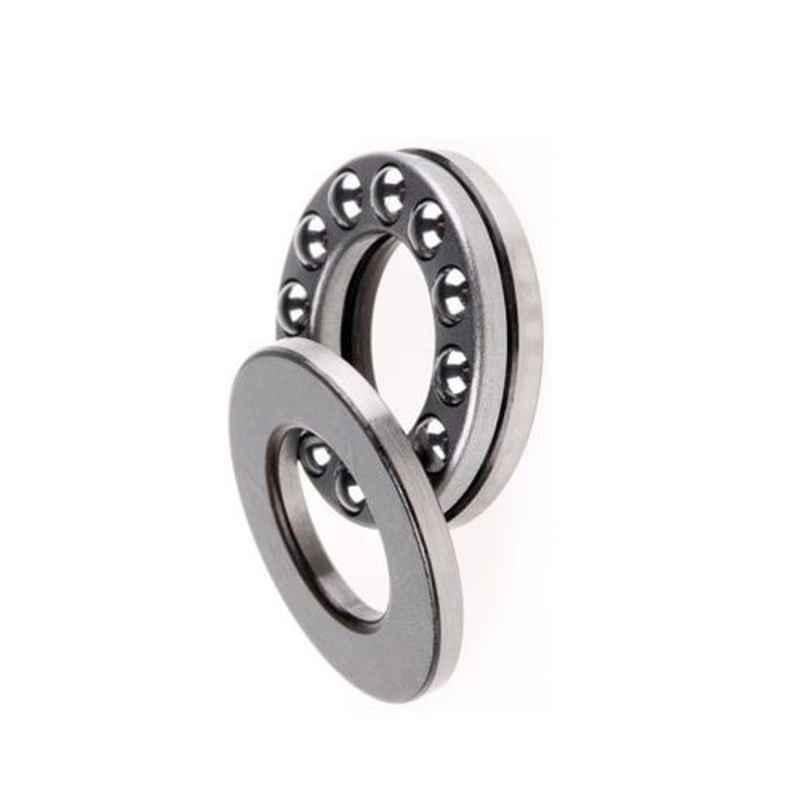

NTN 51136 Thrust Ball Bearing, 180x225x34 mm

AVAILABLE ON REQUEST

About This Product

Key Features

These bearings allow the housing bore to be used as-is.
No need for a ground undercut on the bearing shaft washer's outer diameter.
These bearings where the bearing shaft washer outer diameter is smaller than the housing shaft washer outer diameter.

Product Specifications

Brand	NTN
Bearing Number	51136
Bore Diameter	180 mm
Outer Diameter	225 mm
Width	34 mm
Basic Dynamic Load	135 kN
Basic Static Load	525 kN
Limiting Speed with Grease	1100 rpm
Limiting Speed with Oil	1500 rpm
Notes	Images are for Reference Purposes Only
Type of Ball Bearing	Thrust
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	18x22.5x3.4 cm
Weight	300 g

Show All Specifications

Product Details

Introducing the NTN 51136 Thrust Ball Bearing, a high-performance component designed to excel in demanding applications. With a bore diameter of 180mm and a width of 34mm, this ball bearing is perfect for machinery requiring precise axial load guidance. The NTN brand ensures reliability and durability, making it a trusted choice in the industry. With a basic dynamic load of 135kN and a basic static load of 525kN, this bearing guarantees superior performance under heavy loads. The limiting speed with grease is 1100rpm, ensuring smooth and efficient operation. Please note that the images provided are for reference purposes only. Optimize your machinery with the NTN 51136 Thrust Ball Bearing, delivering precision and strength in every rotation.
