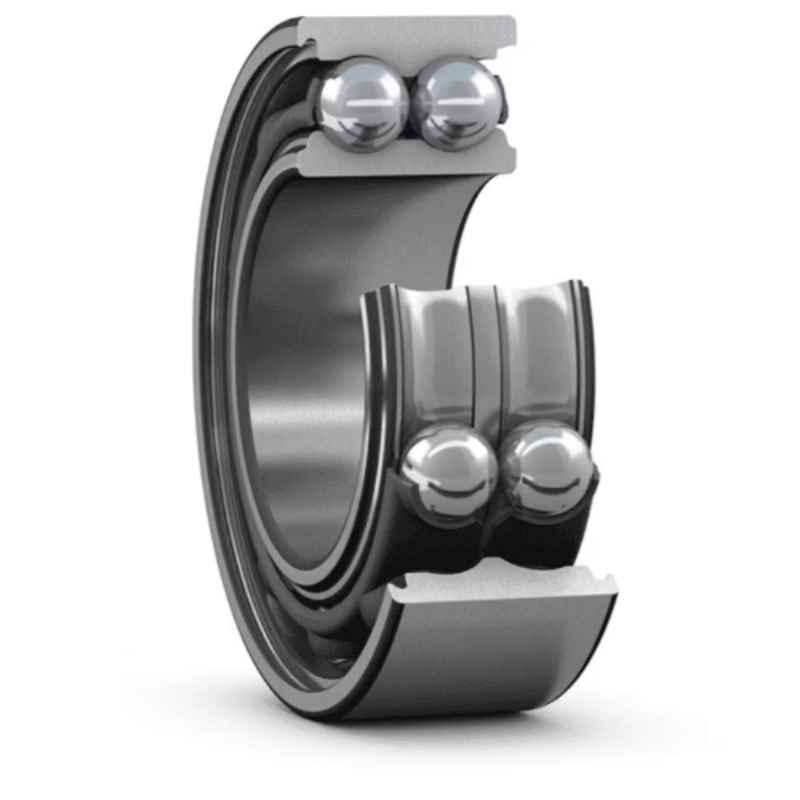

NTN 5208S Double Row Angular Contact Ball Bearing, 40x80x30.2 mm

₹2,765 (Incl. of all taxes)

₹2,344 ₹421 GST

MRP ₹3,429 19% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Bearing Number	5208S
Bore Diameter	40 mm
Outer Diameter	80 mm
Width	30.2 mm
Basic Dynamic Load	44 kN
Basic Static Load	33.5 kN
Limiting Speed with Grease	5600 rpm
Limiting Speed with Oil	7100 rpm
Notes	Images are for Reference Purposes Only
Type of Ball Bearing	Angular Contact
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	4x8x3.02 cm
Weight	300 g

Show All Specifications

Product Details

The NTN 5208S Double Row Angular Contact Ball Bearing, with dimensions of 40x80x30.2 mm, is a reliable and durable component for various industrial applications. As part of the Ball Bearings category, this NTN bearing is designed to withstand high radial and axial loads. The angular contact design ensures that the balls make contact at an angle with the raceways, resulting in increased load capacity and improved stiffness. With a basic static load capacity of 33.5 kN and a basic dynamic load capacity of 44 kN, this ball bearing is capable of handling demanding operating conditions. Its width of 30.2 mm and bore diameter of 40 mm further contribute to its versatility and performance. The bearing has a limiting speed with grease of 5600 rpm, ensuring smooth operation even at high speeds. Please note that the images provided are for reference purposes only.
