NTN 7009 Angular Contact Ball Bearing, 45x75x16 mm

₹2,054 (Incl. of all taxes)

₹1,741 + ₹313 GST

MRP ₹2,546 19% OFF

AVAILABLE ON REQUEST

Moglix Insights

NTN is one of the top brand in ball bearings, preferred by 6% of the users

33% of the users prefer ball bearings in ₹2000-4000 price range

About This Product

Product Specifications

Brand	NTN
Bearing Number	7009
Bore Diameter	45 mm
Outer Diameter	75 mm
Width	16 mm
Basic Dynamic Load	22.3 kN
Basic Static Load	17.7 kN
Limiting Speed with Grease	9500 rpm
Limiting Speed with Oil	13000 rpm

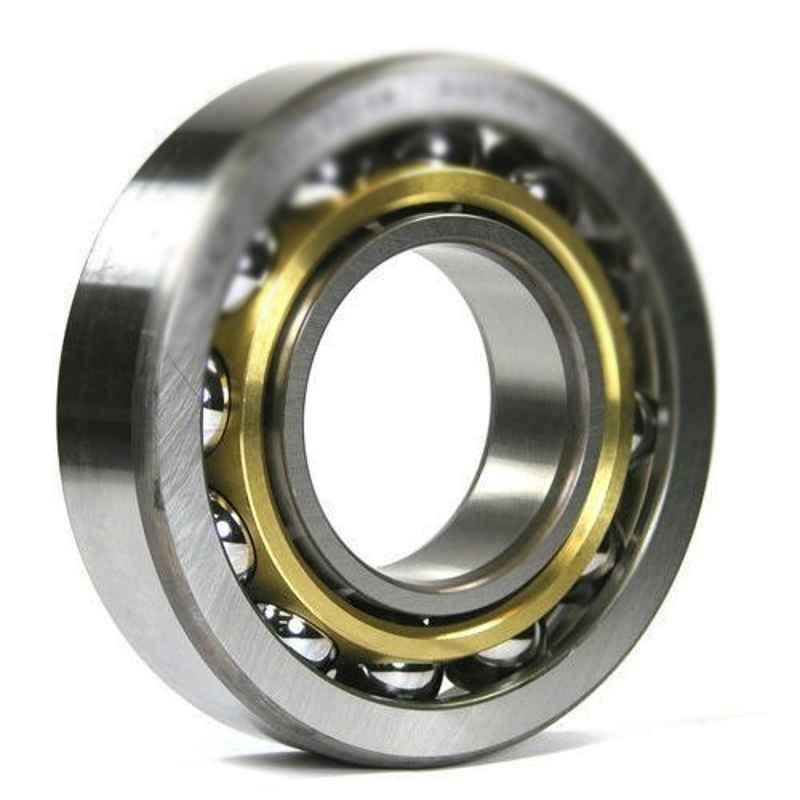

Notes	Images are for Reference Purposes Only
Type of Ball Bearing	Angular Contact
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	4.5x7.5x1.6 cm
Weight	300 g

Show All Specifications

Product Details

The NTN 45x75x16mm Single Angular Contact Ball Bearing, 7009 is an excellent choice for any application requiring a high quality ball bearing. This particular bearing falls under the category of Ball Bearings and is proudly manufactured by NTN, a trusted and renowned brand in the industry.

The NTN 7009 features an Angular Contact design, which allows for increased radial and axial load capacity. With a Bore Diameter of 45 mm and a Width of 16 mm, this ball bearing offers precise and efficient performance.

The Basic Dynamic Load rating of 22.3 kN ensures its durability and ability to withstand heavy loads, while the Basic Static Load rating of 17.7 kN indicates its strength and stability.

Additionally, with a Limiting Speed of 9500 rpm when lubricated with grease, this NTN ball bearing provides smooth and reliable operation.

Please note that the images provided are for reference purposes only and the actual product may vary slightly. Overall, the NTN 45x75x16mm Single Angular Contact Ball Bearing, 7009 is a dependable and high-performing option for a wide range of applications.

Browse through the extensive list of Ball Bearings at Moglix. Shop online for other NTN Ball Bearings. available at Moglix in the lowest price range.
