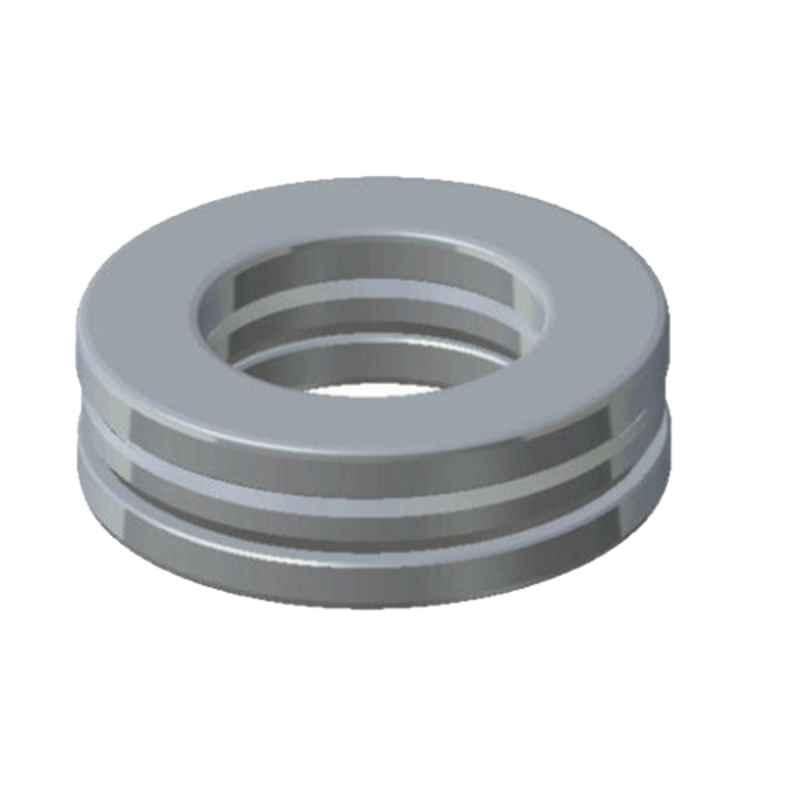

NTN 51115 Thrust Ball Bearing, 75x100x19 mm

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NTN
Bearing Number	51115
Bore Diameter	75 mm
Outer Diameter	100 mm
Width	19 mm
Basic Dynamic Load	44.5 kN
Basic Static Load	136 kN
Limiting Speed with Grease	220 rpm
Limiting Speed with Oil	3200 rpm
Operating Temperature	-40 deg C to 120 deg C
Type of Ball Bearing	Thrust
Weight	0.399 kg
Country of origin	Japan
Manufacturer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Packer Details	1-3-17, Kyomachibori, Nishi-ku, Osaka 550-0003, Japan
Importer Details	1, Shop No 104, Tip Top Plaza, Xlo Point, Ambad, Nashik, Maharashtra-422010, India
Dimensions LxWxH	9x9x4 cm
Weight	0.385 kg

Show All Specifications

Product Details

Introducing the NTN 51115 Thrust Ball Bearing, a high-quality component ideal for various applications. This ball bearing, with a dimension of 75x100x19 mm, falls under the category of Ball Bearings and is proudly manufactured by the reputable brand, NTN. As a Thrust ball bearing, it is designed to handle axial loads and provides efficient performance. With a basic static load capacity of 136 kN, this bearing offers strong support and reliability. In addition, it weighs only 0.399 kg, making it lightweight and easy to handle. The width is 19 mm, ensuring a compact design. With an impressive operating temperature range from -40 deg C to 120 deg C, this bearing can withstand harsh environments. The bore diameter of 75 mm enables a secure fit in various applications. With a limiting speed of 220 rpm with grease, this bearing offers enhanced convenience and efficiency. Overall, the NTN 51115 Thrust Ball Bearing is a dependable and versatile component that guarantees superior performance in demanding conditions.
