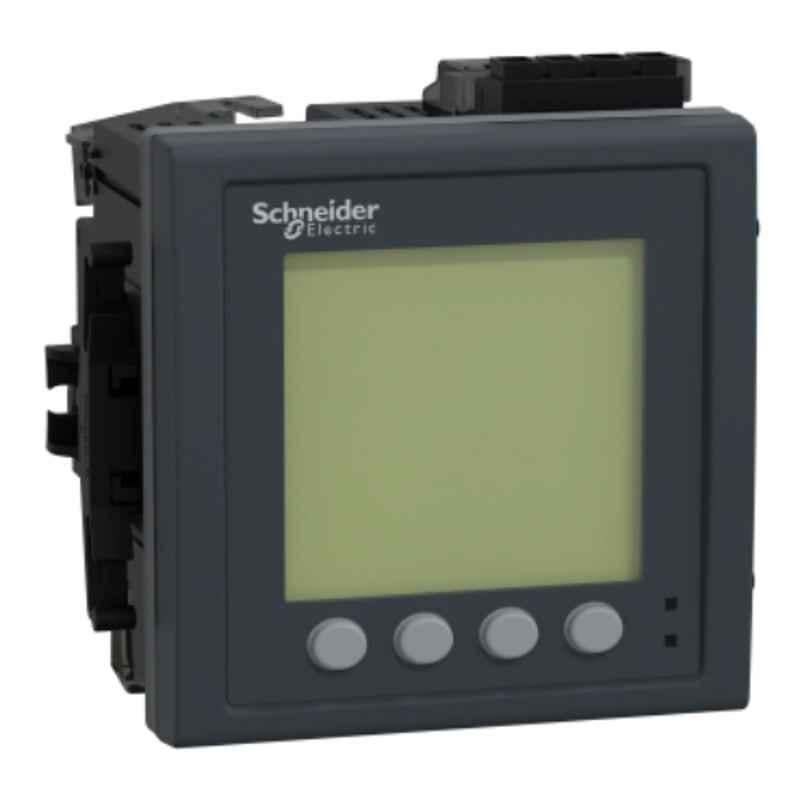

Schneider Electric PowerLogic PM5560 Electric Ethernet Power Meter, METSEPM5560

Name: Schneider Electric PowerLogic PM5560 Electric Ethernet Power Meter, METSEPM5560
Brand: Schneider Electric
SKU: MSN39YR6VJ125Q
Price: 71526 INR
Availability: OutOfStock

₹71,526 (Incl. of all taxes)

₹60,621 ₹10,905 GST

MRP ₹79,039 9% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Schneider Electric
Ambient Temperature	For Operation: -25 to 70 deg C For Storage: -40 to 85 deg C
Display Type	Backlit LCD
Frequency	50-60 Hz
Item Code	METSEPM5560
Measurement Accuracy	Apparent Power +/- 0.5% Frequency +/- 0.05% Active Energy +/- 0.2% Reactive Energy +/- 1% Active Power +/- 0.2% Voltage +/- 0.1% Power Factor +/- 0.005 Current +/- 0.15% Reactive Power +/- 1%
Model	PM5560
Mounting type	Flush Mount
Network	3P 1P + N 3P + N
Part Number	30003008D
Power Consumption	10 VA at 480 V
Protection	Rear: IP30 Display: IP54
Rated Current	1-5 Amp
Relative Humidity	5-95% at 50 deg C
Series	PowerLogic
Standards	EN 50470-3 IEC 61557-12 IEC 62053-22 IEC 62053-24 IEC 60529 EN 50470-1 UL 61010-1 ANSI C12.20
Supply Voltage	100-300 V DC 90-528 V AC
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon, Haryana-122002, India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon, Haryana-122002, India
Common/Generic Name	Meter
Dimensions LxWxH	9.6x9.6x3.8 cm
Weight	0.3 kg

Show All Specifications

Product Details

Schneider Electric PowerLogic PM5560 Electric Ethernet Power Meter, METSEPM5560 is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Process Monitoring Meters. All Schneider Electric PowerLogic PM5560 Electric Ethernet Power Meter, METSEPM5560 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric PowerLogic PM5560 Electric Ethernet Power Meter, METSEPM5560, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Process Monitoring Meters .
