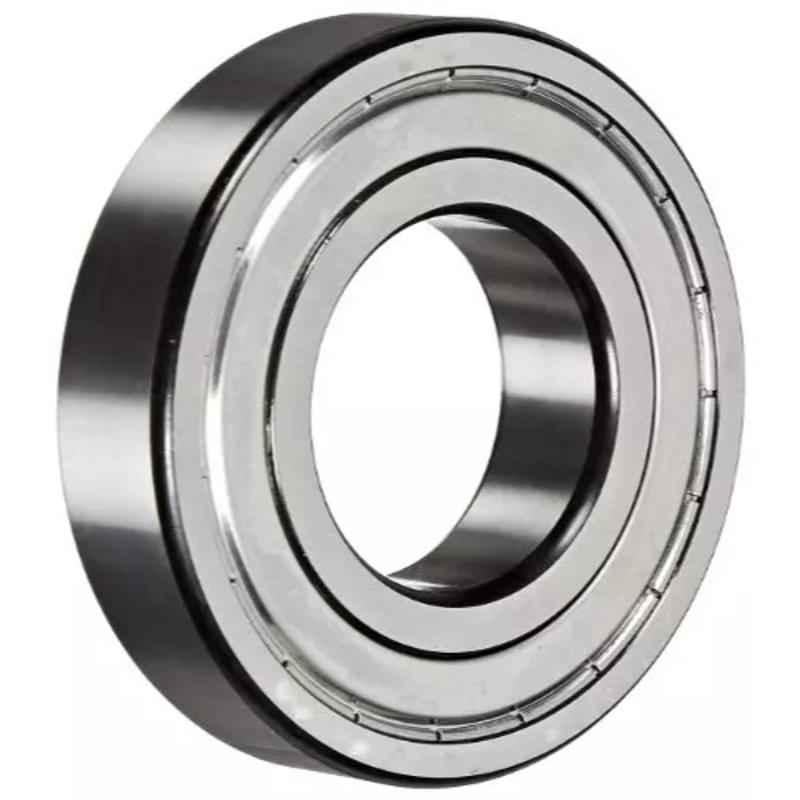

SKF 6003-Z Deep Groove Ball Bearing, 17x35x10mm (Pack of 10)

₹2,299 (Incl. of all taxes)

₹1,948 + ₹351 GST

MRP ₹2,660 13% OFF

AVAILABLE ON REQUEST

Moglix Insights

SKF is top brand in ball bearings, preferred by 42% of the users

19% of the users prefer ball bearings in ₹2000-3000 price range

About This Product

Key Features

Steel Shield on One Side.

Product Specifications

Brand	SKF
Bearing Number	6003-Z
Bore Diameter	17 mm
Outer Diameter	35 mm
Width	10 mm
Basic Dynamic Load	6.37 kN
Basic Static Load	3.25 kN
Bearing Material	High Carbon Chromium Steel
Limiting Speed	28000 rpm
Price Type	Domestic
Additional Details	Fillet Radius: min. 0.3 mm Radius of Shaft/Housing Fillet: max. 0.3 mm Recess Diameter: 31.2 mm Housing Diameter: max. 33 mm Fatigue Load Limit: 0.137 kN Shaft Diameter: 19-22.9 mm Shoulder Diameter: 23 mm
Notes	Images are reference purpose only, Actual product may be vary as per shown images.
Reference speed	45000 rpm
Type of Ball Bearing	Deep Groove
Weight	0.039 kg
Country of origin	India
Manufacturer Details	SKF India Limited, Chinchwad, Pune, Maharashtra, 411 033, IND
Packer Details	SKF India Limited, Chinchwad, Pune, Maharashtra, 411 033, IND
Common/Generic Name	Ball Bearings
Dimensions LxWxH	1.5x4.2x1.3 cm
Weight	0.25 kg

Show All Specifications

Product Details

Introducing the SKF 17x35x10mm Deep Groove Ball Bearing, specifically designed for superior performance in demanding applications. This pack of 10 ball bearings ensures durability and reliability, making it perfect for various industrial and mechanical purposes. With a bore diameter of 17mm and a width of 10mm, this deep groove ball bearing offers exceptional functionality. Crafted from high carbon chromium steel, it guarantees exceptional bearing material that can withstand extreme conditions. Its static load rating of 3.25 kN ensures optimal performance even when dealing with heavy loads. With a limiting speed of 28000 rpm, this SKF ball bearing promises high efficiency and smooth operation. With a weight of just 0.039 kg, it is lightweight yet robust, making it an ideal choice for numerous applications. Trust the SKF brand for excellent quality and long-lasting performance.
