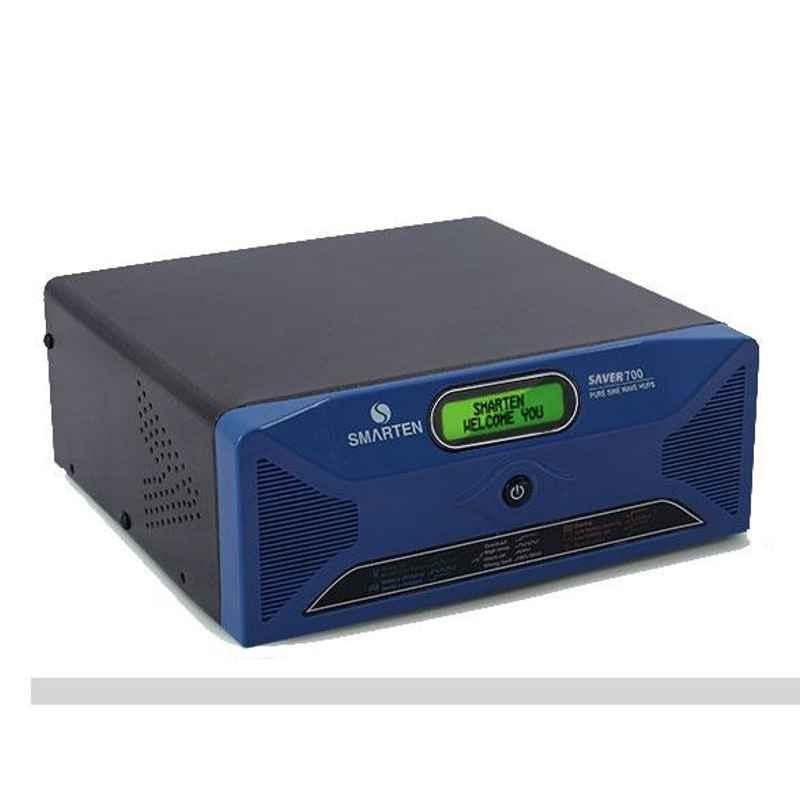

Smarten Saver 700VA 12V DC Solar PCU with LCD Screen

Name: Smarten Saver 700VA 12V DC Solar PCU with LCD Screen
Brand: Smarten
SKU: MSNM9XYXEGDPKJ
Price: 5543 INR
Availability: OutOfStock

₹5,543 (Incl. of all taxes)

₹4,697 ₹846 GST

MRP ₹6,440 13% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

User Friendly LCD Display & Interface.
Solar Panel Capacity: Upto 500W.
Smart Solar Optimization Usage Settings.
Low Cut: 175 ± 10V (UPS) & 90 ± 10V (WUPS).
Low Cut Recovery: 185 ± 10V (UPS) & 110 ± 10V (WUPS).
High Cut: 265 ± 10V (UPS) & 295 ± 10V (WUPS).
High Cut Recovery: 255 ± 10V (UPS) & 285 ± 10V (WUPS).
Change Over Time: Less than 10ms (UPS) & Less than 30ms (WUPS).
Overload: Greater than 110%, Charging Boost Voltage (LA/Floded): 14.0 ± 0.2 Each Battery & Charging Boost Voltage (Tubular): 14.5 ± 0.2 Each Battery.
Low Battery Warning: 10.7V ± 0.2V Each Battery, Low Battery Cut: 10.5V ± 0.2V Each Battery & DC Load Battery Cut: 10.3V ± 0.2V Each Battery.
Solar Charger: PWM, Max. Solar Input Voltage (Voc): 25V Each Battery & Charging Priority: Battery is Always Charges through Solar Priority.
Battery Priority: Firstly Use Solar Power & Check Battery Charged Status After that Use Battery 20% if Solar Power is Available.
Grid Priority: Charged Battery Always from Solar as Well as Grid if Solar is not Sufficient.

Show All Key Features

Product Specifications

Brand	Smarten
Charging Current	15 Amp ± 1 Amp (Factory Setting) Maximum: 30 Amp
Customer Care Number	+91 9319699755
Dimensions	270x190x125 mm
Humidity Range	0 to 95% RH Non-Conditioning
Load Capacity	700 VA
Model	Saver
Nominal Voltage	12 V
Operating Temperature Range	0 to 50 deg C
Output Frequency	50 Hz ± 1%
Output Voltage	Nominal: 230 V
Output Waveform	Pure Sine Wave
Overload Capacity	< 110%
Power	Maximum PV: 450 W
Storage Temperature	0 to 50 deg C
Voltage	12 V DC
Weight	8.5 kg
Country of origin	India
Manufacturer Details	PULSTRONICS INDIA, 1/C-3, SEC-COMMERCIAL AWAS VIKAS 1st , Bulandshahr, Uttar Pradesh-203001, India , Phone: +91-8448233444
Packer Details	PULSTRONICS INDIA, 1/C-3, SEC-COMMERCIAL AWAS VIKAS 1st , Bulandshahr, Uttar Pradesh-203001, India , Phone: +91-8448233444
Common/Generic Name	Solar PCU
Dimensions LxWxH	270x190x125 mm
Weight	8.5 kg

Show All Specifications

Product Details

Smarten Saver 700VA 12V DC Solar PCU with LCD Screen is a premium quality product from Smarten . Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All Smarten Saver 700VA 12V DC Solar PCU with LCD Screen are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Smarten Saver 700VA 12V DC Solar PCU with LCD Screen, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Smarten products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Smarten Solar Inverter .
