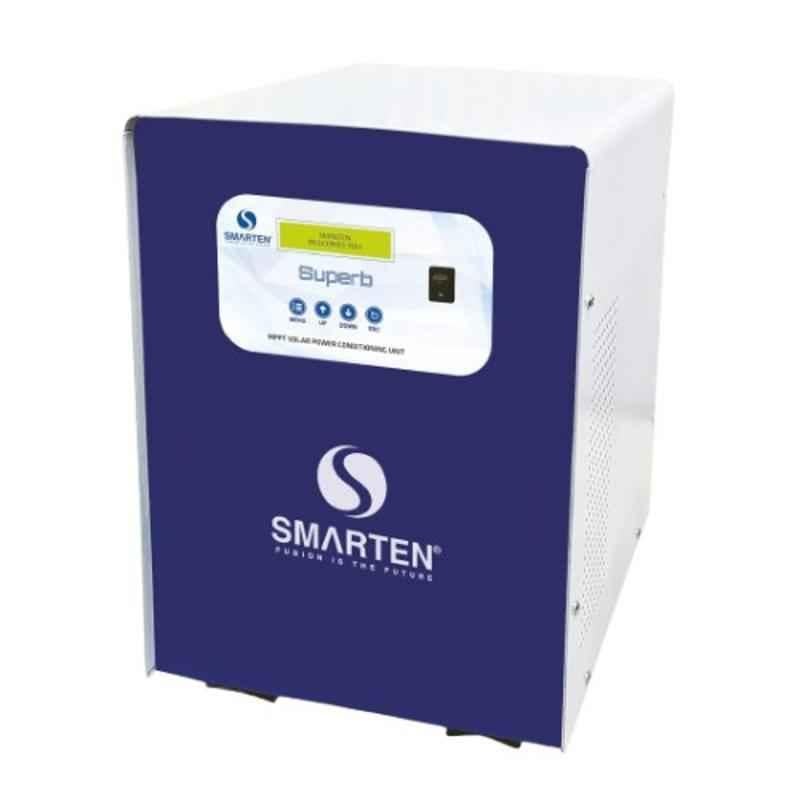

Smarten Superb 3075 24V 50A MPPT Solar PCU
(5 Reviews)
₹19,899 (Incl. of all taxes)
₹16,863 ₹3,036 GST
MRP ₹36,923 46% OFF
Moglix Insights
About This Product
Key Features
Supports Single Battery, Advanced DSP Control Technology.
Recover Deep Discharge Battery Even Zero Volt Zero Gravity & Ups & Wups Selectable Switch for IT Load.
Smart Charging Even During Low Voltage 90v, Dod, Can Set Four Battery Discharge Levels (20%, 30%, 40%, 50%).
Grid Charging Enable/Disable Option for Reduced Electricity Bill, Preference to Solar Power Over Grid Power.
Show All Key Features
Product Specifications
Brand | |
Operating Voltage | 24 V |
Power Rating | 3000 VA |
Technology | MPPT |
Battery Type | LA/ Tubular/SMF |
Battery Voltage | 29.6 ± 0.2 V Bulk Absorption |
Capacity | 3075 VA |
Charging Current | By Grid: 15A ± 3A |
Charging Voltage | Boost: 28V ± 0.3 V for LA Battery 28.8V ± 0.3 V for Tubular & SMF Battery |
Cooling Type | Temp . Controlled Fan |
Earth Leakage Protection | < 2.5 mA |
Efficiency | > 93 % |
Float Charging voltage | 27.4 ±0.2 V |
Input Frequency | 40 to 60 Hz |
Input Voltage | 24 V DC |
Max Panel Wattage | 1800 W |
Model | Superb 3075 |
No Load Current | < 1.5 Amp |
Operating Temperature | 0 to 50 deg C |
Output Frequency (Hz) | 50 ± 0.2 Hz |
Output Voltage | 220 VAC ± 10 % |
Output Waveform | Pure Sine Wave <5 % THD |
Relative Humidity | 90 % Non - Condensing |
Storage Temperature | 0 to 50 deg C |
Suitable For | 1HP Submersible, Photocopiers, Refrigerator, Washing Machine |
controller type | MPPT |
Country of origin | India |
Manufacturer Details | Smarten Power System Private Limited, Corporate Office: Plot No - 374, Pace City-II, Sector 37, Gurugram, Haryana-122001 |
Packer Details | Smarten Power System Private Limited, Corporate Office: Plot No - 374, Pace City-II, Sector 37, Gurugram, Haryana-122001 |
Common/Generic Name | PCU |
Dimensions LxWxH | 41.5x32x41.5 cm |
Weight | 23 kg |
Show All Specifications
Product Details
Elevate your Solar Power System'S Efficiency with the Smarten Superb 3075 24V 50A Mppt Solar Pcu. this Advanced Power Conditioning Unit Maximizes Energy Harvest By Intelligently Tracking the Sun'S Position, Ensuring Optimal Conversion & Storage. with A Robust 24V Output & A Reliable 50A Capacity, It'S the Backbone of A Dependable & Eco-Friendly Energy Solution. Monitor & Manage your Solar Setup Effortlessly, Thanks to Its User-Friendly Interface. the Smarten Superb 3075 Mppt Solar Pcu is your Key to Harnessing Clean, Sustainable Power Efficiently.
Browse through the extensive list of Solar Inverter at Moglix. Shop online for other Smarten Solar Inverter. available at Moglix in the lowest price range.
Read More
Product Specification Document
Smarten Superb 3075 24V 50A MPPT Solar PCU
Verified Purchase
Divyesh Shetty
December 7, 2023
Reliable and WellBuilt
Smarten has delivered another reliable product with the Superb 3075 Solar PCU. Its wellbuilt and performs exactly as advertised.
Verified Purchase
Vaira
November 7, 2023
Impressive Power Output
m thoroughly impressed with the power output of the Smarten Superb 3075 Solar PCU. It efficiently converts solar energy and manages it effectively.
Frequently Asked Questions
Displaying Questions 2 / 4
Q1:What is MPPT technology in the Smarten Superb 3075 Solar PCU?
Ans:
MPPT Maximum Power Point Tracking technology is a feature that optimizes the solar power conversion process. It ensures that the solar PCU extracts the maximum available power from the connected solar panels, improving overall efficiency.
Q2:Is the installation process complicated?
Ans:
No, the installation process for the Smarten Superb 3075 Solar PCU is relatively straightforward.
