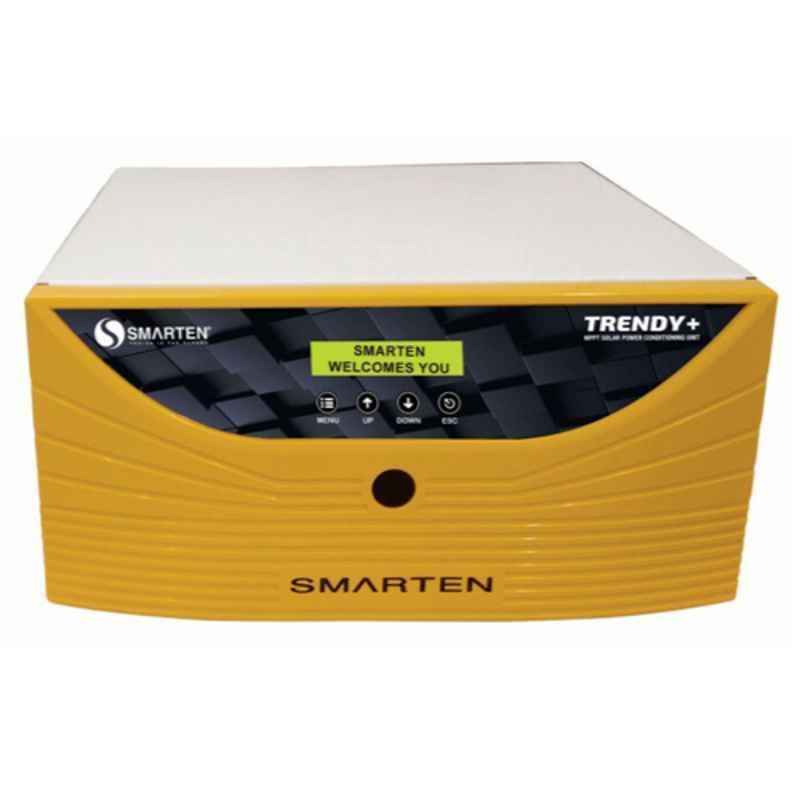

Smarten Trendy Plus 2525VA 24V MPPT Solar PCU Inverter with 100 VOC Range, SPD-TR-262-024-01

Name: Smarten Trendy Plus 2525VA 24V MPPT Solar PCU Inverter with 100 VOC Range, SPD-TR-262-024-01
Brand: Smarten
SKU: MSNE5N8XJLRYKL
Price: 18199 INR
Availability: OutOfStock

₹18,199 (Incl. of all taxes)

₹15,422 ₹2,777 GST

MRP ₹29,807 38% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Smarten
Additional Details	No Load Current: <1.8A Discharging Current @ Full Load: 70A ±2 A Low Battery Warning: 21.6 V ±0.2 V Low Battery Cut: 20.8 V ±0.2 V Switching Element: MOSFET Overload in Backup Mode: Yes Provided, System will Indicate on Display at 101% Load Short Circuit in Backup Mode: System will Shutdown After 3 - Retries in Case of Output Short Circuit Short Circuit in Mains Mode: Mains MCB will Trip Back Feed: System will Shutdown in Case of Back Feed & There is no Retry Over Temperature: Yes Provided, If Heat Sink Temperature Goes Above 100 deg C System will Shut Down Reverse Battery: DC Fuse will Blown Phase to Phase Protection in Mains Mode: Yes Provided by Electronic Solar Charge Controller Type: MPPT Max Panel Wattage Can Be Connected: 1800 W Maximum PV Voltage: 100 ±2 V Maximum Battery Current: 50 Amp Efficiency: > 93% Reverse PV Protection: Yes Provided, It will also Display on LCD Panel Switches: Menu(Select), Up, Down & Esc Reverse Current Flow to PV: Yes Provided Sharing of Current When PV & Grid Both Are Available: If PV Power is not Sufficient Enough to Charge the Battery, System will Start Sharing Battery Charging from PV & Grid DOD Definition(Depth of Discharge): Mains will be Connect When Battery Voltage Reach at Defined Value of the Battery Voltage DOD (Depth of Discharge): 20% - if Battery Voltage is 25.0 V ±0.2 V 30%- if Battery Voltage is 24.0 V ±0.2 V 40%- if Battery Voltage is 23.0 V ±0.2 V 50%- if Battery Voltage is 22.0 V ±0.2 V
Battery	Battery Quantity 12 V 100 Ah to 220 Ah: 2
Battery Type	LA / Tubular / SMF
Capacity	2525 VA
Change over time UPS mode	< 10 msec
Change over time WUPS mode	< 25 msec
Cooling	Temp. Controlled Fan
Float Charging voltage	27.4 V ±0.2 V
Frequency Range	48 Hz to 52 Hz
Input	Mains AC Low Cut UPS Mode: 175 V AC ±10 V AC Mains AC Low Cut Recovery UPS Mode: 185 V AC ±10 V AC Mains AC High Cut UPS Mode: 265 V AC ±10 V AC Mains AC High Cut Recovery UPS Mode: 255 V AC ±10 V AC Mains AC Low Cut WUPS Mode: 90 V AC ±10 V AC Mains AC Low Cut Recovery W.UPS Mode: 110 V AC ±10 V AC Mains AC High Cut W.UPS Mode: 295 V AC ±10 V AC Mains AC High Cut Recovery W.UPS Mode: 285 V AC ±10 V AC Mains Charging Enable/Disable: Yes Provided, You Can Set by Front Switch
Model	Trendy+ 2525VA/24V MPPT Solar PCU
Output Frequency	50Hz ±0.2 Hz
Output Voltage	220 V AC ±10%
Output Waveform	Pure Sine Wave 5% THD
Voltage	24 V
Country of origin	India
Manufacturer Details	Smarten Power Systems Pvt. Ltd., Corporate Office: Plot No - 374, Pace City-II, Sector 37, Gurugram, Haryana 122001
Packer Details	Smarten Power Systems Pvt. Ltd., Corporate Office: Plot No - 374, Pace City-II, Sector 37, Gurugram, Haryana 122001
Common/Generic Name	MPPT Solar PCU
Dimensions LxWxH	42.5x31.5x33.5 cm
Weight	25 kg

Show All Specifications

Product Details

Smarten Trendy Plus 2525VA 24V MPPT Solar PCU Inverter with 100 VOC Range, SPD-TR-262-024-01 is a premium quality product from Smarten . Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All Smarten Trendy Plus 2525VA 24V MPPT Solar PCU Inverter with 100 VOC Range, SPD-TR-262-024-01 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Smarten Trendy Plus 2525VA 24V MPPT Solar PCU Inverter with 100 VOC Range, SPD-TR-262-024-01, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Smarten products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Smarten Solar Inverter .
