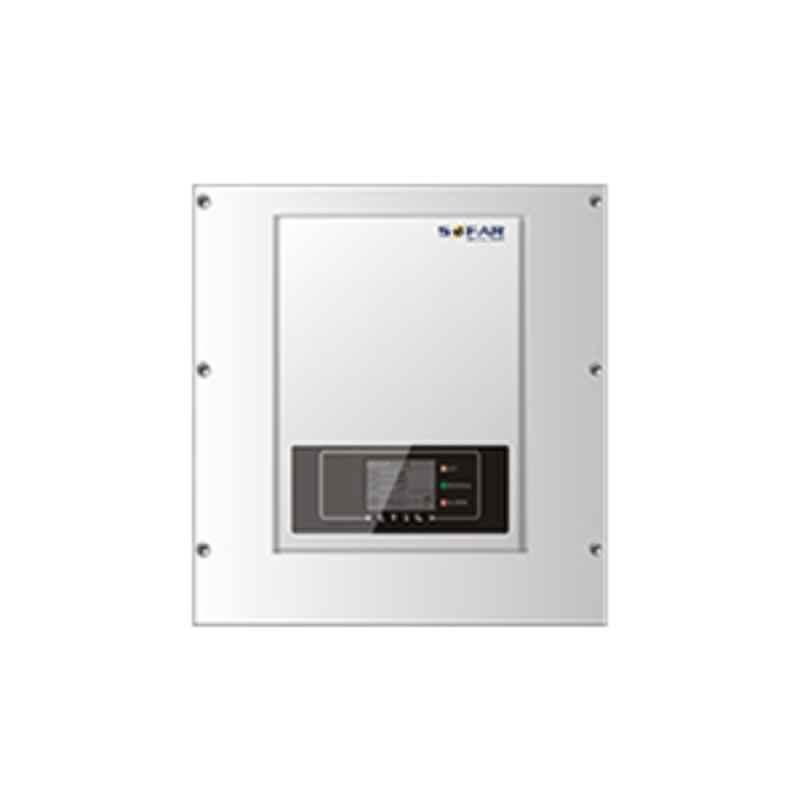

Sofar 11KTL-X 10000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch

Name: Sofar 11KTL-X 10000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch
Brand: sofar
SKU: MSN457MRPLNQ9J
Price: 78676 INR
Availability: OutOfStock

₹78,676 (Incl. of all taxes)

₹74,929 ₹3,747 GST

MRP ₹85,500 7% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Small Size & Light weight.
Built-in DRM Port & Logic.
It has DC Reverse Polarity Protection, DC Switch, Over/Under Voltage, Over Current, Over Temperature & Anti-Islanding Protection.
Low Maintenance Cost, Real Time Precise MPPT Algorithm for Max Harvest, Reactive Power Adjustable, Self Power Reducer When Over Frequency & Remote Active/Reactive Power Limit Control.

Show All Key Features

Product Specifications

Brand	sofar
Altitude	Max Operating: 2000 m
Cooling	Natural
Degree of Protection	IP65
Display Size	4 inch
Display Type	LCD
Efficiency	Max: 98.3% MPPT: 99.9% European Weighted: 98%
Frequency	Nominal: 50-60 Hz Grid: 45-55 Hz/54-66 Hz
Input Power	PV (Max): 14630 Wp
Input Voltage	1000 V
Max DC Power	Single MPPT: 6200 W
Max input current per MPPT (A)	11/11 Amp DC Short Circuit: 14 Amp
Maximum output power	11000 VA
Model No	11KTL-X
Modes	Communication: RS485, Ethernet/Wi-Fi/GPRS (Optional) & SD Card
Mppt Voltage Range	Operating: 160-960 V Full Power: 480-850 V
No Of MPPT	Dual
Noise	<29 dB
Number of Phases	Three Phase
Output Current	15.9 Amp
Output Power	10000 W
Rated Input Voltage	600 V
Relative Humidity	0-100%
Standard	EMC: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 & EN 61000-6-4 Safety: IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068 (1, 2, 14, 30) & IEC60255 Grid: AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AE-N 4105, CEI 0-21, EN50549, G83, RDI699, UTE C15-712-1, EN50530 & NB/T32004
Start-up Voltage	200 V
Switch Type	DC Switch
THDI	<3%
Temperature Range	-25 to 60 deg C
Topology	Transformerless
Voltage Range	Grid: 310-480 V AC
Country of origin	China
Manufacturer Details	Shenzhen Sofarsolar Co. Ltd., 26th Floor, Office B-No. 1, Wuxi 66 Plaza, No. 139, Renmin Middle Road, Liangxi District, Wuxi
Packer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Importer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Common/Generic Name	Solar Inverter
Dimensions LxWxH	45.7x45.2x20.2 cm
Weight	22 kg

Show All Specifications

Product Details

The Sofar 11KTL-X 10000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch by sofar is a top-of-the-line solar inverter designed for maximum efficiency and performance. This inverter boasts a noise level of <29 dB, input voltage of 1000V, and meets various standards for safety and grid compatibility. With a maximum output power of 11000 VA and output current of 15.9 Amp, it delivers reliable power conversion. Key features include small size & light weight, built-in DRM Port & Logic, DC Reverse Polarity Protection, and advanced protection mechanisms. Perfect for residential or commercial solar installations, this inverter offers low maintenance costs and precise MPPT algorithm for optimal energy harvest.
