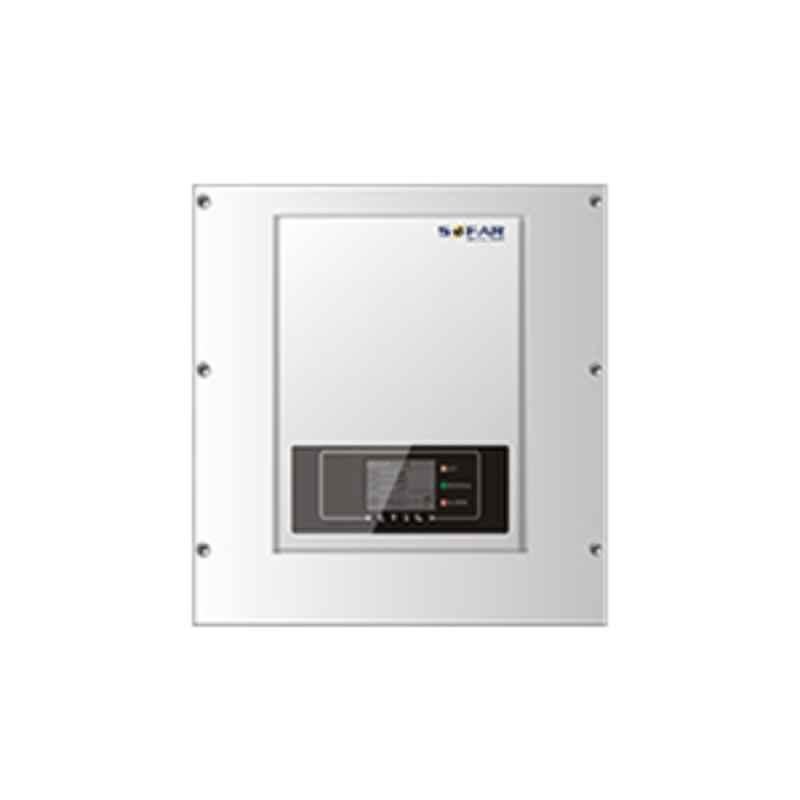

Sofar 12KTL-X 12000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch

Name: Sofar 12KTL-X 12000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch
Brand: sofar
SKU: MSNPKEP6Z0WD9G
Price: 87969 INR
Availability: OutOfStock

₹87,969 (Incl. of all taxes)

₹83,780 ₹4,189 GST

MRP ₹90,000 2% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Small Size & Light weight.
Built-in DRM Port & Logic.
It has DC Reverse Polarity Protection, DC Switch, Over/Under Voltage, Over Current, Over Temperature & Anti-Islanding Protection.
Low Maintenance Cost, Real Time Precise MPPT Algorithm for Max Harvest, Reactive Power Adjustable, Self Power Reducer When Over Frequency & Remote Active/Reactive Power Limit Control.

Show All Key Features

Product Specifications

Brand	sofar
Altitude	Max Operating: 2000 m
Cooling	Natural
Degree of Protection	IP65
Display Size	4 inch
Display Type	LCD
Efficiency	Max: 98.3% MPPT: 99.9% European Weighted: 98%
Frequency	Nominal: 50-60 Hz Grid: 45-55 Hz/54-66 Hz
Input Power	PV (Max): 15960 Wp
Input Voltage	1000 V
Max DC Power	Single MPPT: 6850 W
Max input current per MPPT (A)	11/11 Amp DC Short Circuit: 14 Amp
Maximum output power	13200 VA
Model No	12KTL-X
Modes	Communication: RS485, Ethernet/Wi-Fi/GPRS (Optional) & SD Card
Mppt Voltage Range	Operating: 160-960 V Full Power: 575-850 V
No Of MPPT	Dual
Noise	<29 dB
Number of Phases	Three Phase
Output Current	19.1 Amp
Output Power	12000 W
Rated Input Voltage	600 V
Relative Humidity	0-100%
Standard	EMC: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 & EN 61000-6-4 Safety: IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068 (1, 2, 14, 30) & IEC60255 Grid: AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AE-N 4105, CEI 0-21, EN50549, G83, RDI699, UTE C15-712-1, EN50530 & NB/T32004
Start-up Voltage	200 V
Switch Type	DC Switch
THDI	<3%
Temperature Range	-25 to 60 deg C
Topology	Transformerless
Voltage Range	Grid: 310-480 V AC
Country of origin	China
Manufacturer Details	Shenzhen Sofarsolar Co. Ltd., 26th Floor, Office B-No. 1, Wuxi 66 Plaza, No. 139, Renmin Middle Road, Liangxi District, Wuxi
Packer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Importer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Common/Generic Name	Solar Inverter
Dimensions LxWxH	45.7x45.2x20.2 cm
Weight	22 kg

Show All Specifications

Product Details

The Sofar 12KTL-X 12000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch by sofar is an advanced solar inverter designed for high performance and reliability. With noise levels below 29 dB, it operates quietly and efficiently. It boasts a maximum output power of 13200 VA and is equipped with a DC Switch for added convenience. The inverter meets various industry standards for safety, EMC, and grid synchronization. Its key features include small size, light weight, built-in DRM port, DC Reverse Polarity Protection, and Real Time Precise MPPT Algorithm for maximum harvest. It also offers over/under voltage, over current, over temperature, and anti-islanding protection for peace of mind. With low maintenance costs and remote power limit control, this inverter is a top choice for solar energy systems.
