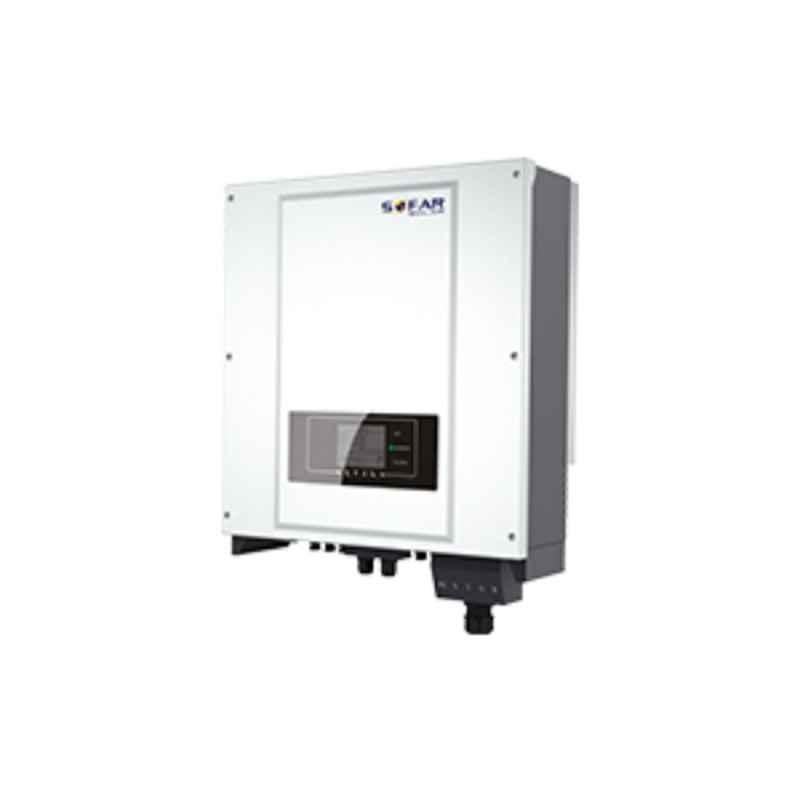

Sofar 20000TL-G2 20000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch

Name: Sofar 20000TL-G2 20000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch
Brand: sofar
SKU: MSN4K6ZRYPX3KQ
Price: 115227 INR
Availability: OutOfStock

₹115,227 (Incl. of all taxes)

₹109,740 ₹5,487 GST

MRP ₹124,000 7% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Built-in DRM Port & Logic.
I-V Curve Scanning Function.
Built-in SPD, Over/Under Pressure, Over Current, Over Temperature & Island Protections.
Low Maintenance Cost, Real Time Precise MPPT Algorithm for Max Harvest, Reactive Power Adjustable, Self Power Reducer When Over Frequency & Remote Active/Reactive Power Limit Control.

Show All Key Features

Product Specifications

Brand	sofar
Altitude	Max Operating: 2000 m
Cooling	Natural
Degree of Protection	IP65
Display Size	4 inch
Display Type	LCD
Efficiency	Max: 98.4% MPPT: 99.9% European Weighted: 98%
Frequency	Nominal: 50-60 Hz Grid: 45-55 Hz/54-66 Hz
Input Power	PV (Max): 26600 Wp
Input Voltage	1100 V
Max DC Power	Single MPPT: 13000 W
Max input current per MPPT (A)	24/24 Amp DC Short Circuit: 30 Amp
Maximum output power	22000 VA
Model No	20000TL-G2
Modes	Communication: RS485, Ethernet/Wi-Fi/GPRS (Optional) & SD Card
Mppt Voltage Range	Operating: 230-960 V Full Power: 480-850 V
No Of MPPT	Dual
Noise	<30 dB
Number of Phases	Three Phase
Output Current	32 Amp
Output Power	20000 W
Rated Input Voltage	620 V
Relative Humidity	0-100%
Standard	EMC: EN 61000-6-2, EN 61000-6-3, EN 61000-6-3-l & EN 61000-3-12 Safety: IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14 & 30) & IEC 60255 Grid: AS/NZS 4417, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21, EN 50549, G59, P.O. 12.3, RD I699, UTE C15-712-1, EN 50530 & NB/T32004
Start-up Voltage	250 V
Switch Type	DC Switch
THDI	<3%
Temperature Range	-25 to 60 deg C
Topology	Transformerless
Voltage Range	Grid: 310-480 V AC
Country of origin	China
Manufacturer Details	Shenzhen Sofarsolar Co. Ltd., 26th Floor, Office B-No. 1, Wuxi 66 Plaza, No. 139, Renmin Middle Road, Liangxi District, Wuxi
Packer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Importer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Common/Generic Name	Solar Inverter
Dimensions LxWxH	66.6x51.2x25.4 cm
Weight	37 kg

Show All Specifications

Product Details

The Sofar 20000TL-G2 Three Phase Transformerless PV Grid Tied Inverter by sofar is a high-performance solar inverter designed for maximum efficiency and reliability. With a noise level of less than 30 dB, this inverter operates quietly while delivering an impressive maximum output power of 22000 VA. It features built-in DRM port & logic, I-V curve scanning function, built-in SPD, and various protection mechanisms for safe and efficient operation. The inverter also boasts a real-time precise MPPT algorithm for maximum harvest, reactive power adjustability, and remote active/reactive power limit control. With easy maintenance and high-quality standards, this inverter is a top choice for commercial solar installations.
