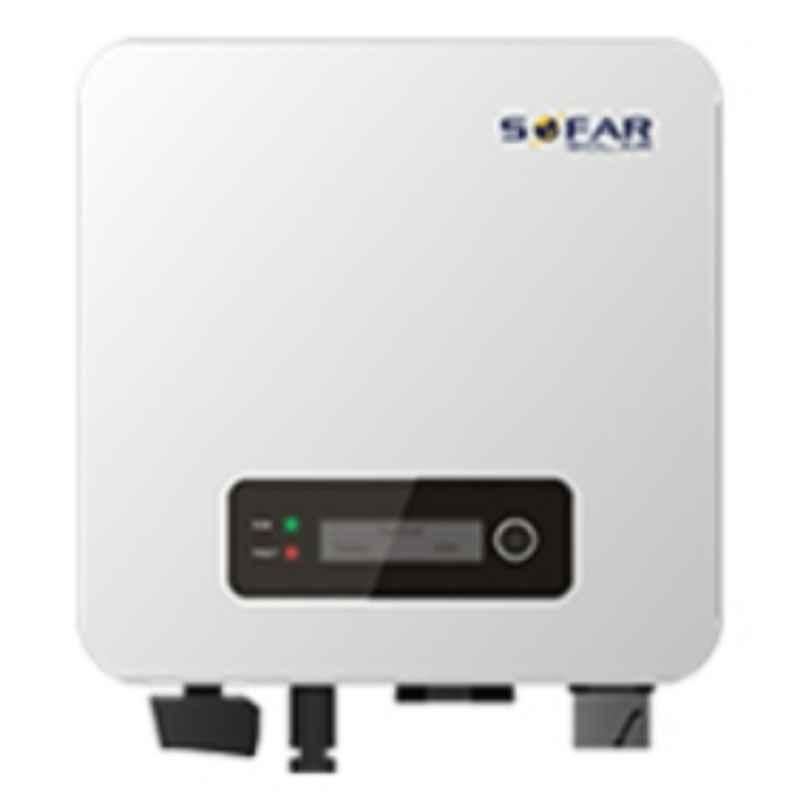

Sofar 2200TL-G3 2200W Single Phase Transformerless PV Grid Tied Inverter

Name: Sofar 2200TL-G3 2200W Single Phase Transformerless PV Grid Tied Inverter
Brand: sofar
SKU: MSNG9VNREJ1DKP
Price: 24160 INR
Availability: OutOfStock

₹24,160 (Incl. of all taxes)

₹23,009 ₹1,151 GST

MRP ₹30,000 19% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Built-in Zero Export Function.
Flexible & Economical System Solution.
Light Weight, Quick & Easy to Install.
High-Yield, Low Maintenance Cost & Intelligent Grid Management.
It has Anti-Islanding, DC Reverse Polarity, Leakage Current, Over Temperature, Over Voltage Protection, Over Current & Earth Fault Protection.

Show All Key Features

Product Specifications

Brand	sofar
Altitude	Max Operating: 2000 m
Cooling	Natural Convection
Degree of Protection	IP65
Display Type	LCD + LED
Efficiency	97.5%
Frequency	50-60 Hz
Input Power	PV (Max): 3000 Wp
Input Voltage	500 V
Max input current per MPPT (A)	12 Amp DC Short Circuit Current: 15 Amp
Maximum output power	2200 VA
Model No	2200TL-G3
Modes	Communication: RS485, Wi-Fi/GPRS (Optional) & USB
Mppt Voltage Range	Operating: 50-500 V Full Power: 200-450 V
No Of MPPT	Single
Noise	25 dB
Number of Phases	Single Phase
Output Current	10.6 Amp
Output Power	2200 W
Rated Input Voltage	360 V
Rated Output Current	9.6 Amp
Standard	EMC: EN 61000-6-1, EN 61000-6-3, EN 61000-3-2 & EN 61000-3-3 Safety: IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14 & 30) & IEC 62109-1/2 Grid: AS 4777, DE V 124-1 0 V 0 0 , VDE V 0126-1-1, VDE-AR-N 4105, G83/2 & C10/11 & RD 1699
Start-up Voltage	70 V
THDI	<3%
Temperature Range	-30 to 60 deg C
Topology	Transformerless
Voltage Range	Grid: 180-276 V AC
Country of origin	China
Manufacturer Details	Shenzhen Sofarsolar Co. Ltd., 26th Floor, Office B-No. 1, Wuxi 66 Plaza, No. 139, Renmin Middle Road, Liangxi District, Wuxi
Packer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Importer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Common/Generic Name	Solar Inverter
Dimensions LxWxH	30.3x26.05x1.8 cm
Weight	5.5 kg

Show All Specifications

Product Details

The Sofar 2200TL-G3 2200W Single Phase Transformerless PV Grid Tied Inverter by sofar is a top-of-the-line solar inverter, boasting noise levels of just 25 dB. With an input voltage of 500 V, this inverter meets various standards for EMC, safety, and grid compatibility. It offers a maximum output power of 2200 VA and an output current of 10.6 Amp, with a rated output current of 9.6 Amp. The built-in Zero Export Function, along with its lightweight design and easy installation process, make it a flexible and economical choice for high-yield solar systems. Additionally, the inverter features intelligent grid management and multiple protection mechanisms for peace of mind.
