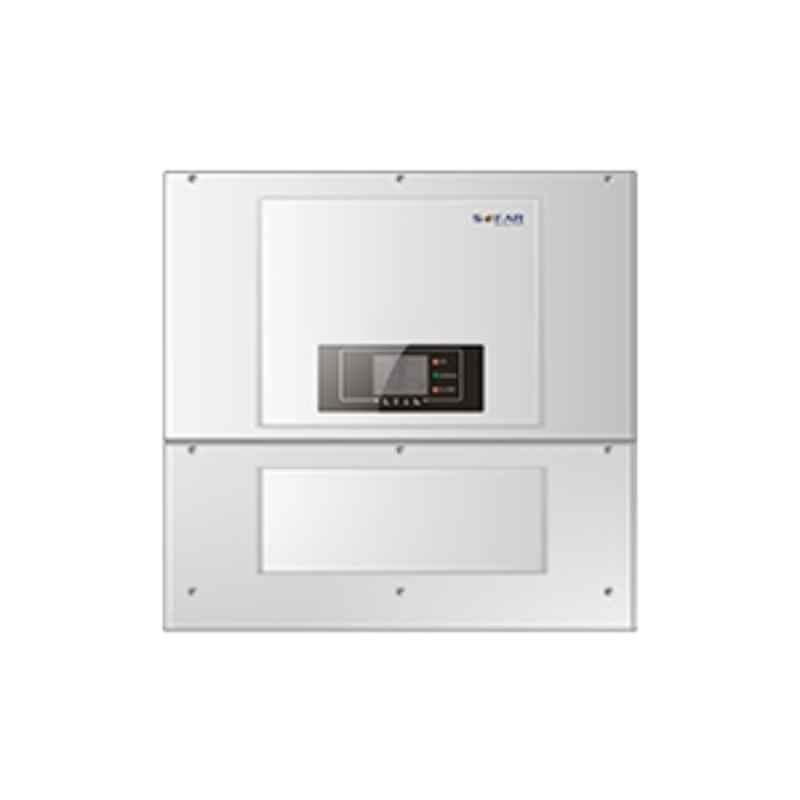

Sofar 70000TL 70000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch

Name: Sofar 70000TL 70000W Three Phase Transformerless PV Grid Tied Inverter with DC Switch
Brand: sofar
SKU: MSNV5OOR61XV56
Price: 241605 INR
Availability: OutOfStock

₹241,605 (Incl. of all taxes)

₹230,100 ₹11,505 GST

MRP ₹260,000 7% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Fuse Free Design.
Built-in DRM Port & Logic.
Sound, Light Alarm Function & DC SPD Class 2.
It has Over/Under Voltage, Over Current, Over Temperature & Island Protections.
Real Time Precise MPPT Algorithm for Max Harvest, Low Maintenance Cost, Reactive Power Adjustable, Self Power Reducer When Over Frequency & Remote Active/Reactive Power Limit Control.

Show All Key Features

Product Specifications

Brand	sofar
Altitude	Max Operating: 4000 m
Cooling	Fan
Degree of Protection	IP65
Display Size	4 inch
Display Type	LCD
Efficiency	Max: 98.6% MPPT: 99.9% European Weighted: 98.4%
Frequency	Nominal: 50-60 Hz Grid: 45-55 Hz/54-66 Hz
Input Power	PV (Max): 93100 Wp
Input Voltage	1000 V
Max input current per MPPT (A)	40/40 & 40 Amp
Maximum output power	60000 VA
Model No	70000TL
Modes	Communication: RS485, Wi-Fi/Ethernet/GPRS (Optional), SD Card & Multi-Function Relay
Mppt Voltage Range	Operating: 250-950 V Full Power: 660-800 V
No Of MPPT	Three
Noise	60 dB
Number of Phases	Three Phase
Output Current	90 Amp
Output Power	70000 W
Rated Input Voltage	700 V
Relative Humidity	0-100%
Start-up Voltage	350 V
Switch Type	DC Switch
THDI	<3%
Temperature Range	-25 to 60 deg C
Topology	Transformerless
Voltage Range	Grid: 422-528 V AC
Country of origin	China
Manufacturer Details	Shenzhen Sofarsolar Co. Ltd., 26th Floor, Office B-No. 1, Wuxi 66 Plaza, No. 139, Renmin Middle Road, Liangxi District, Wuxi
Packer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Importer Details	My Online Solar, MOS, Gandhinagar, Gujarat-382421, info@myonlinesolar.com
Common/Generic Name	Solar Inverter
Dimensions LxWxH	71.3x73.7x29.7 cm
Weight	70 kg

Show All Specifications

Product Details

The Sofar 70000TL Three Phase Transformerless PV Grid Tied Inverter with DC Switch is a reliable and efficient solar inverter designed for maximum power output. With a noise level of 60 dB and an input voltage of 1000 V, this inverter delivers a maximum output power of 60000 VA. It features a fuse-free design, built-in DRM port & logic, and various protection features such as over/under voltage and over temperature protection. The Real Time Precise MPPT Algorithm ensures maximum harvest from your solar panels, while the remote control options make it easy to adjust power settings. Upgrade to the Sofar 70000TL for seamless solar energy conversion.
