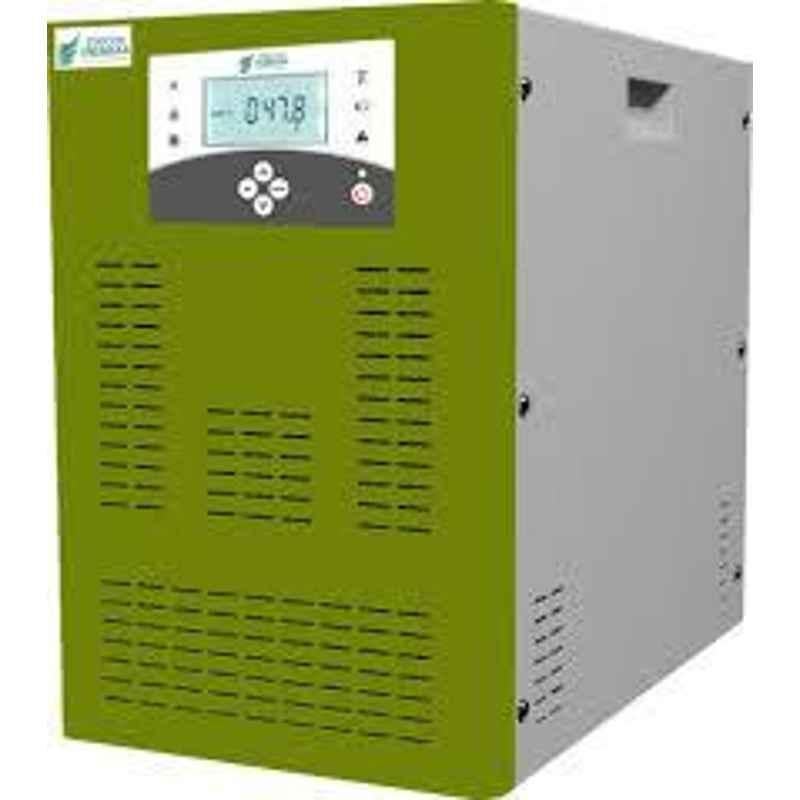

Statcon Seog Series 1Kva 48V Single Phase Mppt Based Off Grid Solar Pcu

Name: Statcon Seog Series 1Kva 48V Single Phase Mppt Based Off Grid Solar Pcu
Brand: Statcon
SKU: MSNM9XYXEGOPKJ
Price: 39725 INR
Availability: OutOfStock

₹39,725 (Incl. of all taxes)

₹33,666 ₹6,059 GST

AVAILABLE ON REQUEST

About This Product

Key Features

5 Mode Priority Selection.
Industrial Grade Inverter.
Monitoring & Plug N Play.
Advanced DSP Control Technology.
Largest In-Class LED Display.
High Efficiency MPPT Technology.
Easy Fault Identification Process.
Benchmark Technology for Solar.
Unparalleled Service Support.
Priority Mode: Mode 1:- Solar Priority Mode with No Grid Charging.
Mode 2:- For Areas with Reliable Grid.
Mode 3:- To Extract Maximum Solar Charged Energy From Battery.
Mode 4:- Battery Extra Backup Mode.
Mode 5:- Normal Home Inverter Mode.
Faults Displayed On LCD: PV Over Voltage, System Short Circuit, System Over Load, DC Over Voltage, AC Over Frequency & System Over Temperature.
GPRS: All Parameters can be Viewed Over Internet by Accessing Through a User Id & Password (Add On Feature).
Wi-Fi: Download the Energiaa Lite App to Easily Observe All Parameters of Your Seog Series Solar PCU (Add on Feature).
Micro SD Card: All Parameters can be Logged in Micro SD Memory Card as per Date/Time, Logged Parameter can be Viewed/Saved through Laptop/PC.

Show All Key Features

Product Specifications

Brand	Statcon
AC Voltage Range	150-270 V AC
Altitude	Above Sea Level: 1000 m
Battery Type	Lead Acid Tubular, VRLA, LMLA & Li-ion (Selected Models)
Battery Voltage	Nominal: 48 V
Customer Care Number	1800-891-3319
Display	Battery Voltage, Battery Current (Charging/Discharging), Battery Temperature, Battery Charging Mode, System Temperature & PV Power (kW)
Efficiency	88%
Frequency Range	47-53 Hz
Housing	Floor Standing
Humidity	Max. 95% Non-Condensing
LED Indicator Display	Load on Grid/Grid Charging/Grid Available, Battery Low & Fault
Load Capacity	Nominal: 1 KW
Number of Phases	1
Operating Voltage Range	PV: 70-140 V
Output Frequency	50 Hz
Output Voltage	Nominal: 230 V AC
Protection Class	IP21
Series	SEOG
Standard	IEC 61683 IEC 60529
THD	Less than 3%
Type of cooling	Temperature Controlled Fan Forced
Voltage at Open Circuit (Voc)	190 V
Country of origin	India
Manufacturer Details	STATCON ENERGIAA PRIVATE LIMITED, B-81, Sector 63 Rd, B Block, Sector 63, Noida, Uttar Pradesh Sector 63, Noida , Gautam Buddha Nagar, Uttar Pradesh-201301, India , Phone: +91-8448233444
Packer Details	STATCON ENERGIAA PRIVATE LIMITED, B-81, Sector 63 Rd, B Block, Sector 63, Noida, Uttar Pradesh Sector 63, Noida , Gautam Buddha Nagar, Uttar Pradesh-201301, India , Phone: +91-8448233444
Common/Generic Name	Off Grid Solar PCU
Dimensions LxWxH	300x504x515 mm
Weight	45 kg

Show All Specifications

Product Details

The Statcon Seog Series 1Kva 48V Single Phase Mppt Based Off Grid Solar Pcu is a top-of-the-line solar inverter from Statcon. With standard compliance to IEC 61683 and IEC 60529, it offers a voltage at open circuit (Voc) of 190V and an efficiency of 88%. This industrial-grade inverter features advanced DSP control technology, high efficiency MPPT technology, and 5 mode priority selection. The largest in-class LED display allows easy monitoring, while fault identification is simplified with faults displayed on the LCD. This solar PCU is truly a benchmark technology for solar with unparalleled service support. Monitor all parameters over the internet or through the Energiaa Lite App for easy observation.
