What is the power consumption?

The maximum consumption is 10.5watts.

Home
IT & Electronics
Network Devices
WiFi Access Point Routers

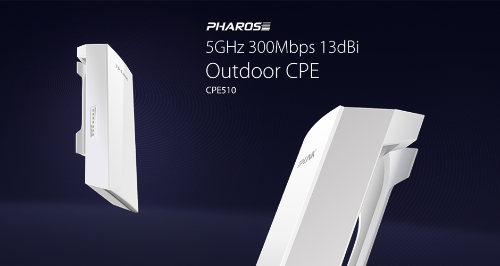

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, CPE510

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, CPE510

Hover to Zoom

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, CPE510

Name: TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, CPE510
Brand: TP-Link
SKU: MSN457MPN0EQ9J
Price: 3599 INR
Availability: InStock
Rating: 4.67 (33 reviews)

4.7

(33 Reviews)

₹3,599 (Incl. of all taxes)

₹3,050 ₹549 GST

MRP ₹6,999 48% OFF

Buy More & Save More

Qty 2

₹3,572 /pc

48% OFF

Qty 3

₹3,558 /pc

49% OFF

Qty 4 - 5

₹3,545 /pc

49% OFF

Qty 6 - 7

₹3,518 /pc

49% OFF

Qty 8+

₹3,491 /pc

50% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹3,499

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Cash on Delivery

Genuine Product

Easy Exchange

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

TP-Link is top brand in wifi access point routers, preferred by 78% of the users

28% of the users prefer wifi access point routers in ₹3000-5000 price range

About This Product

Key Features

Latest Version Available.
Adjustable Transmission Power And Passive Poe Adapter Supports upto 60 m.
System-Level Optimizations: Optimized IGMP Snooping, Proxy for Multicast Applications Hardware Watch Dog.
Centralized Management System-Pharos Control.
Ap, Client, Bridge, Repeater, AP Router & AP Client Router (WISP) Operation Modes.
Passive Poe Adapter Supports up to 60 m (200 ft) Power Over Ethernet Deployment & Allows the Device to be Reset Remotely.

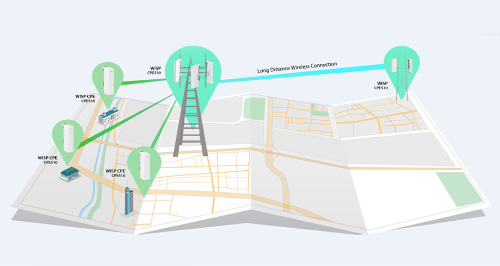

System-Level Optimizations for More than 15 km Long Range Wireless Transmission.
Adjustable Transmission Power from 0 to 23DBM/200MW.

Show All Key Features

Product Specifications

Brand	TP-Link
Antenna Type	Built-in 13 dBi 2x2 Dual-Polarized Directional Antenna Beam Width: 45 deg & 30 deg
Certification	CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark & KC-mark CE, FCC, RoHS & IPX5
Colour	Power Status LEDs: Green
Configuration	Wireless: Pharos Maxterm TDMA Technology 802.11a, n Modes Selectable Channel Width: 5, 10, 20, 40 MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection WDS Enable, Disable & Security: WPA, WPA2, WPA-PSK, WPA2-PSK (AES, TKIP) Encryption, 64, 128, 152-bit WEP Encryption SSID Broadcast Enable, Disable & Multi-SSID with VLAN Tagging Distance, ACK Timeout Setting & Wireless MAC Address Filter Wireless Advanced, Beacon Interval, RTS Threshold, Fragmentation & Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia
Customer Care Number	1800 209 4168 & Email Id: support.in@tp-link.com
Dimensions	224x79x60 mm POE Adapter: 110x57x33.5 mm
Efficiency	>80%
Enclosure	Outdoor ASA Stabilized Plastic Material & IPX5 Waterproof Certification
Frequency	5.15-5.85 GHz
Input	100-240 V AC & 50-60 Hz
Interface	1 10, 100 Mbps Shielded Ethernet Port, 1 Grounding Terminal & 1 Reset Button POE Adapter: 1 AC Jack with Earth Ground, 1 10, 100 Mbps Shielded Ethernet Port (Power + Data) & 1 10, 100 Mbps Shielded Ethernet Port
Item Code	CPE510
Memory	64 MB DDR2 RAM & 8 MB Flash
Number of Buttons	Remote Reset Button
Operating Humidity	10-90% (Non-Condensing)
Operating Temperature	0 to 40 deg C
Output	24 V DC, 0.5 Amp Max & +4, 5 Pins & -7, 8 Pins
Package Contents	Outdoor Wireless CPE, 24V 0.5A Passive POE Adapter, Pole Mounting Straps, AC Power Cord & Installation Guide
Power Consumption	Max. 10.5 W
Power Supply	Passive Power over Ethernet via LAN0 & Voltage range: 16-27 V DC
Power Transmission	23 dBm & 200 mW
Protection	15 kV ESD Protection & 6 kV Lightning Protection
Protocol	Proprietary: TDMA Mode
Remote Management Protocol	Discovery & Remote Management via Pharos Control application, HTTP/HTTPS Web-Based Management, System Log, SNMP Agent, Ping Watch Dog, Dynamic DDNS & SSH Server
Speed	Wireless: Upto 300 Mbps Upto 144.4 Mbps Upto 72.2Mbps (10MHz,Dynamic) & Upto 36.1 Mbps
Storage Humidity	5-90% (Non-Condensing)
Storage Temperature	-40 to 70 deg C
Suitable For	Outdoor
System	Tools: Wireless Signal Quality Indicators, Signal Strength, Noise, Transmit CCQ, CPU, Memory, Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP, Spectrum Analyzer, Speed Test, Ping & Traceroute
System Requirements	Windows: 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare & UNIX or Linux
Warranty	3 Years
Wireless	Wireless: IEEE 802.11a/n
processor	Qualcomm Atheros Enterprise 560MHz CPU & MIPS 74Kc
Country of origin	China
Manufacturer Details	TP-Link, TP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Packer Details	TP-LINK India Private Limited, Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra 401208
Importer Details	TP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Common/Generic Name	Outdoor CPE
Dimensions LxWxH	224x79x60 mm
Weight	300 g

Show All Specifications

Product Details

The TP-Link 5GHz 300Mbps 13dBi Outdoor CPE is a great product for those who need a reliable and powerful access point router. It offers up to 300Mbps of data transfer speed and up to 13dBi of wireless signal strength, making it ideal for streaming HD video or gaming online. TP-Link's Access Point Router is perfect for those in need of a reliable and affordable router. With a 5.15-5.85 GHz frequency, this router is perfect for use in many different environments. Additionally, the router comes with a 3-year warranty, ensuring that you will be able to use it for many years to come. Finally, the operating temperature of 0 to 40 deg C and operating humidity of 10–90% (Non-Condensing) makes this router perfect for use in many different environments. The product is an access point router that is long lasting and has stable performance. It is a great product for those who need an access point router that will last them a long time and provide them with consistent performance, even in outdoor installations requiring extended range and dependable wireless connectivity.
