How much is the memory?

It has a 64 MB DDR2 RAM and 8 MB Flash.

What wireless band does the CPE610 use?

The CPE610 uses the 5GHz wireless band for outdoor network connectivity.

What is the wireless speed class of this CPE?

The CPE610 is rated at up to 300Mbps wireless throughput.

What antenna gain does this model have?

The CPE610 features a 23dBi directional antenna for outdoor wireless links.

Is this CPE designed for outdoor use?

Yes, the CPE610 is specifically designed for outdoor wireless deployments.

Can it be used for point-to-point wireless links?

Its directional 23dBi antenna makes it suitable for outdoor wireless link applications.

Home
IT & Electronics
Network Devices
WiFi Access Point Routers
TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access point with Dual Polarized Directional Antenna

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access point with Dual Polarized Directional Antenna

Hover to Zoom

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access point with Dual Polarized Directional Antenna

Name: TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access point with Dual Polarized Directional Antenna
Brand: TP-Link
SKU: MSNL5GL12J0YK4
Price: 5299 INR
Availability: InStock
Rating: 4.58 (47 reviews)

4.6

(47 Reviews)

₹5,299 (Incl. of all taxes)

₹4,490 + ₹809 GST

MRP ₹6,999 24% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹5,199

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Exchange

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

TP-Link is top brand in wifi access point routers, preferred by 79% of the users

9% of the users prefer wifi access point routers in ₹5000-6000 price range

About This Product

Key Features

300 Mbps 5GHz Wireless-Provides high speed outdoor connectivity for suitable point to point deployments.

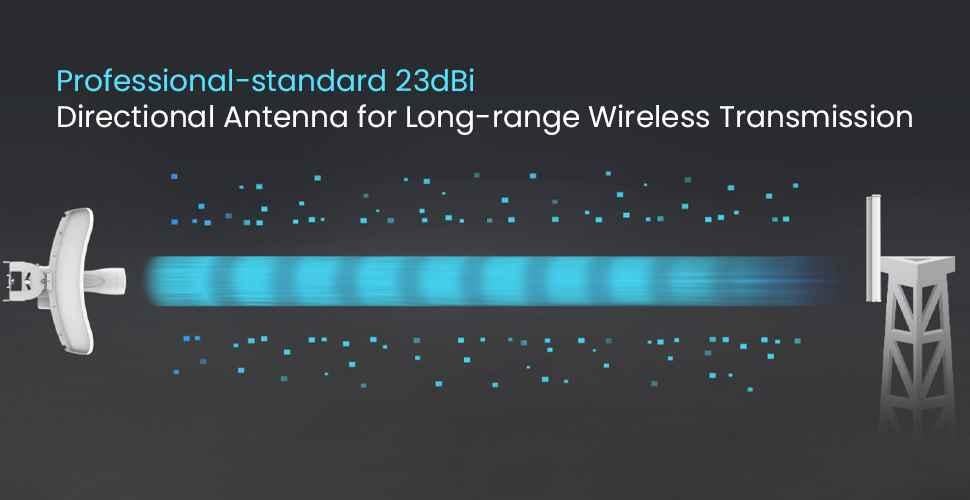

23dBi Directional Antenna-Focuses wireless transmission for long distance outdoor network links.
2x2 MIMO Technology-Supports efficient wireless transmission across multiple spatial streams.
Outdoor CPE Design-Built for long distance wireless networking between buildings or locations.
Passive PoE Support-Allows power and data transmission through a single Ethernet cable.

Show All Key Features

Product Specifications

Brand	TP-Link
Antenna Type	Gain: 23 dBi & Beamwidth: 9 deg Azimuth, 7 deg Elevation
Certification	CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark & KC-mark CE, FCC, IC, RoHS & IP65
Colour	Power Status LEDs: Green
Configuration	Network: WAN: Static, Dynamic, PPPoE, L2TP, PPTP LAN: Static, Dynamic, DHCP Forwarding: ALG, UPnP, Virtual Server, Port Trigger Security: SPI Firewall, Ping Forbidden, DoS Protection, Access Control & Static Routing Bandwidth Control, IP & MAC Binding & Wireless: Pharos Maxterm TDMA Technology Selectable Channel Width: 5, 10, 20, 40 MHz, Auto Channel Selection & Transmit Power Control Dynamic Frequency Selection WDS Enable, Disable, Security: WPA, WPA2, WPA-PSK, WPA2-PSK Encryption 64, 128, 152-bit WEP Encryption & SSID Broadcast Enable, Disable Multi-SSID with VLAN Tagging Distance, ACK Timeout Setting & Wireless MAC Address Filter Wireless Advanced & Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia
Customer Care Number	1800 209 4168 & Email Id: support.in@tp-link.com
Dimensions	366x280x207 mm POE Adapter: 85.8x43.9x29.7 mm
Efficiency	>84.29%
Enclosure	Material: Outdoor PC Stabilized Plastic & Weatherproof: IP65 Water & Dust Proof Design
Frequency	5.15-5.85 GHz
Input	100-240 V AC & 50-60 Hz
Interface	1 10, 100 Mbps Shielded Ethernet Port & 1 Reset Button POE adapter: 1 AC Jack with Earth Ground, 1 10, 100 Mbps Shielded Ethernet Port & 1 10, 100 Mbps Shielded Ethernet Port
Item Code	CPE610
Memory	64 MB DDR2 RAM & 8 MB Flash
Number of Buttons	Remote Reset Button
Operating Humidity	10-90% (Non-Condensing)
Operating Temperature	0 to 40 deg C
Output	24 V DC, 0.5 Amp Max & +4, 5 Pins & -7, 8 Pins
Package Contents	Outdoor Wireless CPE 24 V 0.5 Amp Passive POE Adapter Pole Mounting Straps AC Power Cord & Installation Guide
Power Supply	Passive Power over Ethernet via LAN 16-27 V DC
Power Transmission	Max. 25 dBm
Protection	15 kV ESD Protection & 6 kV Lightning Protection
Protocol	Proprietary: TDMA Mode
Remote Management Protocol	Discovery & Remote Management via Pharos Control application, HTTP/HTTPS Web-Based Management, System Log, SNMP Agent, Ping Watch Dog, Dynamic DDNS & SSH Server
Speed	Wireless: Upto 300 Mbps Upto 144.4 Mbps Upto 72.2 Mbps & Upto 36.1 Mbps
Storage Humidity	5-90% (Non-Condensing)
Storage Temperature	-40 to 70 deg C
Suitable For	Outdoor
System	Tools: Wireless Signal Quality Indicators, Signal Strength, Noise, Transmit CCQ, CPU, Memory, Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP, Spectrum Analyzer, Speed Test, Ping & Traceroute
System Requirements	Windows: 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare & UNIX or Linux
Warranty	3 Years
Wireless	Wireless: IEEE 802.11a/n
processor	Qualcomm 560MHz CPU & MIPS 74KC
Country of origin	China
Manufacturer Details	TP-Link, TP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Packer Details	TP-LINK India Private Limited, Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra 401208
Importer Details	TP-Link Corporation, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China
Common/Generic Name	Access Point
Dimensions LxWxH	366x280x207 mm
Weight	300 g

Show All Specifications

Product Details

The TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Access point with Dual Polarized Directional Antenna is a great way to extend your wireless network. This access point features two antennas that provide up to 300Mbps of data transfer speed and 23dBi of gain. Looking for an Access Point Router that is high quality and has a nominal price? Look no further than the TP-Link. This router has a frequency of 5.15-5.85 GHz and comes with a 3 year warranty. The operating temperature is 0 to 40 degrees Celsius and the operating humidity is 10-90% (non-condensing). The CPE610 V2 provides 5 GHz wireless up to 300 Mbps using 2x2 MIMO and a 23 dBi directional antenna. It uses a Qualcomm 560 MHz CPU, 64 MB RAM and 8 MB flash, with one shielded 10/100 Mbps LAN/PoE port. Passive PoE supports 16-27 VDC. Its IP65 enclosure, 15 kV ESD and 6 kV lightning protection support outdoor deployments. Its 0-40°C operating range and 10-90% non-condensing humidity range support suitable outdoor network deployments.
