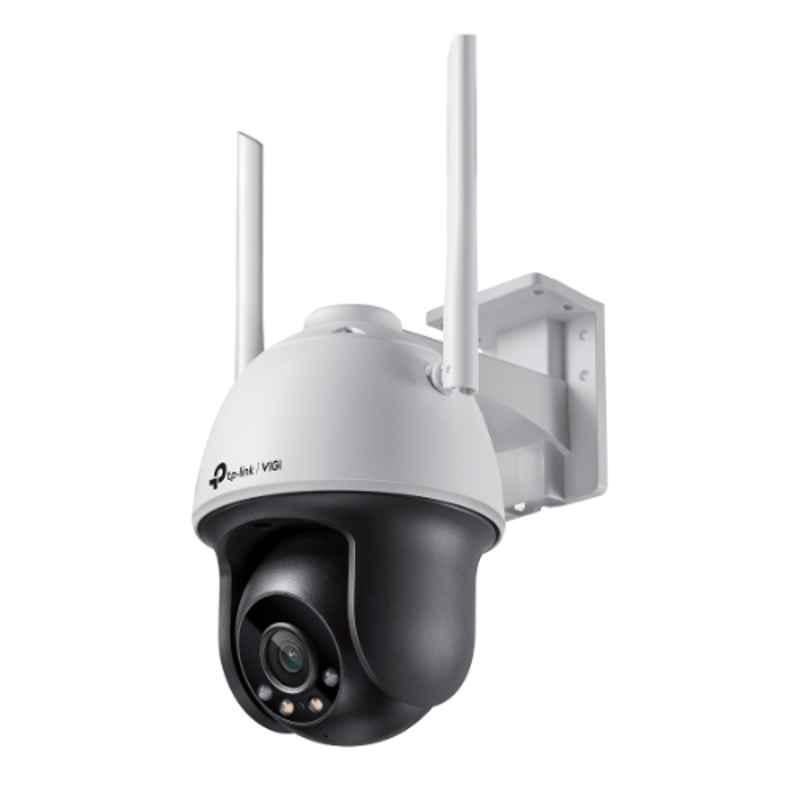

TP-Link VIGI C540-W 4MP Outdoor Full Colour Pan Tilt Smart Wi-Fi Camera with 2 Way Audio, 4mm Lens & IP66 Waterproof

4.7

(20 Reviews)

₹8,439 (Incl. of all taxes)

₹7,151 ₹1,288 GST

MRP ₹9,999 15% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • H.265+.

  • VIGI App.

  • Waterproof.

  • 24h Full-Color.

  • Powerful Pan Tilt.

  • 4MP High Definition.

  • Wireless Outdoor Connection.

  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering).

Show All Key Features

Product Specifications

Brand
Additional Details
Day & Night Mechanism: IR Cut Filter
Pan & Tilt Range: Pan: 0 deg to 350 deg & Tilt: 0 deg to 120 deg
WDR: DWDR & Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR & White Balance Adjustable by Client Software
Smart Event: Area Intrusion Detection, Line-Crossing Detection & Human Detection
Basic Event: Motion Detection, Camera Tampering Detection & Exception Illegal Login
Trigger Notification: ONVIF & HTTPS
Aperture
F1.6
Audio Input
Built-in Microphone
Audio Output
Built-in Speaker
Certification
CE, RCM, BSMI, VCCI, RoHS, NCC, JRF & KC
Digital Zoom
Yes
Frame rate
1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps & 30 fps
IR Range
30 m
Image Enhancement
BLC/3D DNR & Prevent Overexposure to Infrared Light
Image Sensor
1/3 inch Progressive Scan CMOS
Lens Mount
M12
Lens Size
4 mm
Lens Type
Fixed Focal Lens
Material
Plastic
Mega Pixel
4 MP
Minimum Illumination
0 Lux with IR & White Light
Model
VIGI C540-W
Network interface
1xRJ45 10/100M Self-Adaptive Ethernet Port
Noise Reduction Rating
3D DNR
Operating Temperature
-30 to 60 deg C
Package Contents
VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments & Mounting Accessories
Power Consumption
14 W
Power Supply
12 V DC
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP & SSL/TLS
Resolution
2560x1440p, 2304x1296p, 2048x1280p & 1920x1080p
Security
Password Protection, HTTPS Encryption, IP Address Filter & Digest Authentication
Size
Power Plug: 5.5 mm
Storage
Built-In Memory Card Slot, Support MicroSD Card & Up to 256 GB
Video Bit Rate
Main Stream: 256 kbps to 4 Mbps & Sub-Stream: 64-512 Kbps
Video Compression
Sub-Stream: H.265 & H.264
Main Stream: H.265+/H.265/H.264+ & H.264
Video Streaming
Main Stream & Sub-Stream
View Angle
Horizontal FOV: 79 deg, Vertical FOV: 43 deg & Diagonal FOV: 93 deg
Weather Proof rating
IP66
Country of origin
China
Manufacturer Details
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China, Postcode: 518057
Packer Details
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China, Postcode: 518057
Importer Details
TP-Link India Pvt Ltd ,207-A , Modi Tower ,98 Nehru Place ,New Delhi-110019
Common/Generic Name
CCTV Camera
Dimensions LxWxH
12x17.2x19.8 cm
Weight
0.195 kg
Show All Specifications

Product Details

Introducing the Tp-Link Vigi C540-W, your Ultimate Solution for Advanced Outdoor Surveillance. this 4Mp Pan Tilt Network Camera is Designed to Provide you with Exceptional Clarity, Even in Low-Light Conditions, Thanks to its Full-Color Imaging Capability. with a 4mm Lens, this Camera Offers a Wide Field of View, Ensuring that you Capture Every Detail Within its Range. its Pan & Tilt Functionality Allows you to Remotely Adjust the Camera'S Orientation, Giving you the Flexibility to Monitor Different Angles with Ease. Whether It'S Monitoring your Property, a Large Outdoor Area, or a Business Premises, the Vigi C540-W is Up for the Task. Equipped with Reliable Weatherproofing, this Camera Can Withstand Various Environmental Conditions, Ensuring Year-Round Security. its Advanced Motion Detection & Customizable Alerts Keep you Informed of Any Suspicious Activity in Real-Time, Offering Peace of Mind Wherever you Are. with the Tp-Link Vigi C540-W, You'Ll Experience Unparalleled Outdoor Surveillance with Vivid 4Mp Full-Color Images & the Convenience of Remote Control, Making It an Essential Addition to your Security Infrastructure.

Browse through the extensive list of Smart WiFi Cameras at Moglix. Shop online for other TP-Link Smart WiFi Cameras. available at Moglix in the lowest price range.

Read More

Reviews & Ratings

Review with images &
earn 5 Mogli Coins!

TP-Link VIGI C540-W 4MP Outdoor Full Colour Pan Tilt Smart Wi-Fi Camera with 2 Way Audio, 4mm Lens & IP66 Waterproof

4.7

Average Rating based on 20
ratings and 20 reviews

565%
435%
30%
20%
10%

Reviews with images

Customer Review Image
Customer Review Image
Customer Review Image

Verified Purchase

Chandrakant

February 13, 2026

Customer Review Image
Customer Review Image

vigi Camera

Recently i purchased tp link vigi c540 w model for my home. this model has two option for connectivity, using rj45 lan cable and through wifi. when i use lan cable, Camera does not work...so I used PoE Splitter Power Over Ethernet Adapter....and it's on...if we used wifi then also 12 voltage is required to on...adapter is included with camera...in short both mode have to required 12 voltage adapter...overall very good... easily connected with NVR in both model you want...for me this is perfect

Verified Purchase

Gangadhar k

January 26, 2026

Customer Review Image

very nice

good varking

Frequently Asked Questions

Displaying Questions 2 / 3

Q1:How long it takes to deliver??

Ans:

Sir, it depends upon on your area pincode

Q2:Does this come with motion detection capabilities?

Ans:

Yes, the camera is equipped with motion detection features, allowing it to detect and alert you to any movement within its field of view.
