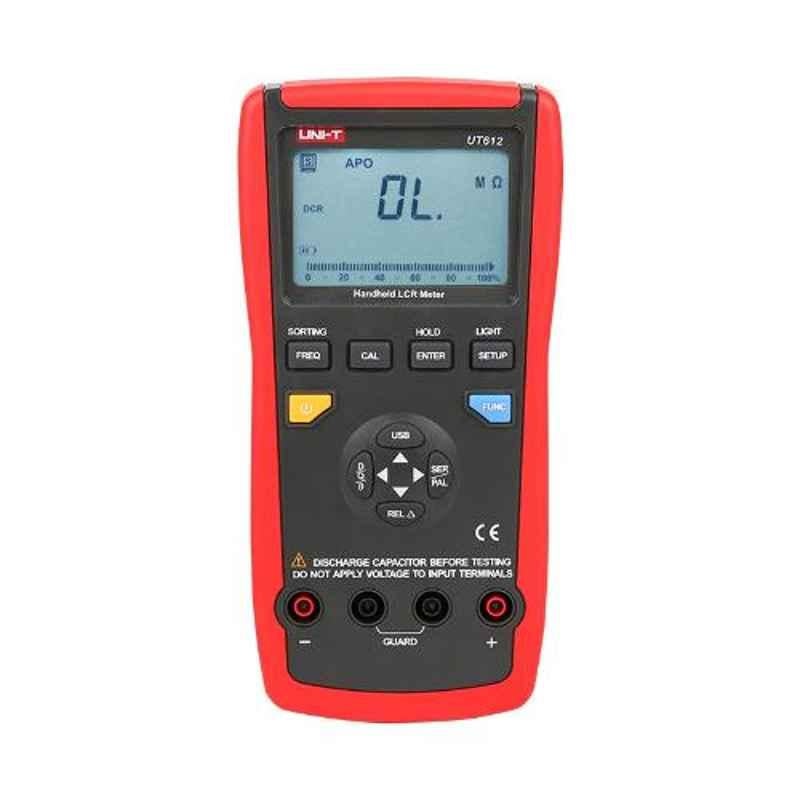

Uni-T 9V Digital Handheld LCR Meter, UT612

Hover to Zoom

Uni-T 9V Digital Handheld LCR Meter, UT612

Name: Uni-T 9V Digital Handheld LCR Meter, UT612
Brand: Uni-T
SKU: MSNM9XYMXXVDKJ
Price: 12994 INR
Availability: OutOfStock

₹12,994 (Incl. of all taxes)

₹11,011 + ₹1,983 GST

MRP ₹15,930 18% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

USB Interface, Relative Mode, Data Hold, Test Frequency Real-time Display, D/Q Resolution, Auto Range, Auto Power Off, Data Hold, Relative Mode, USB Interface, LCD Backlight, Deviation Ratio Measurement, Comparison Function, Calibration Function, Auto LCR Check & Measurement.

Product Specifications

Brand	Uni-T
Display Type	Digital
Battery Voltage	9 V
Capacitance Range	200 pF to 20 mF
Display Count	20000
Display Size	40x63 mm
Item Code	UT612
Resistance Range	20 Ω to 200 MΩ
Additional Details	D/Q Display Count: 2000 Low Battery Indication: ≤6.8 V Inductance: 20 uH-2000 H Operating Voltage: 0.6 V rms Test Parameters: L, C, R, DCR, Q, D, θ & ESR
Colour	Red & Grey
Frequency	100 Hz, 120 Hz, 1 kHz, 10 kHz & 100 kHz
Standards	CE & UKCA
Country of origin	China
Manufacturer Details	Uni-Trend Technology (China) Co., Ltd. No.6, Gong Ye Bei 1st Road, Songshan Lake National High-Tech Industrial Development Zone, Dongguan City, Guangdong Province, China-523808
Packer Details	Uni-Trend Technology (China) Co., Ltd. No.6, Gong Ye Bei 1st Road, Songshan Lake National High-Tech Industrial Development Zone, Dongguan City, Guangdong Province, China-523808
Importer Details	Kwatra Enterprises Private Limited, 616, Old Lajpat Rai Market, Chandni Chowk, Delhi-110006
Common/Generic Name	Meter
Dimensions LxWxH	9.6x19.3x4.7 cm
Weight	0.374 kg

Show All Specifications

Product Details

The Uni-T 9V Digital Handheld LCR Meter, UT612 is a cutting-edge tool that falls within the LCR Meters category. With its sleek and user-friendly design, this meter is ideal for measuring Capacitance (C), Inductance (L), and Resistance (R). Its digital display type ensures accurate readings, while the wide resistance range of 20 Ω to 200 MΩ allows for versatile usage. The meter showcases a D/Q display count of 2000, providing precise measurements. Powered by a 9V battery, this portable device ensures convenience on the go. Compliant with CE and UKCA standards, the Uni-T UT612 features an item code of UT612, making it easy to identify. Additionally, it offers frequency options of 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz for diverse applications.
