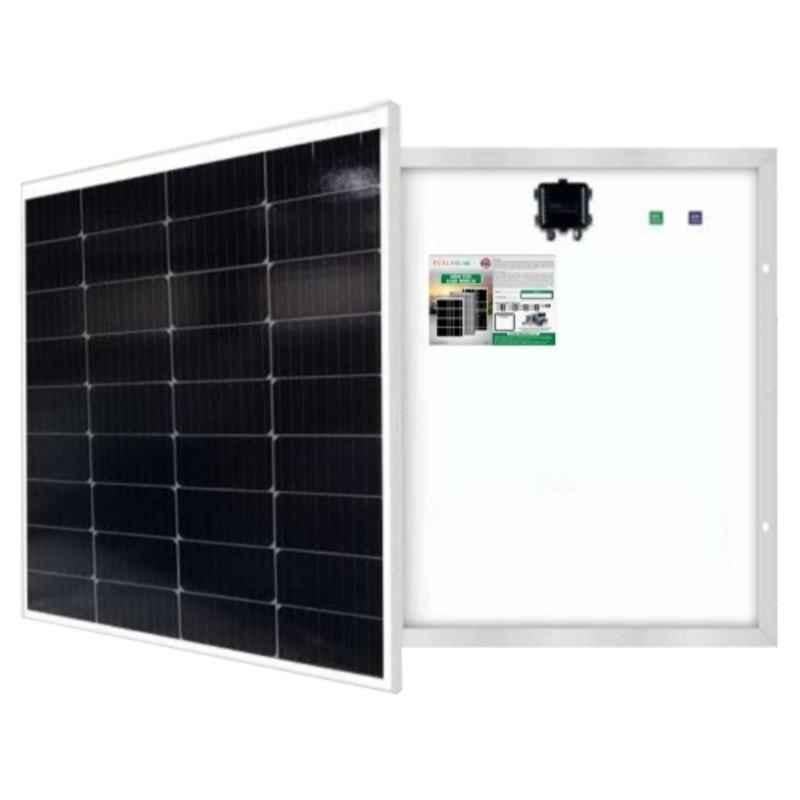

UTL 120W 12V Half Cut Mono PERC 32 Cells Solar Panel

₹4,939 (Incl. of all taxes)

₹4,703 + ₹236 GST

MRP ₹8,525 42% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • Highly Efficient Solar Panels.

  • Available in Various Power Ratings.

  • Superior Performance in All Atmospheres.

  • Anodized Aluminium Alloy Frame for Protection.

  • Excellent Power Generation Even in Low Light Irradiation.

Show All Key Features

Product Specifications

Brand
Panel Type
Half Cut Mono PERC
Rated Power
120 W
Current at Max Power (Imp)
5.71 Amp
Frame Material
>10 micron Anodized Aluminium Alloy
Fuse Rating
15 Amp
Junction Box
2 Diode
Material
Front Glass: Non ARC Coated, Tempered & Low Iron
Maximum System Voltage
1000 V DC
Module Efficiency
19.50%
Module Voltage
12 V
Mounting Holes Pitch
X: 737 mm
Y: 400 mm
Number of Cells
32
Open Circuit Voltage (VOC)
23.01 V
Protection Class
IP67
Short Circuit Current (Isc)
6.8 Amp
Temperature Coefficient
Voltage: -0.35%/deg C
Current: 0.1%/deg C
Power: -0.47%/deg C
NOCT: 47+/-2 deg C
Voltage at Max Power (Vmp)
21 V
Warranty
25 Years Performance Warranty
Country of origin
India
Manufacturer Details
Fujiyama Power Systems Pvt Ltd Registered Office:- 53A/6, Rama Road Ind. Area Near NDPL Grid Office, Delhi - 110015
Packer Details
Fujiyama Power Systems Pvt Ltd Registered Office:- 53A/6, Rama Road Ind. Area Near NDPL Grid Office, Delhi - 110015
Common/Generic Name
Solar Panel
Dimensions LxWxH
79.5x77.5x3.5 cm
Weight
6.5 kg
Show All Specifications

Product Details

The UTL 120W 12V Half Cut Mono PERC 32 Cells Solar Panel is a high-efficiency energy solution designed for both residential and commercial applications. Featuring advanced half-cut Mono PERC technology, this panel ensures better performance by reducing power loss and enhancing energy output, even in low-light conditions. With 32 high-quality cells, it provides a reliable power output of 120W, making it ideal for small to medium-sized solar installations, including off-grid setups, battery charging systems, and RVs. Its robust construction ensures durability and long-lasting performance, with excellent resistance to harsh weather conditions such as snow, wind, and extreme temperatures. The 12V configuration makes it compatible with a wide range of inverters and battery systems, offering versatility in solar energy applications. Lightweight and easy to install, the UTL solar panel is equipped with a sturdy aluminum frame and a tempered glass cover, ensuring protection against environmental damage. With an enhanced module efficiency rate, this panel maximizes the return on investment by delivering high power output, making it an eco-friendly and cost-effective option for harnessing solar energy. Whether for home use or portable energy solutions, the UTL 120W 12V Half Cut Mono PERC Solar Panel combines advanced technology, reliability, and ease of use to meet diverse energy needs efficiently.

Browse through the extensive list of Solar Panels at Moglix. Shop online for other UTL Solar Panels. available at Moglix in the lowest price range.
