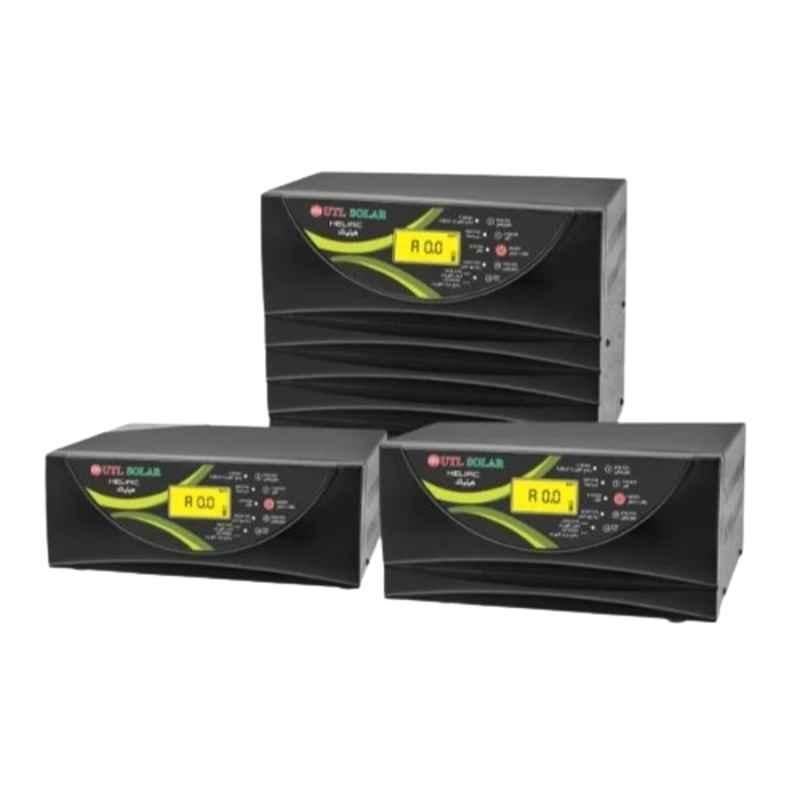

UTL 2000VA/24V Offgrid PWM Solar PCU Home, HELIAC 2500-24V

₹11,489 (Incl. of all taxes)

₹9,736 ₹1,753 GST

MRP ₹18,480 37% OFF

AVAILABLE ON REQUEST

Inverter Capacity

2000 VA
1050 VA
1500 VA
3000 VA
3500 VA
850 VA

Moglix Insights

About This Product

Key Features

Pure Sine Wave Output.
Multicolour LCD Display.
Inbuilt PWM Solar Charge Controller.
Preference to Solar Power Over Grid Power.
Solar Priority for Load & Battery Charging.
Protections: RBP, RSPV, OVL, BL, BH, S.CKT, I/P HV& LV, OHT.
Priority Selection- PCU, Smart & Hybrid for Saving Energy & Money.
Multi Charging Stage (Bulk, Absorption & Float) Auto Equalize in a Month.

Show All Key Features

Product Specifications

Brand	UTL
Additional Details	Bulb Load: 1600 W Solar VOC Range: 31-55 V Switching Element: Mosfet Nominal Grid Voltage: 230 V Max. Output Current: 4.7-6.9 Amp Grid Charging Current: 12/15 ±2 Amp
Battery Capacity	Maximum: 200 Ah
Compatible For	IT Load, SMF & Tubular Batteries & DG as an Input Source
Cooling	Fan
Efficiency	>95%
Frequency	50 & 60 Hz
Frequency Range	47-53 ±1 Hz
Inverter Capacity	2000 VA
Model	HELIAC 2500-24V
Noise	50 dB
Number of Phases	Single
Operating DC Voltage	24V
Operating Temperature	0-50 deg C
Output Waveform	Sine Wave
Protection Class	IP20
Series	HELIAC
Topology	Boost Mosfet
Warranty	2 Year
Country of origin	India
Manufacturer Details	Fujiyama Power Systems Pvt Ltd 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi-110015
Packer Details	Fujiyama Power Systems Pvt Ltd 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi-110015
Common/Generic Name	Solar PCU Home
Dimensions LxWxH	30x30.6x20.7 cm
Weight	18 kg

Show All Specifications

Product Details

UTL 2000VA/24V Offgrid PWM Solar PCU Home, HELIAC 2500-24V is a premium quality product from UTL . Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All UTL 2000VA/24V Offgrid PWM Solar PCU Home, HELIAC 2500-24V are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture UTL 2000VA/24V Offgrid PWM Solar PCU Home, HELIAC 2500-24V, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. UTL products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of UTL Solar Inverter .
