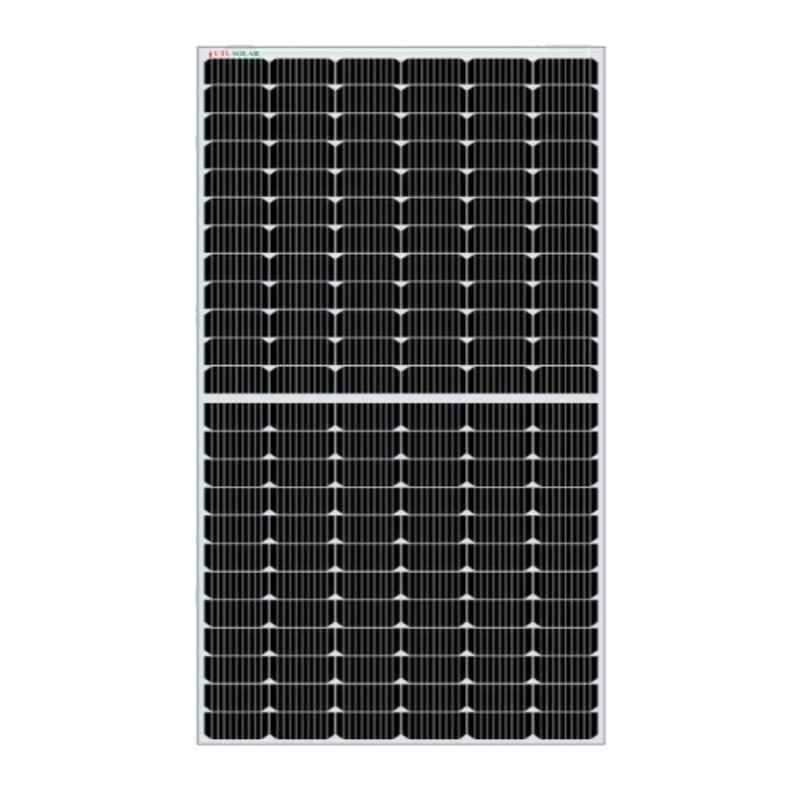

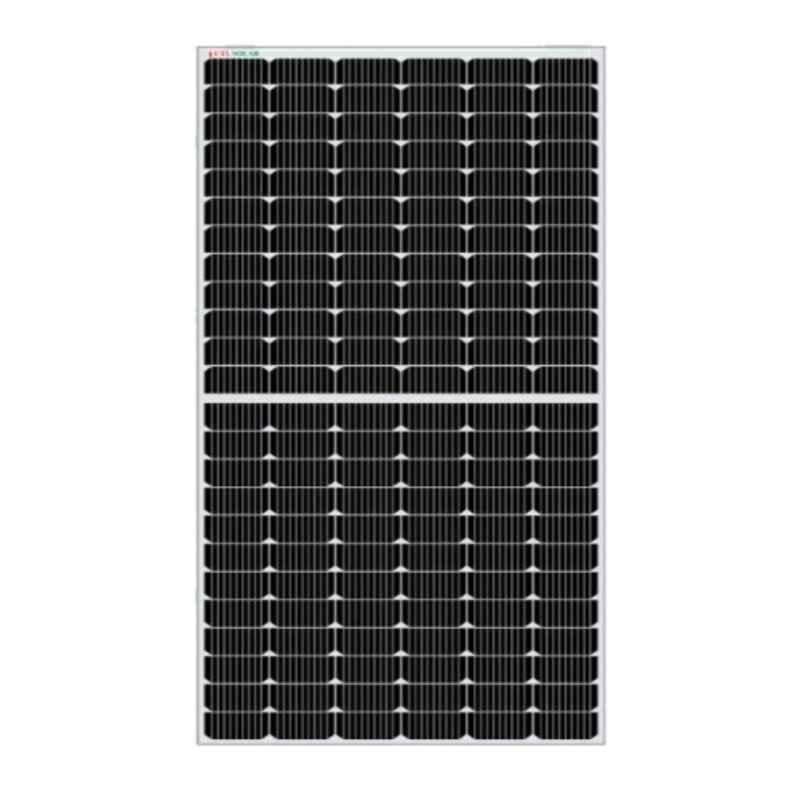

UTL 535W (Pack of 2) 24V DCR Mono PERC Bifacial 144 Cells Solar Panel

₹37,979 (Incl. of all taxes)

₹36,170 ₹1,809 GST

MRP ₹58,300 34% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • Highly Efficient Solar Panels.

  • Available in Various Power Ratings.

  • Superior Performance in All Atmospheres.

  • Anodized Aluminium Alloy Frame for Protection.

  • Excellent Power Generation Even in Low Light Irradiation.

Show All Key Features

Product Specifications

Brand
Panel Type
Mono PERC Bifacial
Rated Power
535 W
Cell Arrangement
12x6
Current at Max Power (Imp)
12.86 Amp
Frame Material
>15 micron Anodized Aluminium Alloy
Fuse Rating
25 & 30 Amp
Junction Box
Split JB
Material
Front Glass: ARC Coated, Tempered & Low Iron
Maximum System Voltage
1500 V DC
Module Efficiency
20.70%
Module Voltage
24 V
Mounting Holes Pitch
X: 1095 mm
Y: 1000 mm & 1640 mm
Number of Cells
144
Open Circuit Voltage (VOC)
49.45 V
Protection Class
IP68
Short Circuit Current (Isc)
13.71 Amp
Temperature Coefficient
Voltage: -0.35%/deg C
Current: 0.1%/deg C
Power: -0.47%/deg C
NOCT: 47+/-2 deg C
Voltage at Max Power (Vmp)
41.61 V
Warranty
25 Years Performance Warranty
Country of origin
India
Manufacturer Details
Fujiyama Power Systems Pvt Ltd Registered Office:- 53A/6, Rama Road Ind. Area Near NDPL Grid Office, Delhi - 110015
Packer Details
Fujiyama Power Systems Pvt Ltd Registered Office:- 53A/6, Rama Road Ind. Area Near NDPL Grid Office, Delhi - 110015
Common/Generic Name
Solar Panel
Dimensions LxWxH
227.7x113.3x3.5 cm
Weight
28 kg
Show All Specifications

Product Details

The Utl 535W 24V Dcr Mono Perc Bifacial Solar Panel, Available in A Pack of 2, Represents Cutting-Edge Solar Technology Designed for High Efficiency & Durability. Featuring Advanced Perc (Passivated Emitter Rear Cell) Technology, These Panels Deliver Superior Energy Conversion By Capturing More Sunlight Through Both the Front & Rear Sides, Enhancing Power Output & Overall Performance. Each Panel Boasts 144 High-Efficiency Mono-Crystalline Cells, Which Contribute to Its Impressive 535W Power Rating, Ideal for Both Residential & Commercial Solar Installations. the Bifacial Design Allows the Panel to Utilize Reflected Light From Surfaces Below, Further Increasing Energy Generation. Built with Robust Materials, the Utl 535W Panels Are Engineered to Withstand Harsh Weather Conditions, Ensuring Long-Lasting Performance & Reliability. with A 24V System Voltage, These Panels Are Well-Suited for A Variety of Solar Setups, Providing Consistent & Efficient Energy Production. the Pack of 2 Panels Offers A Scalable Solution for Expanding Solar Arrays, Making It A Practical Choice for Those Seeking to Optimize Their Renewable Energy Systems. Whether for New Installations or System Upgrades, the Utl 535W 24V Dcr Mono Perc Bifacial Solar Panels Combine High Power Output with Durability, Making Them An Excellent Investment in Sustainable Energy.

Browse through the extensive list of Solar Panels at Moglix. Shop online for other UTL Solar Panels. available at Moglix in the lowest price range.
