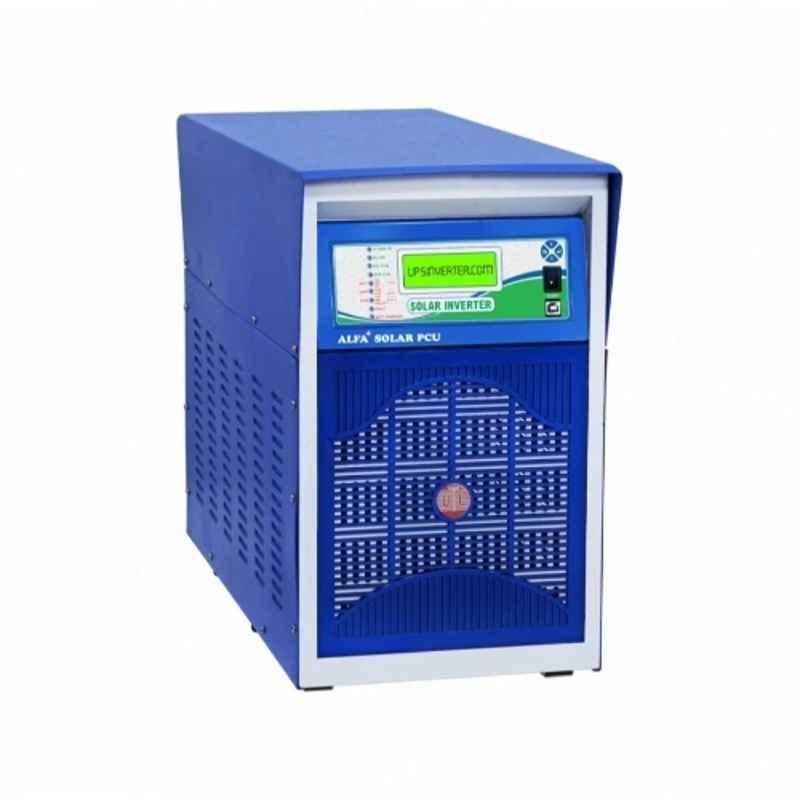

UTL 7.5 kVA/96V rMPPT Single Phase Offgrid Solar PCU, Alfa Plus PCU 896

₹78,219 (Incl. of all taxes)

₹66,287 ₹11,932 GST

MRP ₹101,304 22% OFF

AVAILABLE ON REQUEST

Operating DC Voltage

96 V
120 V

Moglix Insights

About This Product

Key Features

7.5kVA 96 V Off-Grid PCU.
RMPPT Solar Charging Tech.
Ideal for Single-phase Systems.

Product Specifications

Brand	UTL
Additional Details	Switching Element: IGBT
Cooling	Temperature Controlled & Fan
Efficiency	95%
Frequency	Nominal: 50 Hz
Input Voltage Range	160-400 V
Inverter Capacity	7.5 kVA
Load Current	27 Amp
Model	Alfa Plus PCU 896
Noise	50 dB
Number of Phases	Single
Operating DC Voltage	96 V
Operating Temperature	0-50 deg C
Output Voltage	Low: 170-190 V High: 250-260 V Nominal: 220 V AC
Output Waveform	Pure Sine Wave
Protection Class	IP21
Series	Alfa Plus
Type of Charger	rMPPT
Warranty	2 Years
Country of origin	India
Manufacturer Details	Fujiyama Power Systems Pvt Ltd 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi-110015
Packer Details	Fujiyama Power Systems Pvt Ltd 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi-110015
Common/Generic Name	Solar PCU
Dimensions LxWxH	60x32.5x57.5 cm
Weight	65 kg

Show All Specifications

Product Details

The UTL Alfa Plus PCU 896 is a 7.5 kVA single-phase offgrid solar power conditioning unit, crafted for sustainable energy independence in residential, agricultural, and commercial settings. Operating on a 96V system, it utilizes rMPPT (Rapid Maximum Power Point Tracking) technology to ensure optimal energy harvesting from solar panels, even under fluctuating sunlight conditions. This intelligent unit smartly balances power from solar, battery, and grid sources to maintain uninterrupted energy supply while prioritizing solar input, thereby reducing energy costs significantly. With built-in protections like overload, reverse polarity, and deep discharge, it safeguards both the unit and the connected appliances. Its digital display offers real-time system diagnostics, allowing users to monitor efficiency and battery status effortlessly. The PCU is designed for easy wall mounting and efficient thermal performance. Robust yet user-friendly, the Alfa Plus 896 provides a reliable, eco-friendly solution for remote areas or backup energy needs-enabling consistent operation of appliances, pumps, or lighting in the most energy-efficient manner.
