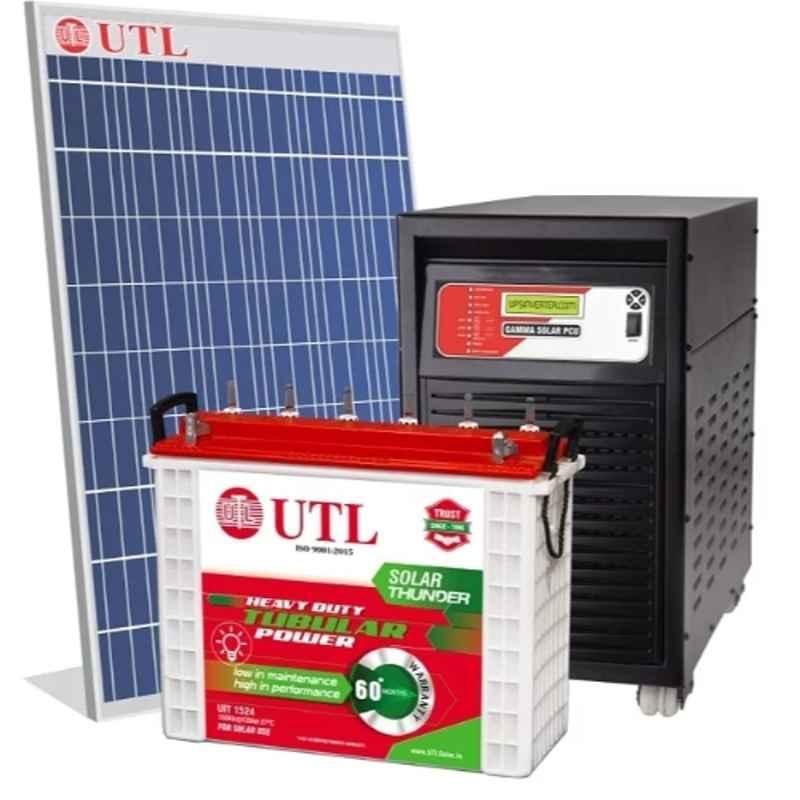

UTL UIT 1536 150Ah Heavy Duty Tubular Solar Inverter Battery, Gamma Plus 3350 3kVA 24V MPPT PCU Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel

₹131,059 (Incl. of all taxes)

₹124,818 ₹6,241 GST

MRP ₹450,473 70% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Highly Efficient Solar Panels.
Available in Various Power Ratings.
Superior Performance in All Atmospheres.
Anodized Aluminium Alloy Frame for Protection.
Excellent Power Generation Even in Low Light Irradiation.
Seamless Integration with Pcu for Grid-Independent Power Supply.
High Capacity of 3Kva for Reliable Performance In Varying Loads.
Built-In Safety Features for Protection Against Voltage Fluctuations & Overloads.
Unique Tubular Gauntlet/NAT Positive Plates Design, Superior Active Material & Special Grid Alloy.
Float Vent Plug for Electrolyte Level Indicator, Covered with HDPE Material Caps & C20 Rated Solar Battery for Better Performance.
Extremely High Life Cycle 1500 at 80% DOD, Comes with Non-Leaking Vent Plugs, High-Pressure Die Casting for a Unique Experience, Very Low Self-discharge Rate at 2mV/per Day.

Show All Key Features

Product Specifications

Brand	UTL
Additional Details	Container: IT 500 Cell Arrangement: 12x6
Battery Capacity	150 Ah
Battery Type	Tubular
Battery Voltage	12 V
Current at Max Power (Imp)	13.5 Amp
Frame Material	>15 micron Anodized Aluminium Alloy
Fuse Rating	50 Amp
Junction Box	Split JB
Material	Front Glass: ARC Coated, Tempered & Low Iron
Maximum System Voltage	1500 V DC
Model	Battery: UIT 1536 Inverter: Gamma Plus 3350
Module Efficiency	21.70%
Mounting Holes Pitch	X: 1095 mm Y: 1000 mm, 1400 mm & 1640 mm
Notes	Images are for Reference Purpose only, Actual Product May Vary
Number of Cells	144
Open Circuit Voltage (VOC)	50.38 V
Operating Voltage	24 V
Output Voltage	170-290 V
Panel Type	Half Cut Mono PERC
Power	2150 W
Power Rating	3000 VA
Protection Class	Panel: IP68
Rated Power	555 W
Short Circuit Current (Isc)	14.25 Amp
Technology	MPPT
Temperature Coefficient	Voltage: -0.35%/deg C Current: 0.1%/deg C Power: -0.47%/deg C NOCT: 47+/-2 deg C
Voltage at Max Power (Vmp)	41.12 V
Warranty	Battery: 36+24 Months
Country of origin	India
Manufacturer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Packer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Common/Generic Name	Battery, PCU & Panel
Dimensions LxWxH	21x18x6 cm
Weight	20 kg

Show All Specifications

Product Details

Introducing the UTL UIT 1536 150Ah Heavy Duty Tubular Solar Inverter Battery, Gamma Plus 3350 3kVA 24V MPPT PCU Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel, a high-performance solar combo kit perfect for harnessing the power of the sun. Powered by advanced MPPT technology, this kit ensures optimal energy conversion and utilization, maximizing your solar energy output. With a Short Circuit Current of 14.25 Amp and a remarkable Module Efficiency of 21.70%, you can rely on this kit to deliver consistent and efficient power supply. Please note that the product images are for reference purposes only and the actual product may vary. This kit comes with a convenient IT 500 container for easy storage and transportation. The battery model is UIT 1536, offering a robust 150Ah capacity. Equipped with 144 cells, the 555W Half Cut Mono PERC panel guarantees exceptional performance. Bring sustainability and energy independence into your life with the reliable and technologically advanced UTL Solar Combo Kit.
