₹56,909 (Incl. of all taxes)
₹54,199 ₹2,710 GST
MRP ₹210,944 73% OFF
Unique Tubular Gauntlet/NAT Positive Plates Design, Superior Active Material & Special Grid Alloy.
Float Vent Plug for Electrolyte Level Indicator, Covered with HDPE Material Caps & C20 Rated Solar Battery for Better Performance.
Extremely High Life Cycle 1500 at 80% DOD, Comes with Non-Leaking Vent Plugs, High-Pressure Die Casting for a Unique Experience, Very Low Self-discharge Rate at 2mV/per Day.
Multi-Colour LCD Display, Pure Sine Wave Output.
Solar Priority of Load & Battery Charging.
Preference to Solar Power Over Grid Power.
Charging Multi Stage (Bulk, Absorption & Float).
Protections: RBP, RSPV, OVL, BL, BH, S.CKT, I/P HV & LV, OHT.
Priority Selection- PCU, Smart & Hybrid for Saving Energy & Money.
Controller Based Design, Pure Sine Wave, Built in rMPPT Charge Controller.
Highly Efficient Solar Panels.
Available in Various Power Ratings.
Superior Performance in All Atmospheres.
Anodized Aluminium Alloy Frame for Protection.
Excellent Power Generation Even in Low Light Irradiation.
Brand | |
Additional Details | Noise: 50 dB Container: IT 500 PCU Switching Element: Mosfet PCU Nominal Grid Voltage: 230 V PCU Grid Charging Current: 10A/15A ±2 Amp Output Voltage: 220 ±8% V Topology: Boost Mosfet Cooling: Fan Cell Arrangement: 12x6 |
Battery Capacity | 150 Ah PCU Maximum: 200 Ah |
Battery Type | Tubular |
Battery Voltage | 12 V |
Current | Output: 4.3 Amp |
Current at Max Power (Imp) | 13.5 Amp |
Efficiency | >94% |
Frame Material | >15 micron Anodized Aluminium Alloy |
Frequency | Nominal: 50 Hz ±1% 47-53 Hz ±1 Hz |
Fuse Rating | 50 Amp |
Junction Box | Split JB |
Material | Front Glass: ARC Coated, Tempered & Low Iron |
Maximum System Voltage | 1500 V DC |
Model | Battery: UIT 1536 PCU: Gamma Plus PCU 2000 |
Module Efficiency | 21.70% |
Mounting Holes Pitch | X: 1095 mm Y: 1000 mm, 1400 mm & 1640 mm |
Notes | Images are for Reference Purpose only, Actual Product May Vary |
Number of Cells | 144 |
Number of Phases | Single |
Open Circuit Voltage (VOC) | 50.38 V |
Operating Temperature | 0-50 deg C |
Operating Voltage | 24 V |
Output Voltage | 220 V |
Panel Type | Half Cut Mono PERC |
Power | Solar: 1500 W |
Power Rating | 1500 VA |
Protection Class | PCU: IP20 Panel: IP68 |
Rated Power | 555 W |
Short Circuit Current (Isc) | 14.25 Amp |
Technology | MPPT |
Temperature Coefficient | Voltage: -0.35%/deg C Current: 0.1%/deg C Power: -0.47%/deg C NOCT: 47+/-2 deg C |
Voltage | Input: 30-106 V |
Voltage at Max Power (Vmp) | 41.12 V |
Warranty | Battery: 36+24 Months PCU: 2 Years |
Waveform | Sine Wave |
Country of origin | India |
Manufacturer Details | Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015 |
Packer Details | Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015 |
Common/Generic Name | Battery, PCU & Panel |
Dimensions LxWxH | 21x18x6 cm |
Weight | 20 kg |

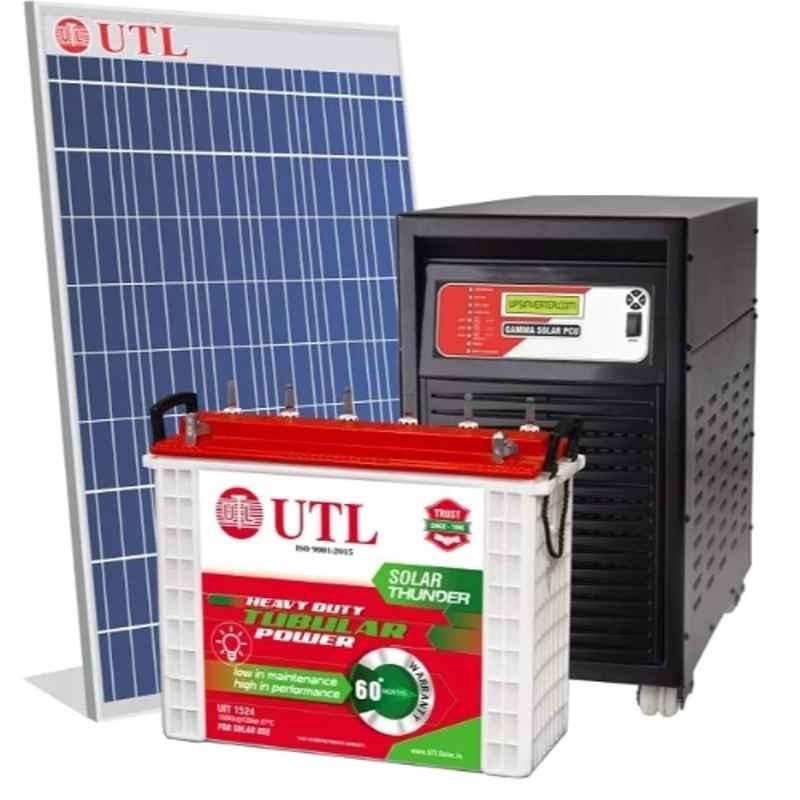

Introducing the UTL UIT 1536 150Ah Tubular Solar Inverter Battery, Gamma Plus PCU 2000 1500VA rMPPT Single Phase Offgrid Solar PCU, and 555W Half Cut Mono PERC 144 Cells Solar Panel Combo, the perfect solution for harnessing solar energy and enjoying uninterrupted power supply.
The UTL Solar Combo Kits are designed to provide you with a complete and efficient solar power system. With a brand name you can trust, UTL ensures high quality and performance. The inverter battery is built with tubular technology, offering a capacity of 150Ah and a sine wave waveform for stable and efficient power output.
The Gamma Plus PCU 2000 1500VA rMPPT Single Phase Offgrid Solar PCU boasts the latest MPPT (Maximum Power Point Tracking) technology, allowing for maximum efficiency in converting solar energy into usable electricity. It operates smoothly within a temperature range of 0-50 degrees Celsius, making it suitable for various climates.
The 555W Half Cut Mono PERC 144 Cells Solar Panel completes the combo, offering exceptional module efficiency of 21.70%. Its advanced design ensures higher energy output, even in low-light conditions. With efficiency exceeding 94%, you can rely on this solar panel to generate ample power for your needs.
Please note that the images provided are for reference purposes only, and the actual product may vary. Embrace the potential of solar energy with the UTL Solar Combo Kits and enjoy the benefits of a greener and more sustainable power source.
Browse through the extensive list of Solar Combo Kits at Moglix. Shop online for other UTL Solar Combo Kits. available at Moglix in the lowest price range.
UTL UIT 1536 150Ah Tubular Solar Inverter Battery, Gamma Plus PCU 2000 1500VA MPPT Single Phase Offgrid Solar PCU, & 555W Half Cut Mono PERC 144 Cells Solar Panel Combo
Verified Purchase
Megha
January 18, 2026
Better Tech
Using this setup for 2 months now. Solar charging is excellent even in cloudy weather. The panel is best in class and the battery backup is awesome. Total value for money!
Verified Purchase
Sakshi Malik
January 16, 2026
Superb Kit
Solar panel ki efficiency best hai. Inverter is better and works excellent. Awesome performance so far.
Displaying Questions 2 / 3
Ans:
The combo includes a 150Ah tubular solar battery.
Ans:
The kit features a 555W Half-Cut Mono PERC solar panel, which is highly efficient.
