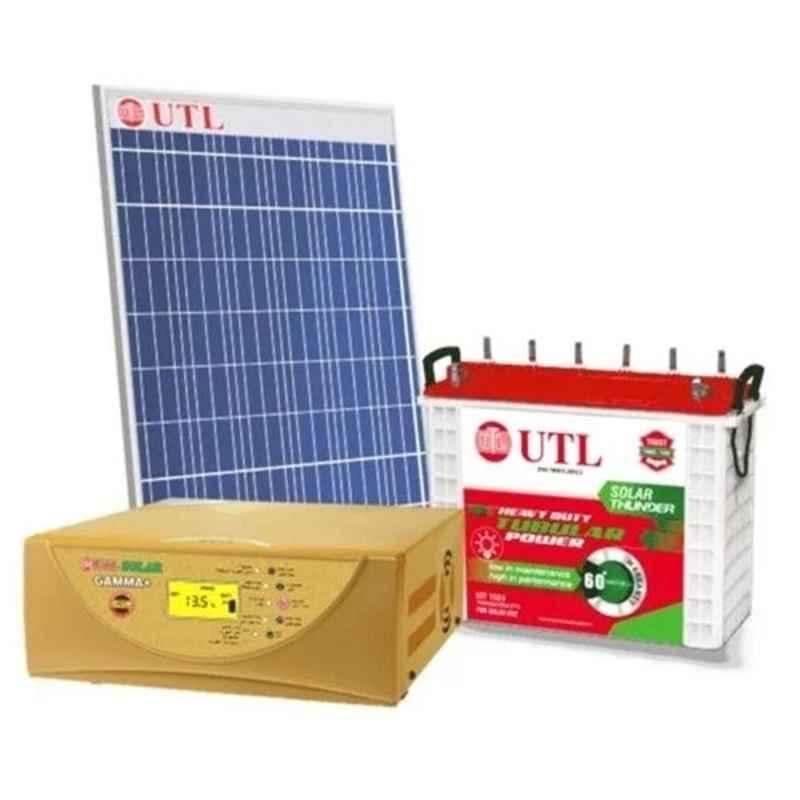

UTL UIT 2036 150Ah/12V Tubular Battery, Gamma Plus 1kVA 12V Pure Sine Wave Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel Combo

₹48,069 (Incl. of all taxes)

₹45,780 ₹2,289 GST

MRP ₹149,165 67% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Multi Charging Stage.
Controller Based Design.
Protection Against: Overload.
Built in Rmppt Charge Controller.
Protection Against: Battery Low & High.
Priority Selection Pcu, Smart & Hybrid.
Highly Efficient Solar Panels.
Available in Various Power Ratings.
Superior Performance in All Atmospheres.
Anodized Aluminium Alloy Frame for Protection.
Excellent Power Generation Even in Low Light Irradiation.
Unique Tubular Gauntlet/NAT Positive Plates Design, Superior Active Material & Special Grid Alloy.
Float Vent Plug for Electrolyte Level Indicator, Covered with HDPE Material Caps & C20 Rated Solar Battery for Better Performance.
Extremely High Life Cycle 1500 at 80% DOD, Comes with Non-Leaking Vent Plugs, High-Pressure Die Casting for a Unique Experience, Very Low Self-discharge Rate at 2mV/per Day.

Show All Key Features

Product Specifications

Brand	UTL
Additional Details	Container: IT 500 Cooling: Fan Cell Arrangement: 12x6 Load: 3 Fan, 3 CFL, 1 TV & 1 Refrigerator
Battery Backup	8 hr
Battery Capacity	150 Ah
Battery Type	Tubular
Battery Voltage	12 V
Change Over Time	5 ms
Current at Max Power (Imp)	13.5 Amp
Display Type	Digital
Efficiency	85%
Frame Material	>15 micron Anodized Aluminium Alloy
Frequency	50 Hz
Fuse Rating	50 Amp
Junction Box	Split JB
Material	Front Glass: ARC Coated, Tempered & Low Iron
Maximum System Voltage	1500 V DC
Model	Battery: UIT 1536 Inverter: Gamma Plus
Module Efficiency	21.70%
Mounting Holes Pitch	X: 1095 mm Y: 1000 mm, 1400 mm & 1640 mm
Notes	Images are for Reference Purpose only, Actual Product May Vary
Number of Cells	144
Open Circuit Voltage (VOC)	50.38 V
Operating Voltage	12 V
Panel Type	Half Cut Mono PERC
Power	1 kVA Output: 850 W
Protection Class	Panel: IP68
Rated Power	555 W
Short Circuit Current (Isc)	14.25 Amp
Technology	MPPT
Temperature Coefficient	Voltage: -0.35%/deg C Current: 0.1%/deg C Power: -0.47%/deg C NOCT: 47+/-2 deg C
Voltage	Input: 12 V DC Output: 220 V ± 8% Low Cut: 100 ± 10 V Low Cut Recovery: 110 ± 10 V High Cut: 290 ± 10 V & High Cut Recovery: 2900 ± 10 V
Voltage at Max Power (Vmp)	41.12 V
Warranty	Battery: 36+24 Months
Waveform	Sine Wave
Country of origin	India
Manufacturer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Packer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Common/Generic Name	Battery, Inverter & Panel
Dimensions LxWxH	21x18x6 cm
Weight	20 kg

Show All Specifications

Product Details

Introducing the UTL Solar Combo Kit, an all-in-one solution for your solar power needs. This combo includes the UTL UIT 2036 150Ah/12V Tubular Battery, Gamma Plus 1kVA 12V Pure Sine Wave Solar Inverter, and the powerful 555W Half Cut Mono PERC 144 Cells Solar Panel.

The UTL UIT 2036 Tubular Battery has a capacity of 150Ah/12V, providing reliable power for your solar system. With a battery backup of 8 hours, you can enjoy uninterrupted power supply even during blackouts.

The Gamma Plus 1kVA 12V Pure Sine Wave Solar Inverter ensures a smooth and stable power output, thanks to its Sine Wave waveform. This premium technology ensures the safety and longevity of your electrical appliances.

The 555W Half Cut Mono PERC 144 Cells Solar Panel is highly efficient, with a module efficiency of 21.70%. This means that it can convert more sunlight into usable energy, maximizing the power output of your solar system.

The UTL Solar Combo Kit features innovative rMPPT technology, optimizing the charging process to extract maximum power from the solar panels. It also has a digital display, providing real-time information about battery status and system performance. With an efficiency of 85%, this combo kit guarantees optimal energy conversion, saving you money on electricity bills.

Upgrade to the UTL Solar Combo Kit and harness the power of the sun to meet your energy needs sustainably and efficiently.
