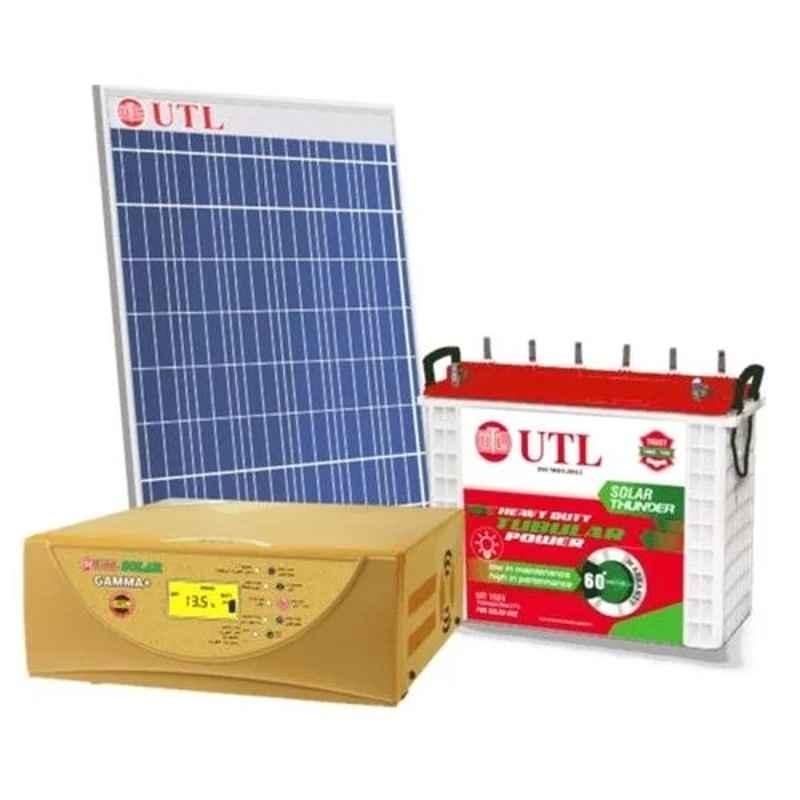

UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus 1kVA 12V Pure Sine Wave Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel Combo

₹51,529 (Incl. of all taxes)

₹49,075 ₹2,454 GST

MRP ₹155,505 66% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Multi Charging Stage.
Controller Based Design.
Protection Against: Overload.
Built in Rmppt Charge Controller.
Protection Against: Battery Low & High.
Priority Selection Pcu, Smart & Hybrid.
Low Maintenance & Efficient.
Long Life with Deep Cycle Performance.
Robust Tubular Design for Durability.
Highly Efficient Solar Panels.
Available in Various Power Ratings.
Superior Performance in All Atmospheres.
Anodized Aluminium Alloy Frame for Protection.
Excellent Power Generation Even in Low Light Irradiation.

Show All Key Features

Product Specifications

Brand	UTL
Additional Details	Cooling: Fan Cell Arrangement: 12x6 Load: 3 Fan, 3 CFL, 1 TV & 1 Refrigerator
Battery Backup	8 hr
Battery Capacity	200 Ah
Battery Type	Tubular
Battery Voltage	12 V
Change Over Time	5 ms
Current at Max Power (Imp)	13.5 Amp
Display Type	Digital
Frame Material	>15 micron Anodized Aluminium Alloy
Frequency	50 Hz
Fuse Rating	50 Amp
Junction Box	Split JB
Material	Front Glass: ARC Coated, Tempered & Low Iron
Maximum System Voltage	1500 V DC
Model	Battery: UIT 2036 Inverter: Gamma Plus
Module Efficiency	21.70%
Mounting Holes Pitch	X: 1095 mm Y: 1000 mm, 1400 mm & 1640 mm
Notes	Images are for Reference Purpose only, Actual Product May Vary
Number of Cells	144
Open Circuit Voltage (VOC)	50.38 V
Operating Voltage	12 V
Panel Type	Half Cut Mono PERC
Power	1 kVA Output: 850 W
Protection Class	Panel: IP68
Rated Power	555 W
Short Circuit Current (Isc)	14.25 Amp
Technology	MPPT
Temperature Coefficient	Voltage: -0.35%/deg C Current: 0.1%/deg C Power: -0.47%/deg C NOCT: 47+/-2 deg C
Voltage	Input: 12 V DC Output: 220 V ± 8% Low Cut: 100 ± 10 V Low Cut Recovery: 110 ± 10 V High Cut: 290 ± 10 V & High Cut Recovery: 2900 ± 10 V
Voltage at Max Power (Vmp)	41.12 V
Warranty	Battery: 36+24 Months
Waveform	Sine Wave
Country of origin	India
Manufacturer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Packer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Common/Generic Name	Battery, Inverter & Panel
Dimensions LxWxH	21x18x6 cm
Weight	20 kg

Show All Specifications

Product Details

Introducing the UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus 1kVA 12V Pure Sine Wave Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel Combo, the perfect solution for your solar power needs. This Solar Combo Kit from UTL combines high-quality components to provide you with a reliable and efficient solar energy system.

The UTL UIT 2036 200Ah/12V Tubular Battery ensures long-lasting power storage with its 200Ah capacity and 12V output. With a battery backup of 8 hours, you can rely on this tubular battery to keep your solar energy system running smoothly even during the night or on cloudy days.

The Gamma Plus 1kVA 12V Pure Sine Wave Solar Inverter guarantees a clean and stable power output. With a sine wave waveform, it ensures efficient energy conversion, providing reliable power for your appliances. The digital display makes it easy to monitor and manage your solar energy system.

The 555W Half Cut Mono PERC 144 Cells Solar Panel boasts a high module efficiency of 21.70%, maximizing the conversion of sunlight into electricity. Equipped with rMPPT technology, it optimizes the power output and efficiency of the solar panel, allowing you to harness more energy from the sun. The short circuit current (Isc) of 14.25 Amp ensures a steady flow of energy from the solar panel to the battery.

Please note that the images provided are for reference purposes only, and the actual product may vary. Choose UTL for a reliable, efficient, and high-performing solar energy system.
