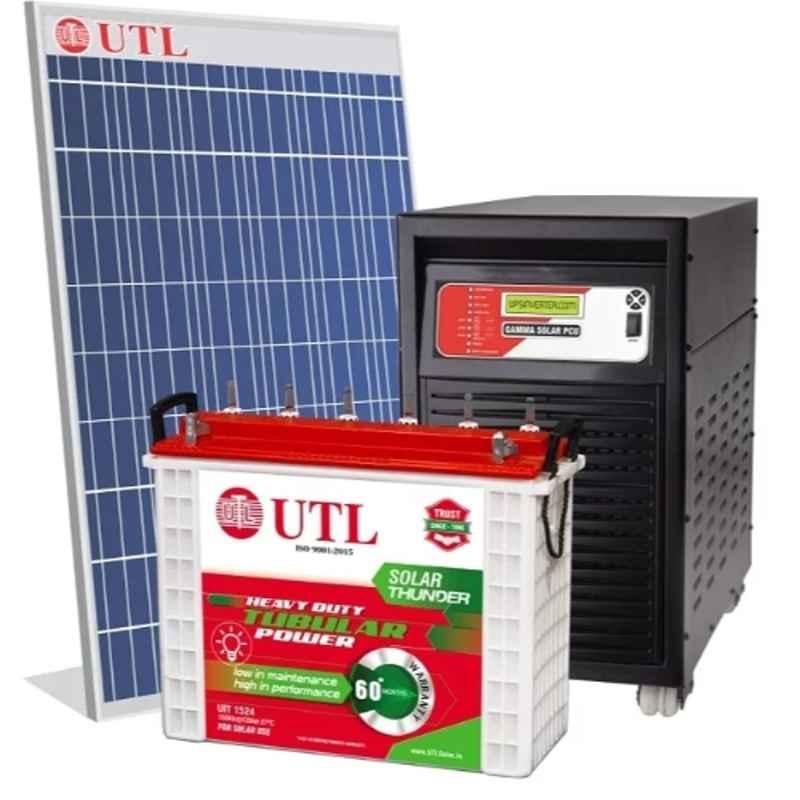

UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus 3350 3kVA 24V MPPT PCU Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel

₹144,709 (Incl. of all taxes)

₹137,818 ₹6,891 GST

MRP ₹475,833 69% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Seamless Integration with Pcu for Grid-Independent Power Supply.
High Capacity of 3Kva for Reliable Performance In Varying Loads.
Built-In Safety Features for Protection Against Voltage Fluctuations & Overloads.
Low Maintenance & Efficient.
Long Life with Deep Cycle Performance.
Robust Tubular Design for Durability.
Highly Efficient Solar Panels.
Available in Various Power Ratings.
Superior Performance in All Atmospheres.
Anodized Aluminium Alloy Frame for Protection.
Excellent Power Generation Even in Low Light Irradiation.

Show All Key Features

Product Specifications

Brand	UTL
Additional Details	Cell Arrangement: 12x6
Battery Capacity	200 Ah
Battery Type	Tubular
Battery Voltage	12 V
Current at Max Power (Imp)	13.5 Amp
Frame Material	>15 micron Anodized Aluminium Alloy
Fuse Rating	50 Amp
Junction Box	Split JB
Material	Front Glass: ARC Coated, Tempered & Low Iron
Maximum System Voltage	1500 V DC
Model	Battery: UIT 2036 Inverter: Gamma Plus 3350
Module Efficiency	21.70%
Mounting Holes Pitch	X: 1095 mm Y: 1000 mm, 1400 mm & 1640 mm
Notes	Images are for Reference Purpose only, Actual Product May Vary
Number of Cells	144
Open Circuit Voltage (VOC)	50.38 V
Operating Voltage	24 V
Panel Type	Half Cut Mono PERC
Power	2150 W
Power Rating	3000 VA
Protection Class	Panel: IP68
Rated Power	555 W
Short Circuit Current (Isc)	14.25 Amp
Technology	MPPT
Temperature Coefficient	Voltage: -0.35%/deg C Current: 0.1%/deg C Power: -0.47%/deg C NOCT: 47+/-2 deg C
Voltage at Max Power (Vmp)	41.12 V
Warranty	Battery: 36+24 Months
Country of origin	India
Manufacturer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Packer Details	Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Common/Generic Name	Battery, PCU & Panel
Dimensions LxWxH	21x18x6 cm
Weight	20 kg

Show All Specifications

Product Details

The UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus 3350 3kVA 24V MPPT PCU Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel is a powerful solar combo kit designed to harness the sun's energy efficiently. With the superior MPPT technology, this kit ensures maximum power generation by tracking and optimizing the solar panel's output. The Gamma Plus 3350 3kVA 24V MPPT PCU Solar Inverter offers reliable and efficient power conversion, while the 555W Half Cut Mono PERC 144 Cells Solar Panel delivers high-performance solar energy conversion with a module efficiency of 21.70%. The UTL brand, known for its advanced solar solutions, guarantees the quality and durability of this kit. Please note that the product images provided are for reference purposes only, and the actual product may vary. The battery model, UIT 2036, features a robust tubular design and a capacity of 200Ah/12V, ensuring consistent power backup. The solar panel consists of 144 cells arranged in a 12x6 configuration, providing ample solar energy for your requirements. Upgrade your solar power system with the reliable UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus 3350 3kVA 24V MPPT PCU Solar Inverter & 555W Half Cut Mono PERC 144 Cells Solar Panel.
